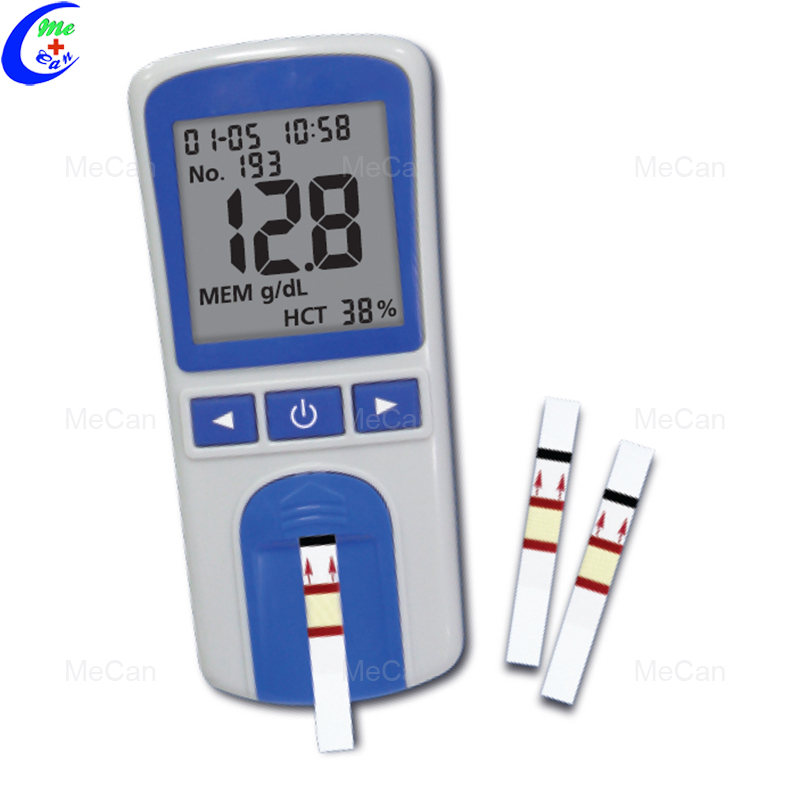

Hemoglobin Testing System
Hemoglobin Testing System
Model:MCL-HM01
Features:
Quick
Hemoglobin (HIS) and Hematocrit (Hct) results in<15 seconds
Simply insert strip, apply specimen and read results
Features auto-calibration for added convenience
No specimen preparation required
Low maintenance and quick clean up
Accurate
Only 10μL capillary or venous blood required
Precise results equivalent to automatic hematology analyzers
Wide Hb measurement range of 4.5-25.6 g/dL with Hct range of 13-75%
Stores up to 1,000 results
Portable
Operated by battery or optional AC adapter
Small and handheld for immediate diagnosis
Ready to use in any point of care setting
Dry strips eliminate inconvenience in shipping and storage of liquid reagents
Convenient
Can test capillary and venous whole blood
Minimal training required
Easy to read large LCD
Quick data transfer via Mini USB port
Specification:
Feature | Technical Specification |
Methodology | Reflectance Photometry |
Detection Principle | Methemoglobin |
Time to Results | <15 seconds |
Memory | 1.000 tests with date/time and ID number |
Specimen Volume | 10μL |
Specimen Type | Capillary and Venous whole blood |
Hb Measurement Range | 4.5-25.6 g/dL |
Hct Range | 13-75% |
Wavelengths | 525 nm |
PC Interface | Mini USB Port |
Calibration | Automatic |
Hb Within Run Provision CV | ≤3% |
Hb Total Precision CV | ≤3% |
Accuracy | Hb 4.5- 10 g/dL 0.4 g/dL; Hb 10-25.6g/dL 4% |
Ambient Operating Conditions | 10.40°C (50-104F); ≤85%RH |
Optimum Operating Conditions | 15.30°C (59-86F); ≤85%RH |
Meter Storage Conditions | 0-50°C (32-122F); ≤90% RH |
Strip Storage Conditions | 2-30°C (36-86F): ≤85% RH |
Strip Shell Life | 2 years unopened canister; 3 months opened canister |
Power Source | 3 AAA Batteries or AC Adaptor |
Battery Life | 2.700 tests or 360 hours |
Automatic Shut Off | 8 minutes |
Line Leakage Current | 3 uA |
Motor Dimensions (L X W X H) | 127 mm x58mmx25mm (5.0“x 2.28"x 0.09”) |
LCD Dimensions (L X W ) | 39 men x 37 mm (1.54“x 1.46”) |
