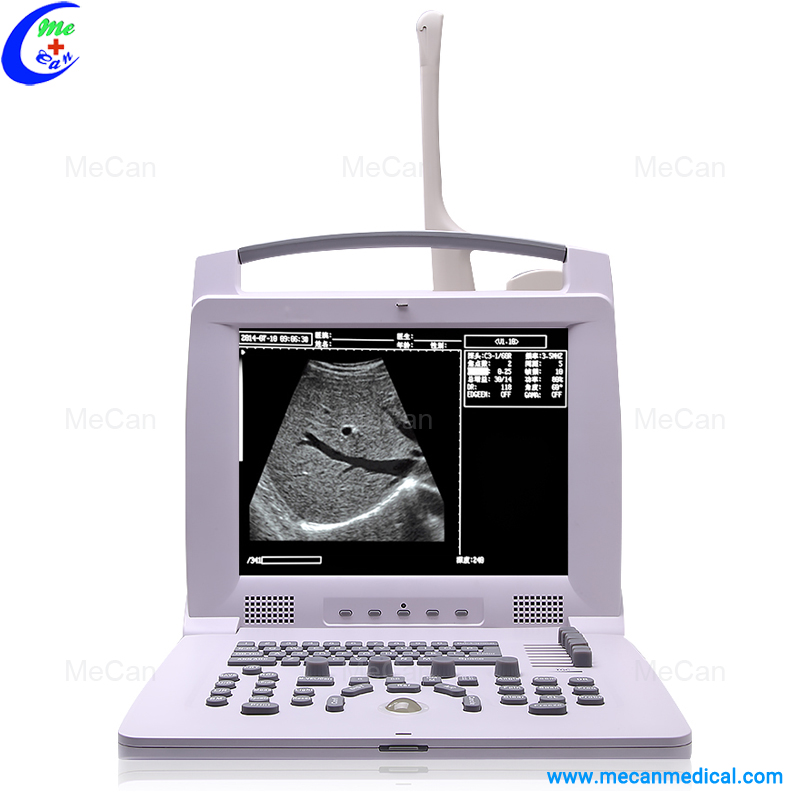

Full Digital Portable Ultrasound Scanner

Full Digital Portable Ultrasound Scanner

What is features of our Full Digital Portable Ultrasound Scanner?
12.1 inch high resolution monitor
More than 100 image permanent storage
8 segments digital TGC
2 probes sockets , support several optional probes
Easy to operate and carry
Measurement: distance, circumference, area, volume, heart rate, GA, FW, EDD.

What is specifications of our Full Digital Portable Ultrasound Scanner?
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Display mode: B, B+B, B+M, 4B.
Image gray scale: 256 level.
Cine loop: 809 frame (max).
Image storage: 32 frames.
Scan angle: adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: up/down, left/right, black/white.
Focus position: adjustable.
Focal space: 5 level.
Measurement: distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: date, time, name. sex, age, doctor, hospital name. Full screen words edit.
Output report: 2 type.
Posture mark: ≥40.
Video output: PAL-D, VGA.
Power Supply: AV220V±22V, 50MHz±1MHz.
Machine dimension (mm): 320*165*290

Standard Configuration:
•Scanner Body: 1pc

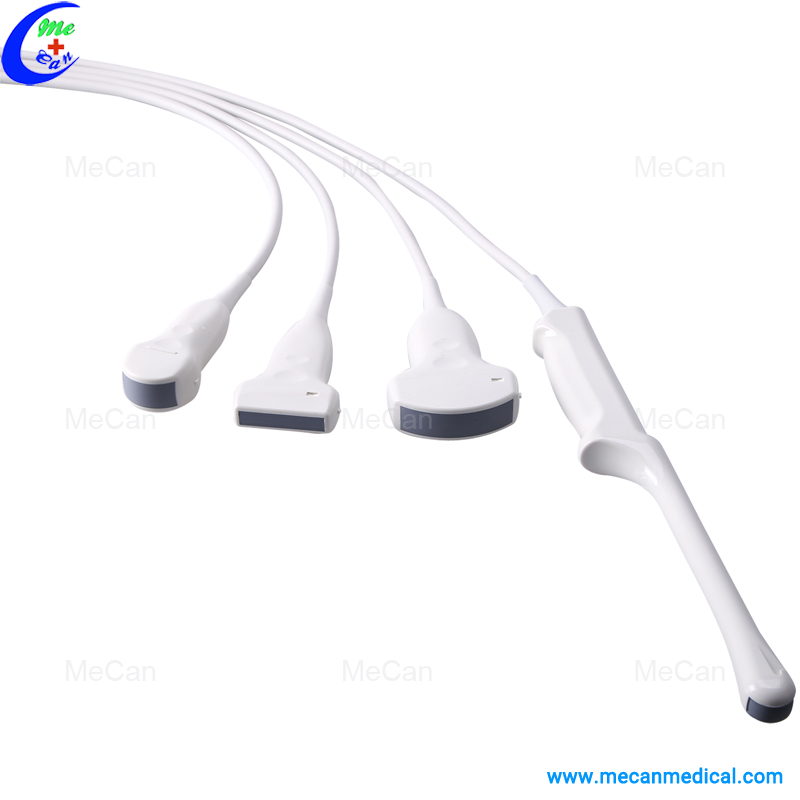

•3.5Mhz Convex Probe: 1pc
•Charger with a Set of wires: 1set
•Bottle of USG gel: 1pc
•User Manual: 1pc

Optional:
•5.0MHz Micro-convex Probe
•6.5MHz Trans-vaginal Probe
•7.5MHz Linear Probe
•Video Printer
•Trolley
