Portable Medical Emergency Ventilator Machine

Payment:
L/C, T/T, Western Union, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCS-V01

    Transport Small Portable Medical Ventilator Machine

    Features

    1.It is lightweight,durable and simple to use.

    2.Ventilation frequency and tidal volume can be adjusted in succession and separately.

    3.Manual trigger button used during CPR.

    4.Airway pressure can be shown directly by the airway manometer.

    5.Automatic pressure relief valve will work when airway pressure reaches 6KPa.

    6.Unique air-oxygen mixer prolongs the operating time during long-time transportation.

    7.Audible low input pressure alarm and over input pressure protection.

    8.Assistant breathing ventilation(it will work when the patient has spontaneous breath).

    Specification

    Breathing mode IPPV,A/C,Manual
    Ventilation volume 2-24L/min
    Ventilation frequency 10-60bpm(adjustable in succession)
    I/E ration   1:2
    Oxygen concentration ≤60%
    Reverse flow pressure of airway ≤6KPa
    Demand breathing trigger ≤-1KPa
    Low pressure alarm ≤0.25MPa
    Oxygen cylinder volume 2.8L
    Oxygen cylinder storage pressure 20MPa
    Continuous working time of oxygen cylinder About 90 minutes
    Dimension of the ventilator 210×88×70mm
    All specifications are subject to a tolerance of +/-15%.

    Kits

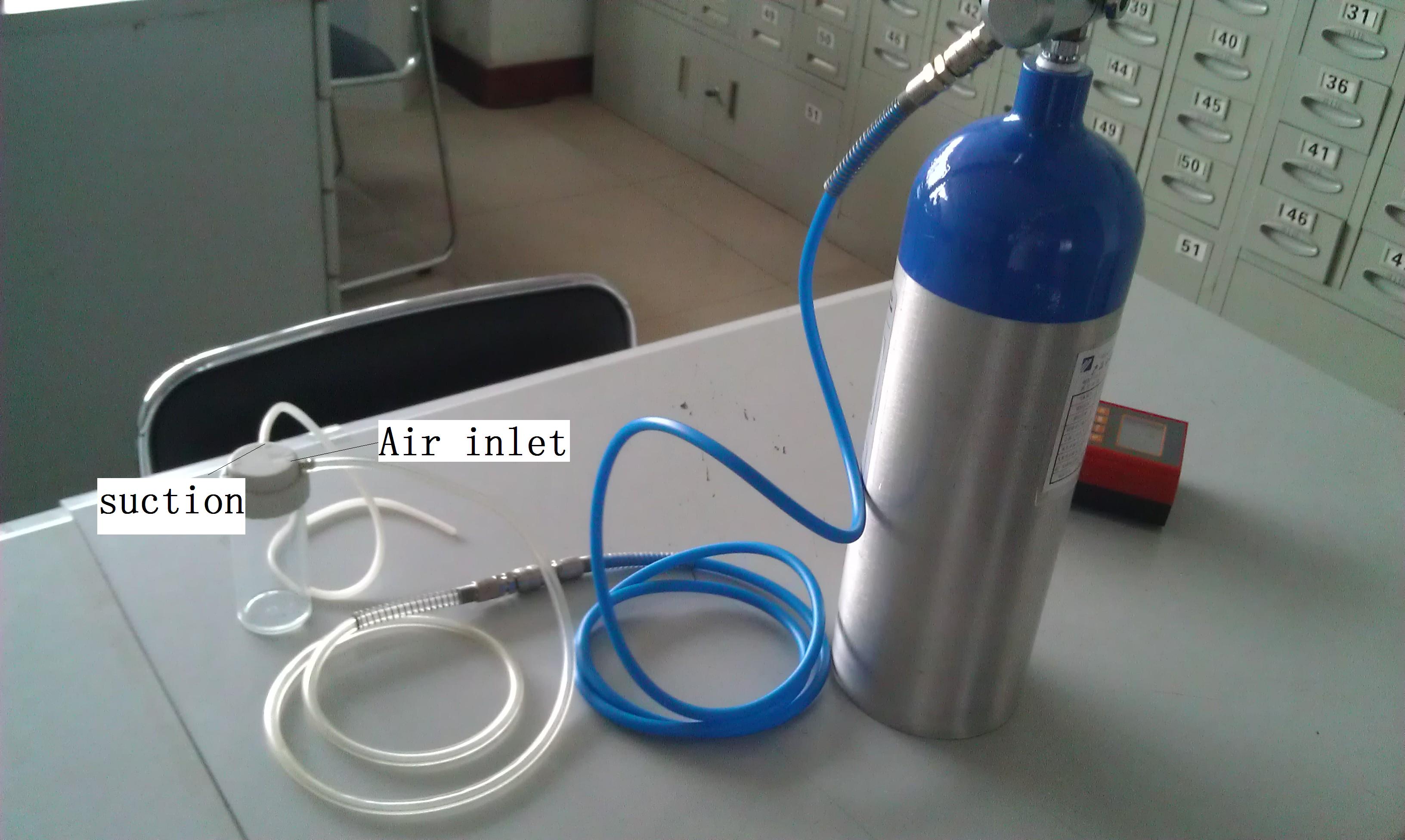

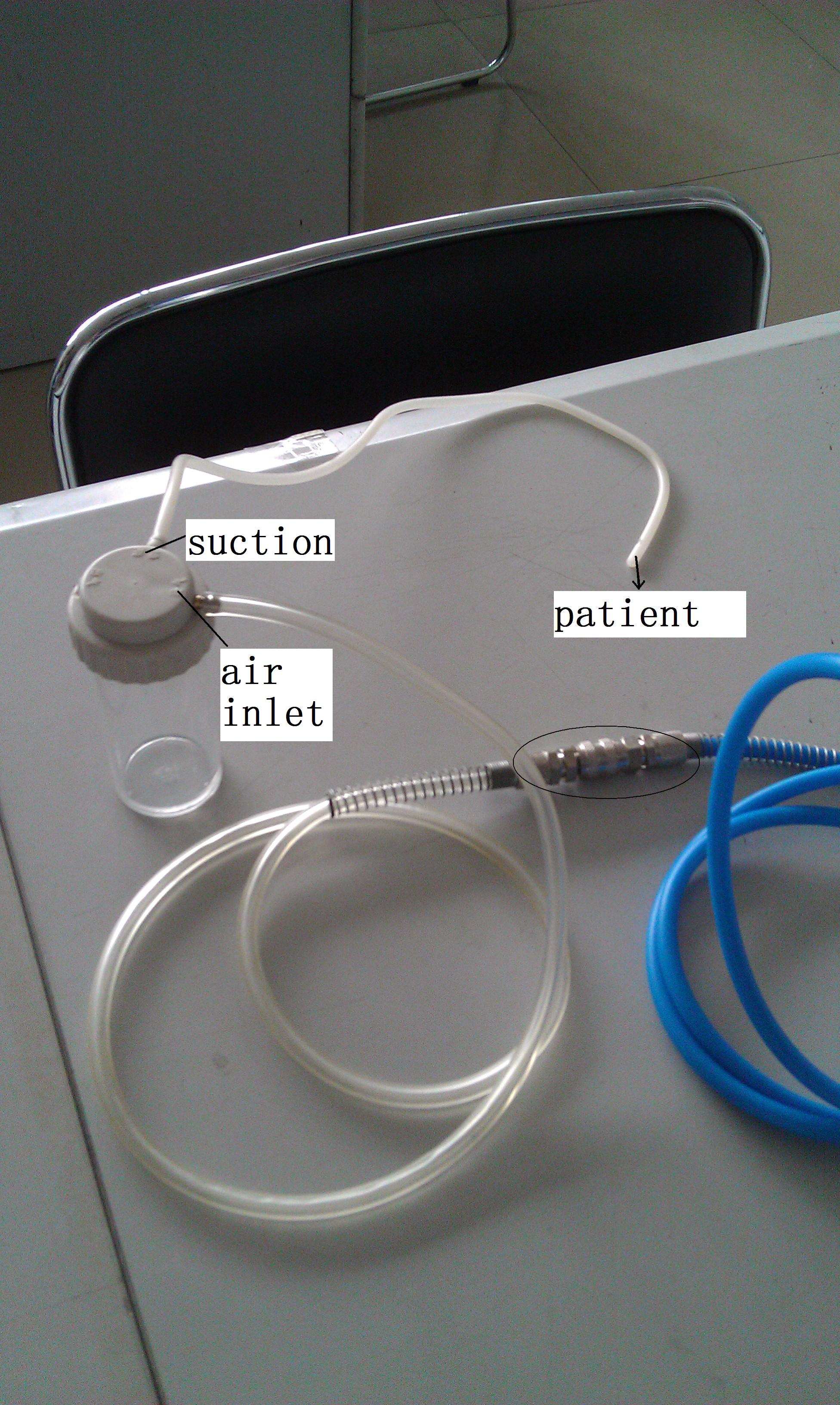

    Ventilator(including air-oxygen mixer,automatic airway pressure relief valve),oxygen cylinder,regulator,face mask,laryngoscope,endotracheal tube,suction device,suction union pipe,airway opener,oxygen refill fitting,oxygen supply extension pipe,wrench,portable nylon bag or hard case.
