EKG Machines 12 Lead 12 Channel ECG Machine

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCS-ECG09

    EKG Machines 12 Lead 12 Channel ECG Machine

    Main Features

    1.Portable and delicate design, big touch screen, very easy to operate

    2.Accurate pulse pace identification function

    3.High accuracy digital filter, automatic baseline adjustment

    4.Working modes: Manual, Automatic, Arrythmia Analysis, Storage

    5.215mm, 12 channel format recording, excellent automatic interpretation

    6.800x480 graphic 10 inch color touch LCD to simultaneously display ECG information

    7.250 patient cases storage ( SD card storage is optional )

    8.Detailed patient information record

    9.Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery continuously working for about 4 hours

    10.USB / Rs232 communication port support USB storage, laser printer printing and PC ECG software ( Optional )

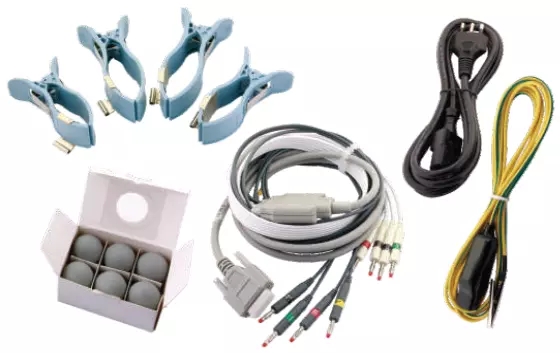

    Standard Configuration

    EKG Machines 12 Lead 12 Channel ECG Machine 6

    Main unit 1set

    Patient cable

    1set
    Limb electrodes 1set (4pcs)
    Chest electrodes 1set (6pcs)
    Power cable 1pc
    Grounding cable 1pc
    Fuse 2pcs
    Paper axis 1pc
    Printing paper 1roll
    Operation manual 1copy

    Specification

    Lead Standard 12 leads
    lead acquisition Manual / Auto / Physical Examination / Storage
    Work mode MAN,AUTO,ANALYSIS Modes
    Filter AC Filter : 50Hz / 60Hz
    EMG Filter : 25Hz / 45Hz
    Anti-Drift Filter : 0.15Hz (Adaptive)
    CMMR ≥100dB (with AC FILTER)
    Input circuit Floating; Protection circuit against Defibrillator effect
    Input Impedance ≥50MΩ
    Input circuit current ≤0.05μA
    Patient current leakage <10μA
    Calibrating voltage 1mV±2%
    Voltage tolerance ≥±500mV
    Time constant ≥3.2s
    Frequency response 0.05~160Hz(-3db)
    Noise level <15μVp-p
    Inter-channel Interference ≤0.5mm
    Sensitivity 5,10,20mm/mV
    Recording mode 3ch+++,6ch,6ch+,12ch
    Default Man. Mode is  3ch+  format
    Default Auto. Mode is  12ch format
    Paper speed 6.25,12.5,25,50mm/s (±3%)
    Paper  215 mm Roll  / 210×140mm Z-fold paper
    Communication RS232/ USB port
    Power Supply AC 110-230V(±10%), 50/60Hz (±1Hz),60VA
    DC Built-in rechargeable battery,14.4V(4400mmAh)
    Dimension/Weight 330mm×270mm×72mm/3.8Kg
