ECG Machine
ECG-1230T digital 12 channel Bluetooth ECG printer 1
ECG-1230T digital 12 channel Bluetooth ECG printer 1

ECG-1230T digital 12 channel Bluetooth ECG printer

    ECG-1230T digital 12 channel Bluetooth ECG printer

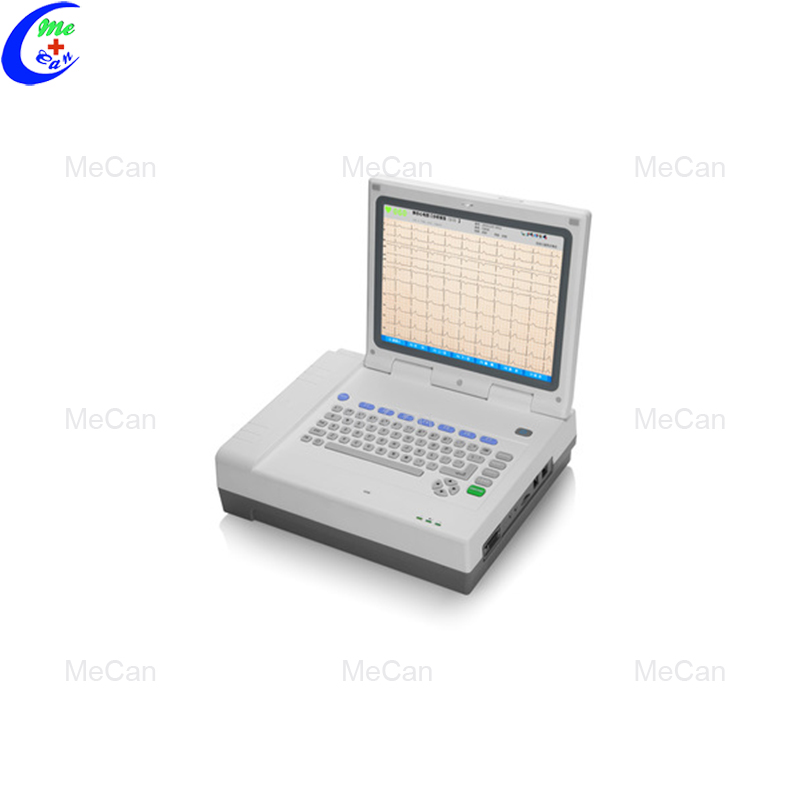

    ECG-1230T digital 12 channel Bluetooth ECG printer 2

    ECG-1230T digital 12 channel Bluetooth ECG printer

    Input circuit Isolated input circuit
    Print Format Automatic/Manual: 6 channel, 12 channel  Neutral value+Rhythm lead
    Operation mode Auto: Automatic lead change: automatic measurement and interpretation  MAN: Manual lead change
    Frequency response 0.05Hz ~ 100Hz
    CMRR >60dB, >100dB(AC filter in use)
    Time constant ≥ 3.2s
    Patient leak current <10µA
    Calibration voltage 1mV±5%
    Sensitivity
    2.5, 5, 10, 20 mm/mV ±3%
    Noise leve <15µVp-p
    Input impedance >50MΩ
    Recording mode thermal printing system
    Thermal printer  8 dot/mm(Vertical)  32 dot/mm(Horizontal, 25mm/s)
    Measurement parameters Ventricle heart rate, P-R interval, QRS Duration,  QT/QTC interval, P/QRS/T axis ,  RV5, SV1, RV5/SV1 amplitude
    Filter AC filter,EMC filter,DFT filter
    Paper size 210mm(W)×30m(L)
    Skin voltageTolerance  ±500mV
    Papar speed  6.25, 12.5, 25, 50mm/s

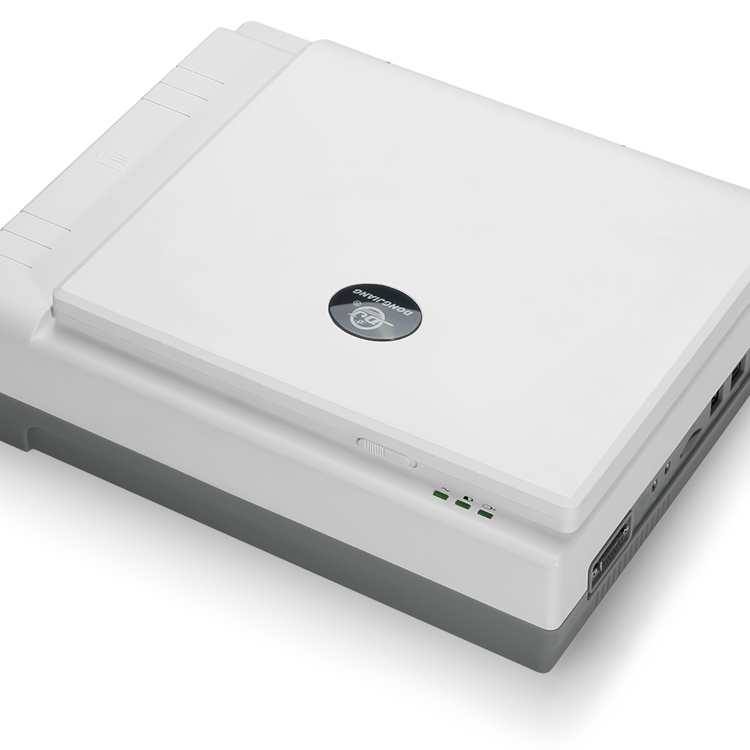

    ECG-1230T digital 12 channel Bluetooth ECG printer 3

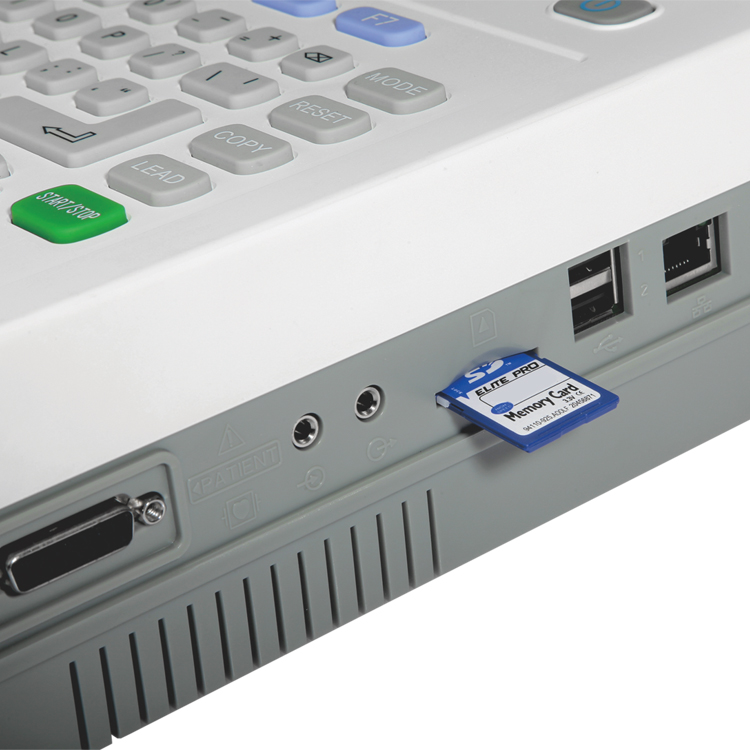

    ECG-1230T digital 12 channel Bluetooth ECG printer 4

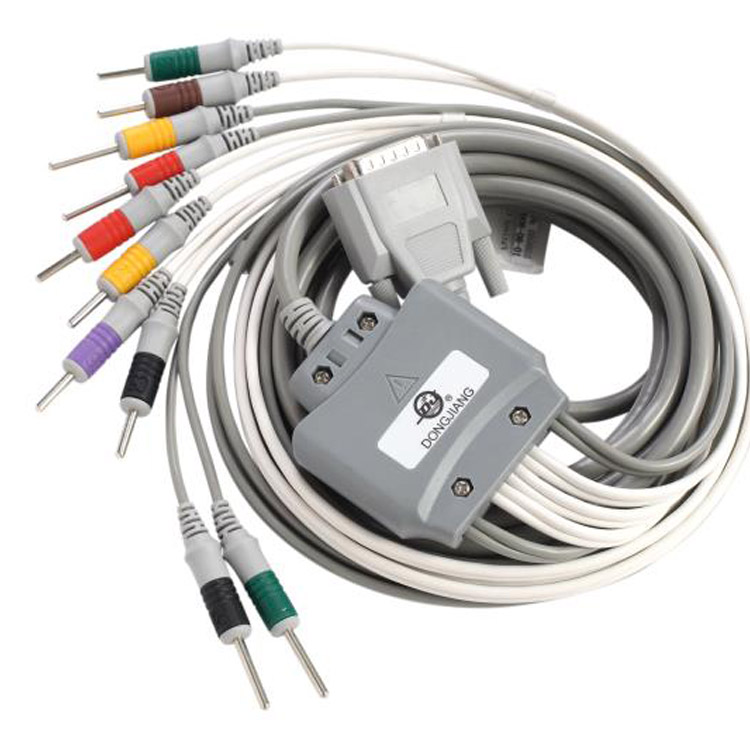

    ECG-1230T digital 12 channel Bluetooth ECG printer 5

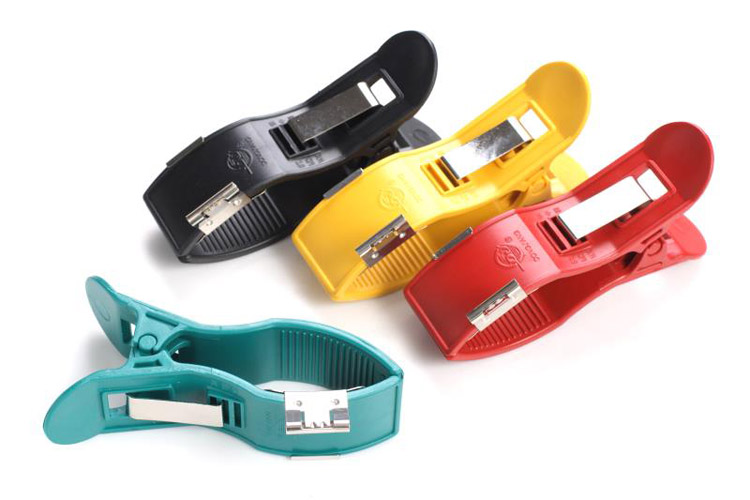

    ECG-1230T digital 12 channel Bluetooth ECG printer 6
