1. Be applicable of hemodialysis treatment,hemoperfusion,Plasma Exchange,Pure ultrafiltration project.
2. Touch screen was equipped and it can show Naand UF profiles;In addition,the functions ie.backup power supply,Kt/V,HCO3 adjustment,single needle,acetate treatment,pyrogen filter port and net connection ect.are optional.
√ Hemodialysis Therapy
√ Pure ultrafiltration Therapy
√ Hemoperfusion Therapy
√ Plasma exchange Therapy
√ Na+and UF profiling
Be applicable for reducing the cases during dialysis treatment such as low/high pressure,muscle convulsion, headache,nausea,vomit ect.
The sufficiency of dialysis can be reflected by Kt/V.
HCO3 adjustment function:
Be applicable for sericous acid toxicosis patient.
Be capable to calibrate the acid toxicosis status according to patient's state of illness.
It can last for 15-30 minutes after power cut off.
Pyrogen filter port
Completely filtrating the remained bacteria and endotoxin.(optional)
One computer can audit and control the treatment of maximum 20 units hemodialysis machine (optional)

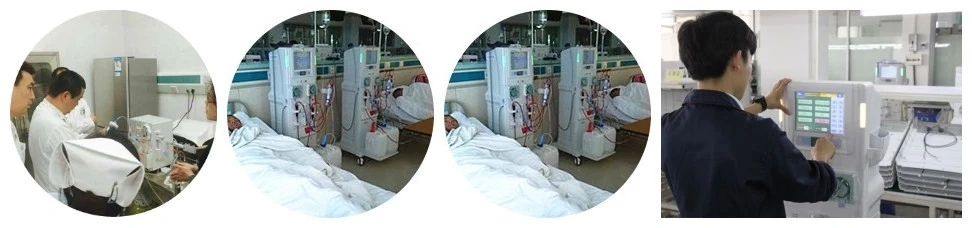

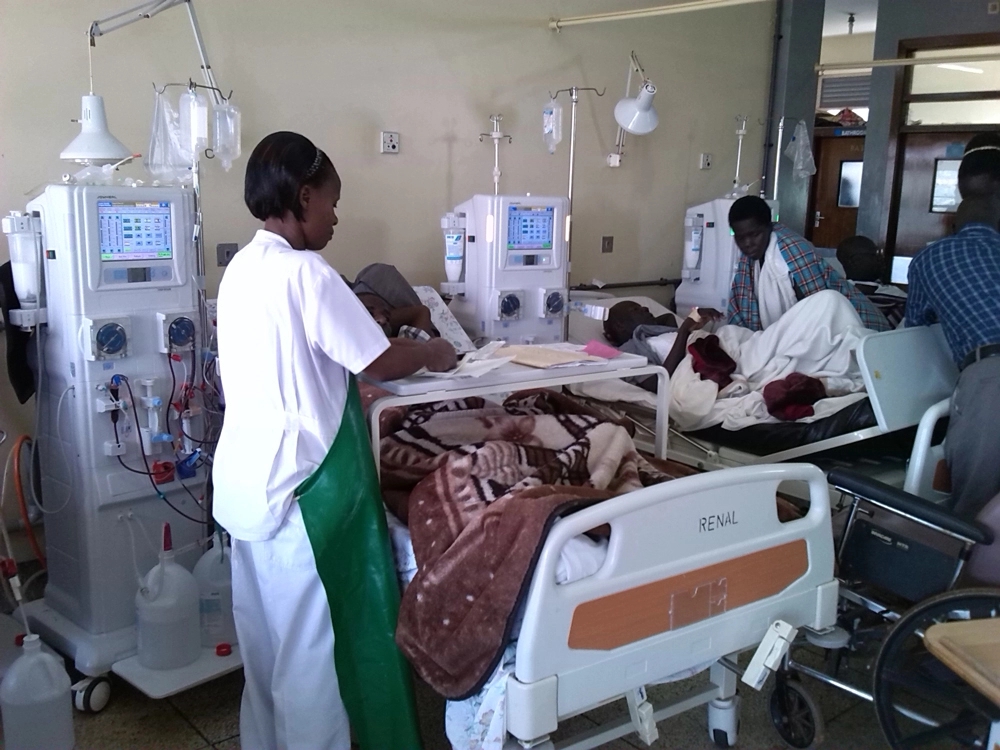

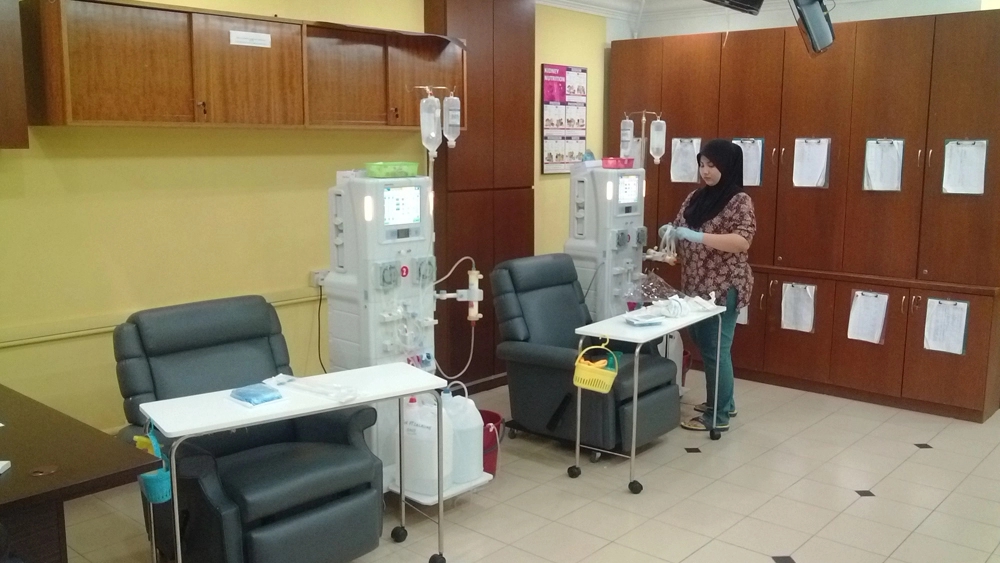

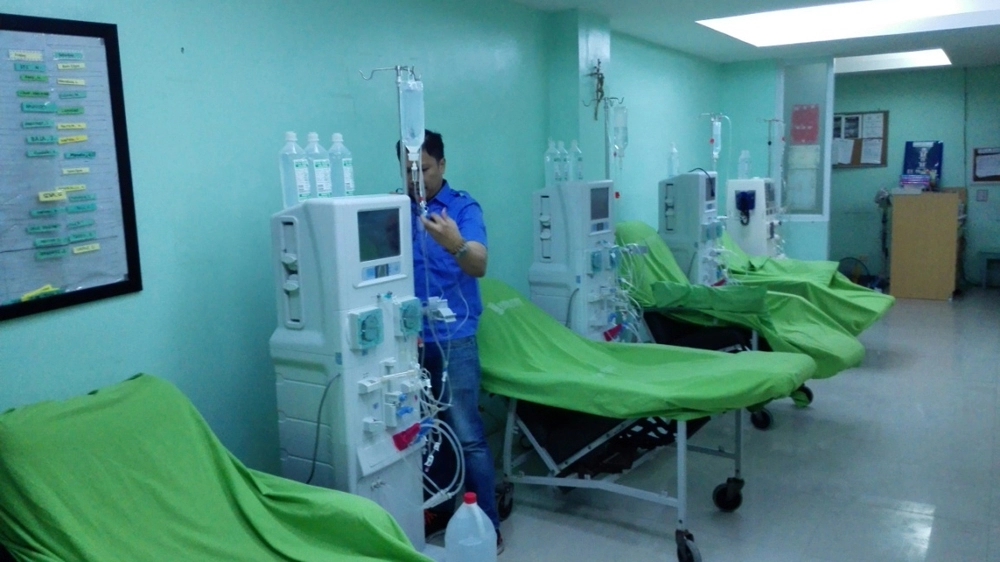

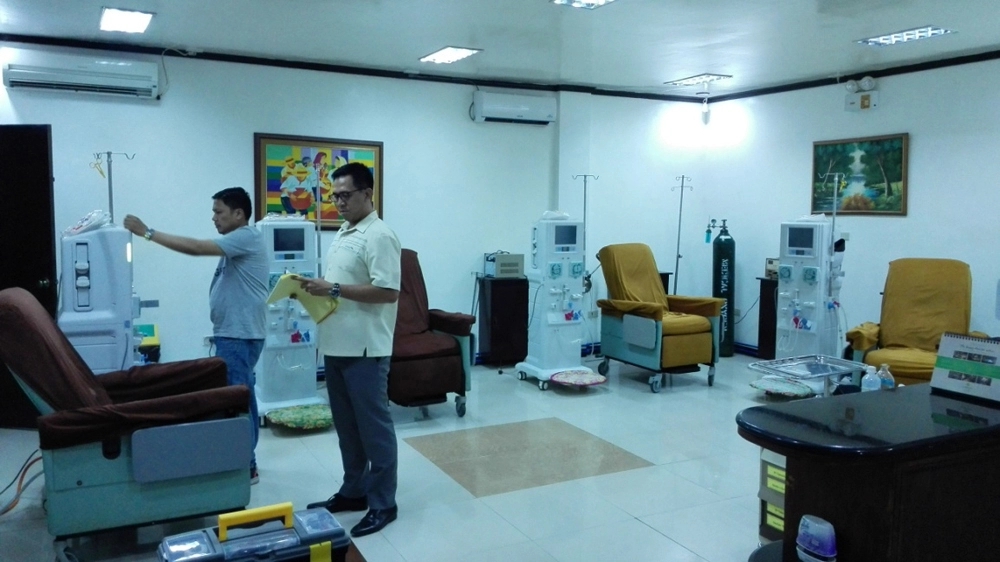

Our hemodialysis machine for kidney in different hospitals worldwide
Main technical parameter
Volume (length× width ×height):370mm×340mm ×1570mm
Weight: about 90kg
Power supply voltage: AC220V±10%
Frequency: 50HZ ~ 60 HZ
Blood pump/spare pump
Flux: 15 ~ 340ml/min (D 6mm)
20 ~ 460 ml/min (D 8mm)
Injector size: 20ml/30ml/50ml 10ml/20ml/30ml (selectable)
display scope:-300mmHg~+300mmHg (±10mmHg)
display scope:-50mmHg~+300mmHg (±10mmHg)
Dialysate flow:300ml/min~800ml/min linearity adjustable(+10%)(-5%)
UF flow scope: 0~1800ml/h(±30ml/h )
ISO UF flow scope:0~2000ml/h(±30ml/h)
Blood leakage monitor: over 1ml blood per liter dialysate (flow:500ml/min)
Blood level monitor: ultrasonic sensor
Air bubble monitor
Infrared and response threshold value:Single air bubble of 200u I exists when Blood flux is 200ml/min
Inflow temperature: 5℃~30℃
Environment temperature: 10℃~30℃, Relative humidity≤70%
Rinse/disinfection: chemical disinfection (citric acid,peracetic acid and oxalic acid)
Hot rinse: 80℃
Back-up power supply: last for 15-30min after electric-cut.
