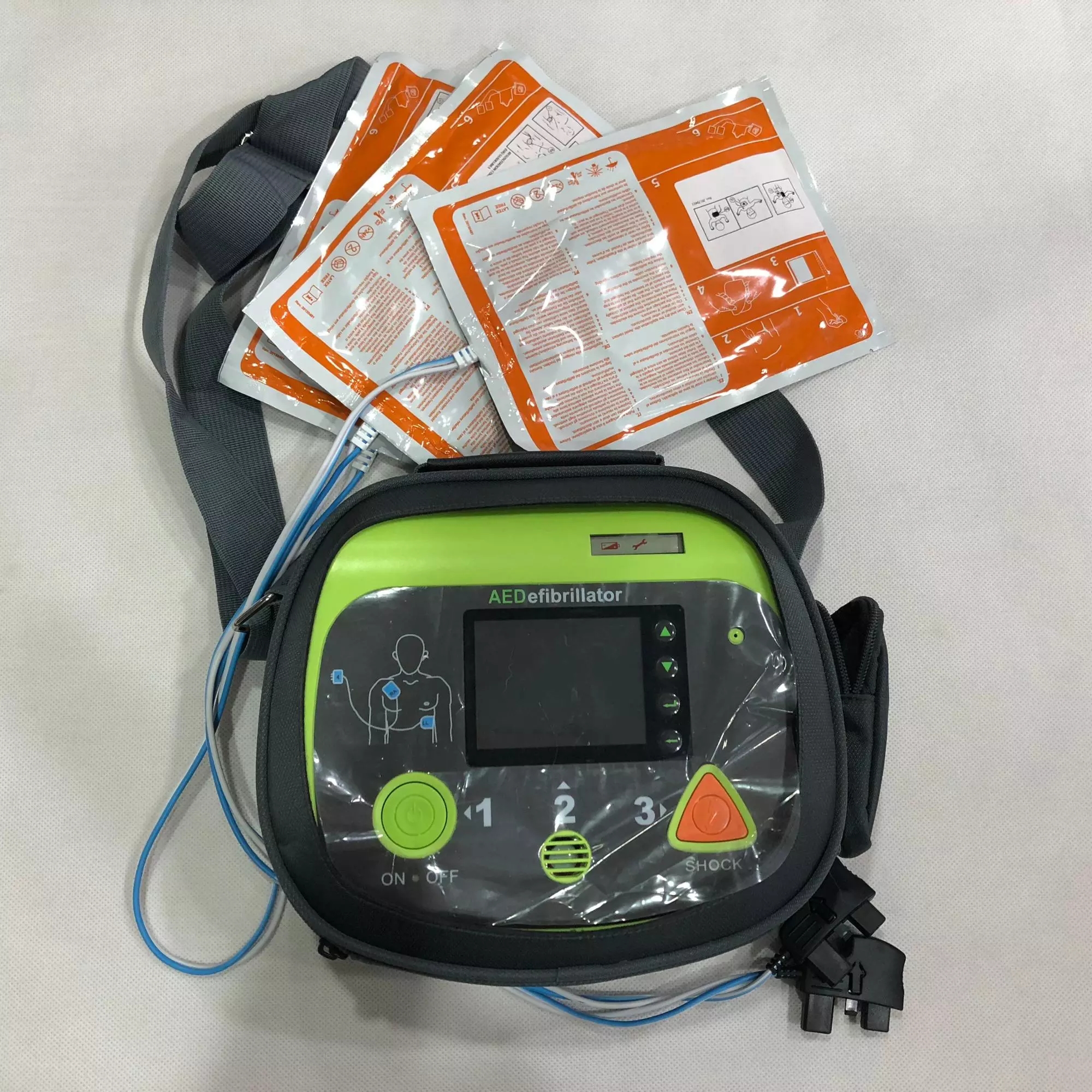

Portable AED Automated External Defibrillator
Portable AED Automated External Defibrillator
Main Features
1.three-step defibrillation process
2.two-button operation
3.extensive voice and visual prompts for the operator
4.biphasic energy output
5.3.5 inch LCD display
Specification
Category Specification Output Biphasic Truncated exponential Energy Sequence(adult ) 150/150/200(Default) 150/200/200 200/200/200 Note: the Energy sequence can be changed using the computer IR port. Energy Sequence(Pediatric) 50/70/85(Default) 70/70/85 70/85/85 85/85/85 Note: the Energy sequence can be changed using the computer IR port. Charge Time 10 sec. to 200 J Analysis Time 9 sec. The maximum time from the initiation of rhythm analysis to readiness for maximum Energy discharge after 15 shocks. Less than 30 seconds The maximum time from initially switching power on to readiness for maximum Energy discharge after 15 shocks.. Less than 35seconds Audible Prompts 19 audible prompts Visual Prompts LED/LCD Controls six buttons - On/Off, Shock, and 4 software-configurable buttons Output Energy Accuracy ±15% into any impedance from 25 to 175Ω The Maximum Voltage 1800±20V Output disabled when the PATIENT impedance is outside limits 20Ω to 200Ω Recovery of the ECG input after defibrillation <10s
Battery
ParameterCategory Specification Part No CR123A-4x2 Non-rechargeable 12V d.c. 2.8Ah Capacity 100 discharges at 200 Joules or 120 discharges at 150 Joules Shelf Life (25℃±15℃) 5 years
Category Specification Dimensions 303 x 216 x 89 mm Weight 2.0 kg Operating Temperature 0℃ to 40℃ Operating Humidity Relative humidity between 30% and 95% (non-condensing) Storage Temperature(without battery) -20℃ to 55℃ Storage Humidity(without battery) Up to 93% (non-condensing)
Electrical Isolation
| Category | Specification |
| Power | Unit operates on internal battery only |
| External Electrical | No external devices are attached to the unit |
| Risk Current Category | Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard) |
