Cytotoxic Safety Cabinet for Lab 1
Cytotoxic Safety Cabinet for Lab 1

Cytotoxic Safety Cabinet for Lab

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-SC03

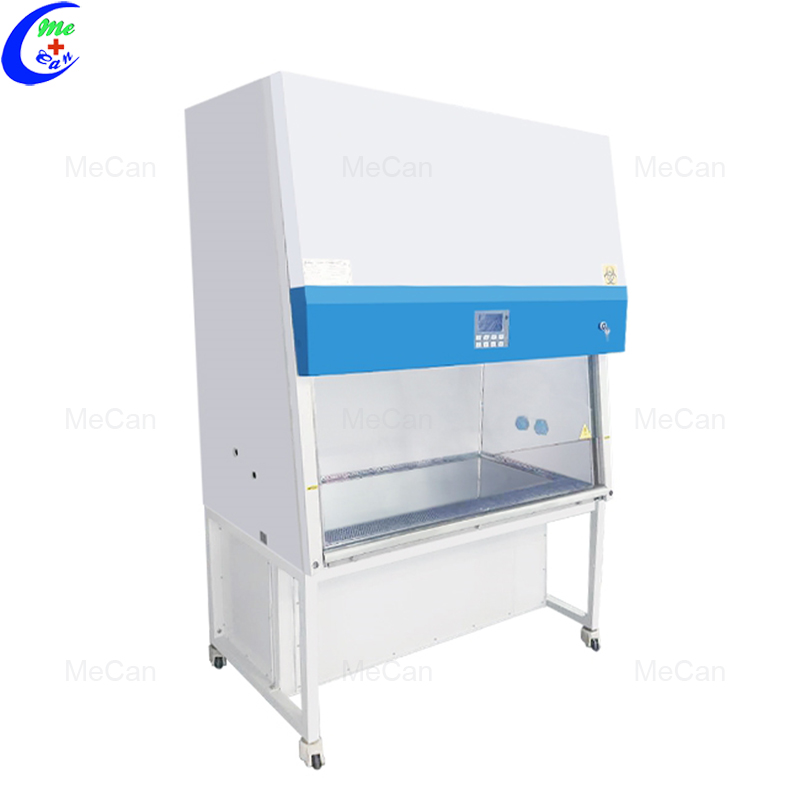

    Cytotoxic Safety Cabinet for Lab

    Model:MCL-SC03

    Cytotoxic Safety Cabinet for Lab 2

    Product description:

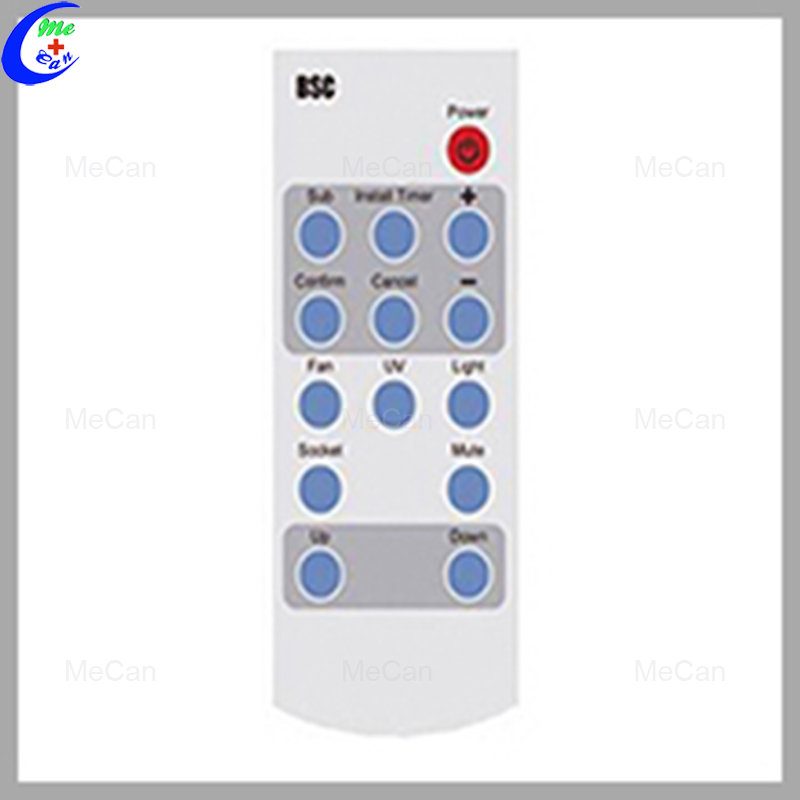

    Cytotoxic Safety Cabinet for Lab 3Remote Control

    All functions can be realized with it,making the operation much easeir and more convenient.


    Cytotoxic Safety Cabinet for Lab 4

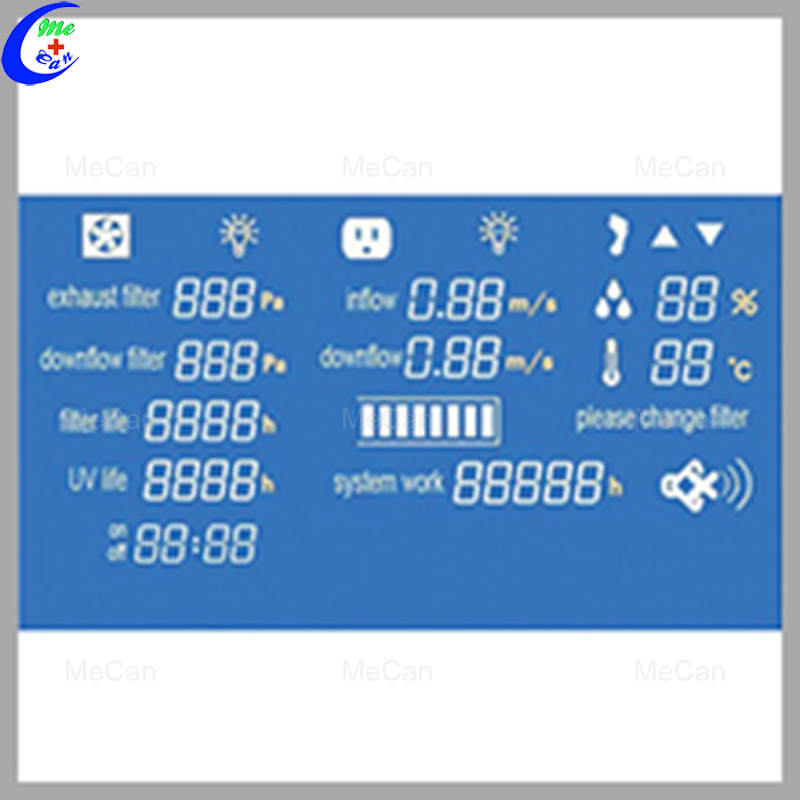

    LCD Display


    Large digital display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.


    Cytotoxic Safety Cabinet for Lab 5

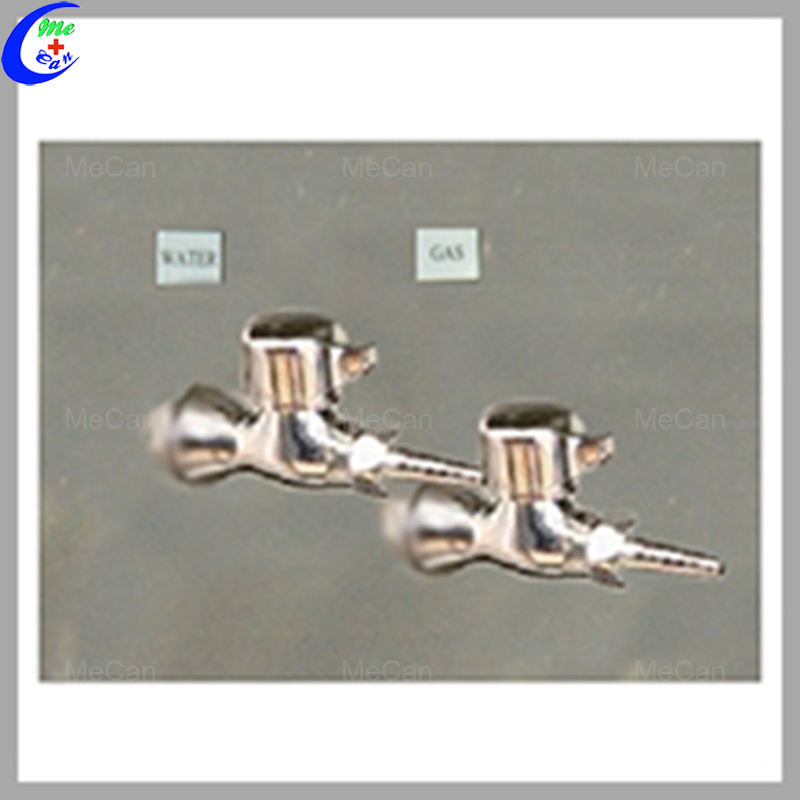

    Water and Gas Taps


    High quality stainless steel.

    Cytotoxic Safety Cabinet for Lab 6

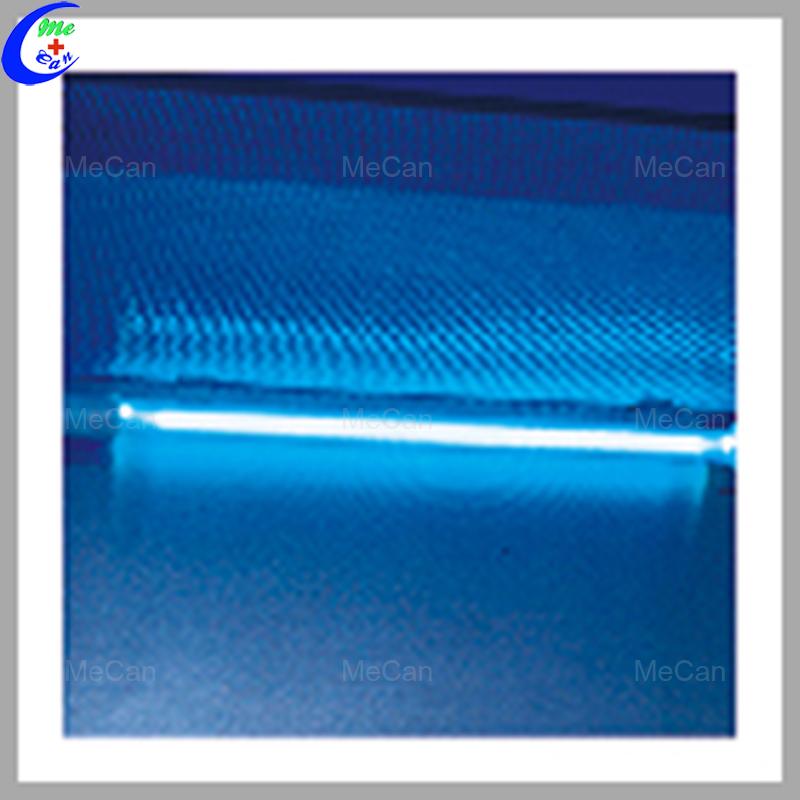

    UV Lamp


    Emission of 253.7 nanometers for most efficient decontamination.



    Cytotoxic Safety Cabinet for Lab 7

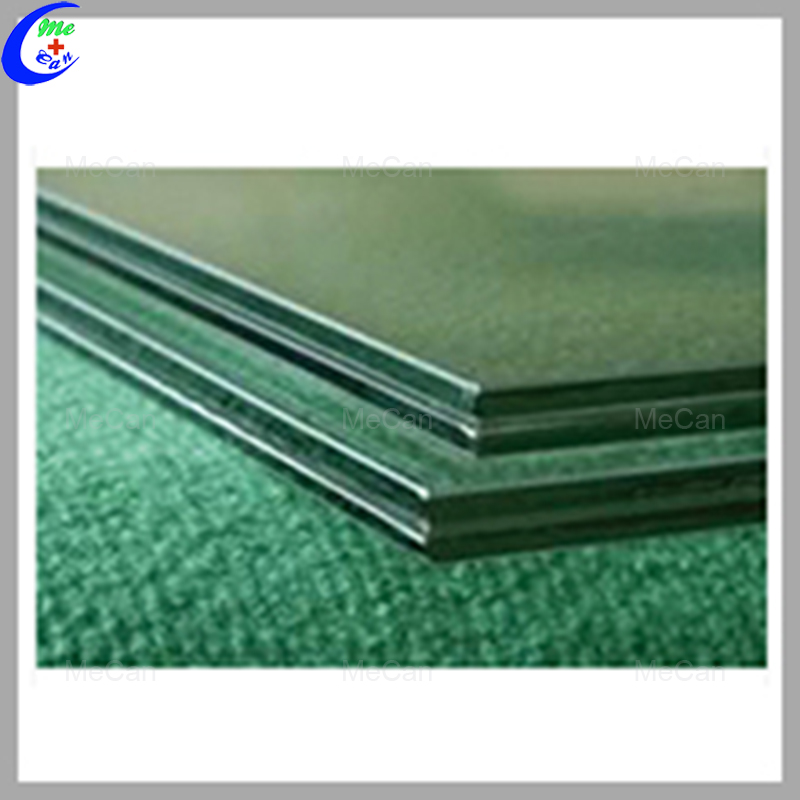

    Front Window

    Motorized ,Two-layer laminated toughened glass5mm,anti UV.

    Cytotoxic Safety Cabinet for Lab 8

    Bag In and Bag Out Fliter


    The PVC bag can ensure the safety of the personnel and the environment, and make the replacement process convenient and quick.


    Specification:

    Model

    MCL-SC003

    Internal size(W*D*H)

    1087*760*2100mm

    External size(W*D*H)

    910*600*630mm

    Tested Opening

    Safety Height 200 mm(8’’)

    Working Opening

    440mm(17’)

    Internal Work Area,space

    0.55m3

    Inflow Velocity

    0.53 m/s

    Down Flow Velocity

    0.33 m/s

    Exhaust Volume

    347m3/h (204cfm)

    Air Supply Filter

    ULPA filter,efficiency>99.999% for partical size at 0.12 μm

    Exhuast Filter

    2pieces HEPA filters, efficiency>99.999% for particle at 0.3 μm.

    Fiter life indicator and filter working time indicator

    Alarm

    Abnormal airflow velocity; Filter replacement; Front window at unsafe height.

    Noise

    EN12469≤58dB/NSF49≤ 61 dB

    Water &Gas Tap

    Water Tap*1,Gas tap*1

    UV lamp

    18 W*1


    Emission of 253.7nanometers for most efficient decontamination


    UV life indicator

    Fluorescent Lamp

    12 W*2

    Illumination

    ≥1000 lux

    Consumption

    700 W

    Waterproof Socket

    Two ; total load of two sokets :≤500W

    Display

    LCD Display

    Control Sys tem

    Microprocessor

    Humidity and Temperature

    Humidity and temperature can be displayed on the control panel

    Material

    Work Area:304 stainless steel;

    Main Body :Cold-rolled steel with anti-bacteria powder coating

    Front Window

    Moterized,two-layer laminated 5mm toughened glass.Anti UV.

    Caster

    Footmaster Caster

    Power Supply

    AC220V± 10%,50/60HZ;110V±10%,60HZ

    Standard Configuration

    Base stand, Drain valve, waterproof sockets*2, Remote control,  UV lamp*2 and Fluorescent Lamp,Water tap ,Gas tap

    Optional accessory

    Armrest,Formalin fumigation sterilizer,infrared sterilizer, Airflow tester,PVC duct

    Gross weight

    320kg

    Package Size(W*D*H)

    1080*910*2280mm

    Standard Accessory:

    Base stand                   1pc.

    Drain valve                   1pc.

    Waterproof sockets       2pcs.

    Remote control             1pc.

    UV lamp                       2pcs.

    Fluorescent lamp           1pc.

    Water tap                    1pc.

    Gas tap                        1pc.

    Optional Accessory:

    Armrest

    Formalin fumigation sterilizer

    Infrared sterilizer

    Airflow tester
