Digital Video Colposcope For Gynecology
Digital Video Colposcope For Gynecology
This Video Colposcope is applicable to the detections of pathological changes in Vulva, vagina and the cervix, filtering cervix cancer by fluorescence indirectly, and images management.
Features
Fashionable appearance, convenient design.
Adopt the color digital CCD camera with high resolution and clarity.
Dismountable light source, which has got the patent.
Bulbs adopt supper cold LED light source whose diameter is only 2 mm.

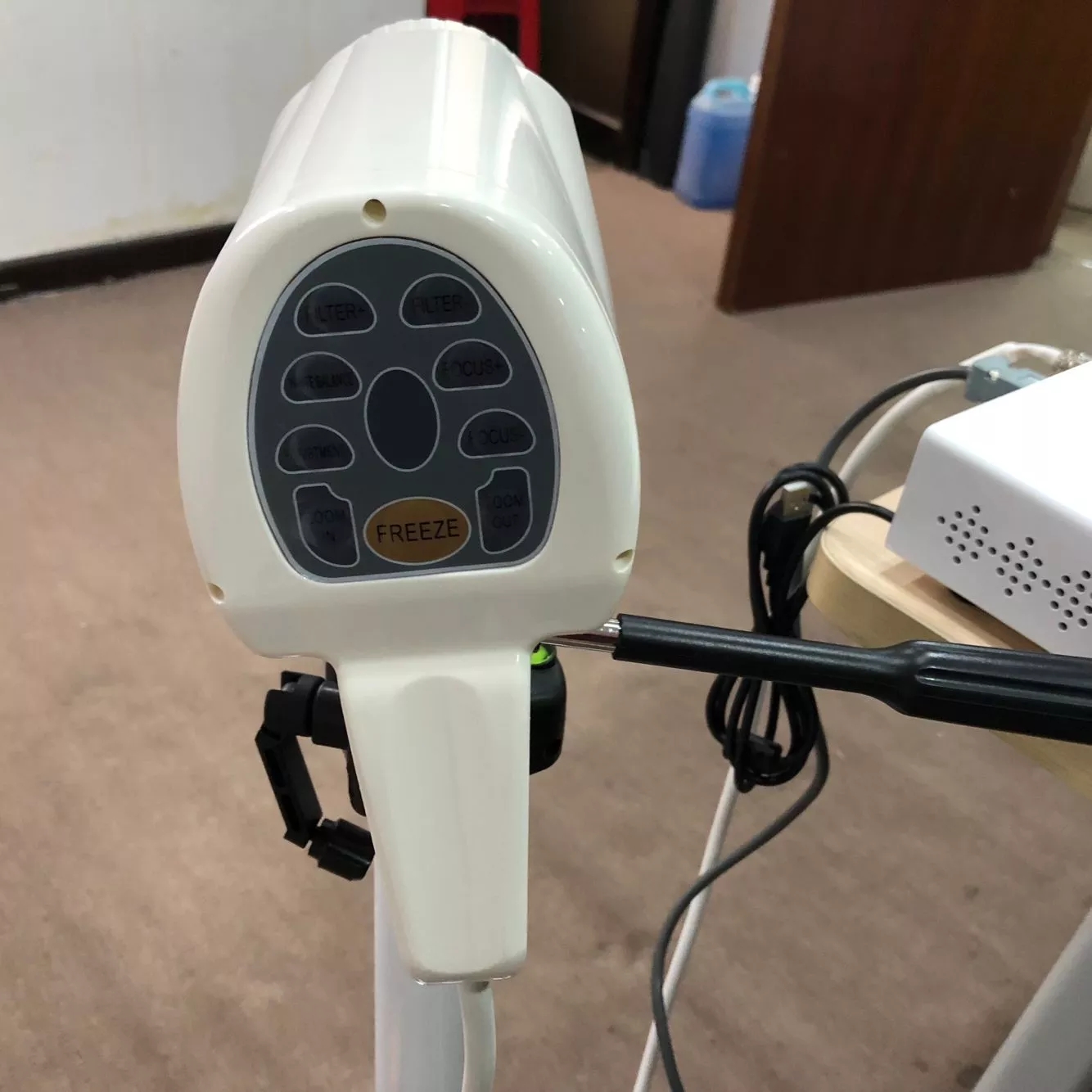

There are “freeze, filter, zoom in, zoom out, white balance” buttons on the top of the camera for the speedy automatic functions.
Professional green-filter techniques
Image freeze
White balance
Auto focus
Timing of acetic acid and iodine reaction tests
Powerful image software and workstation system
Specification
Image Sensor | 1/4” Sony CCD Image Sensor |
Pixel | 830,000 |
Mode | Green, Black/White, |
Imaging Mode | Color |
Image Freezing Control | Finger Control; Footswitch Control ,Camera control |
Minimum Illumination | 0.05Lux |
Signal-to-Noise (SNR) | >50dB |
Electronic shutter | 1/10,000 Sed |

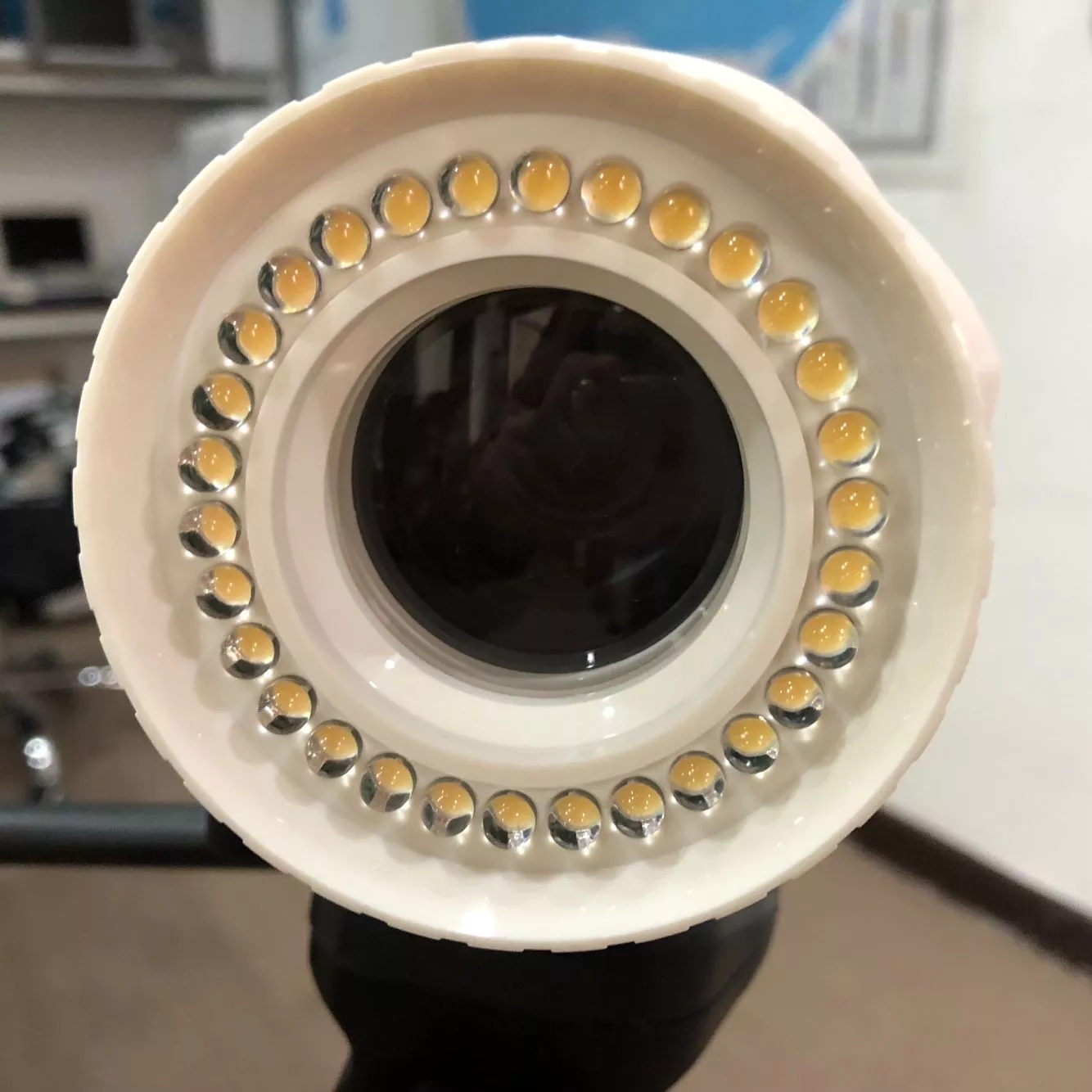

Light Source | Multi-point surrounded high-brightness white cold light source |
Back-lighted Compensation | Automatic |
Focus Area | 150mm-350mm |
Focusing | Auto/Manual |
Varifocal | Optical Varifocal :22 times |
Digital Varifocal: 8times | |
Dynamic Timing Control | Real-time display of acetic acid and iodine reaction tests |

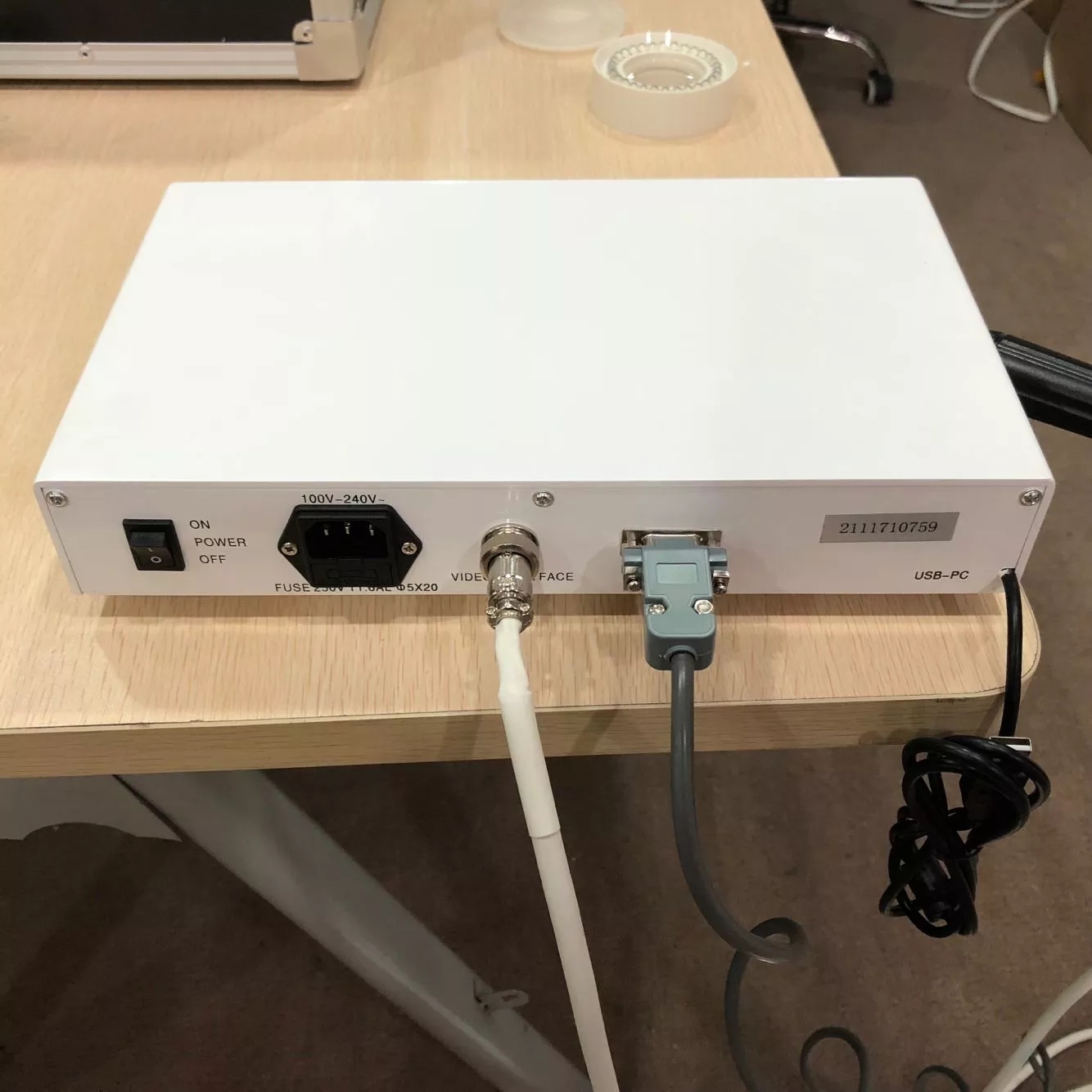

Video-Out | PAL/NTSC 1.0VP-P,75Ω |
1. Capacities of collecting static images continuously; the number of images for dynamic browse could reach to as much as 99.
2. Capacities of continuous cine loop and record of dynamic images in 6 different sampling-frequencies.
3. Capacities of comparisons for 4 pictures in the same screen, which will be executed by multi-orientations, multi-angles and dynamic consultations.
4. Functions of copy, freeze, and others.
5. Hundreds of cases pictures could be supplied for analyzing and referencing; new cases pictures could be added and compared with current pictures at any time.
6. Abundant diagnosis information supplied, which is much useful for preventing the afflictions of inputting characters.
7. Capacities of creating web reports and transmitting the reports and images via internet or local area network (LAN), recurring to which the effects of resource sharing and long-distance consultation could be achieved.
8. Multi-formats of colorful image info reports, database could be edited freely to create the user-templates
9. Tens of image enhance functions to improve the checking rate of micro-focus
10. Sole Filter function which will ensure doctors to see the veins clearly with less loss of light.
Full-icon operation system, which is very easy to operate.
Operation System
Windows 2000
Windows XP-SP2
Windows VISTA
Windows 7

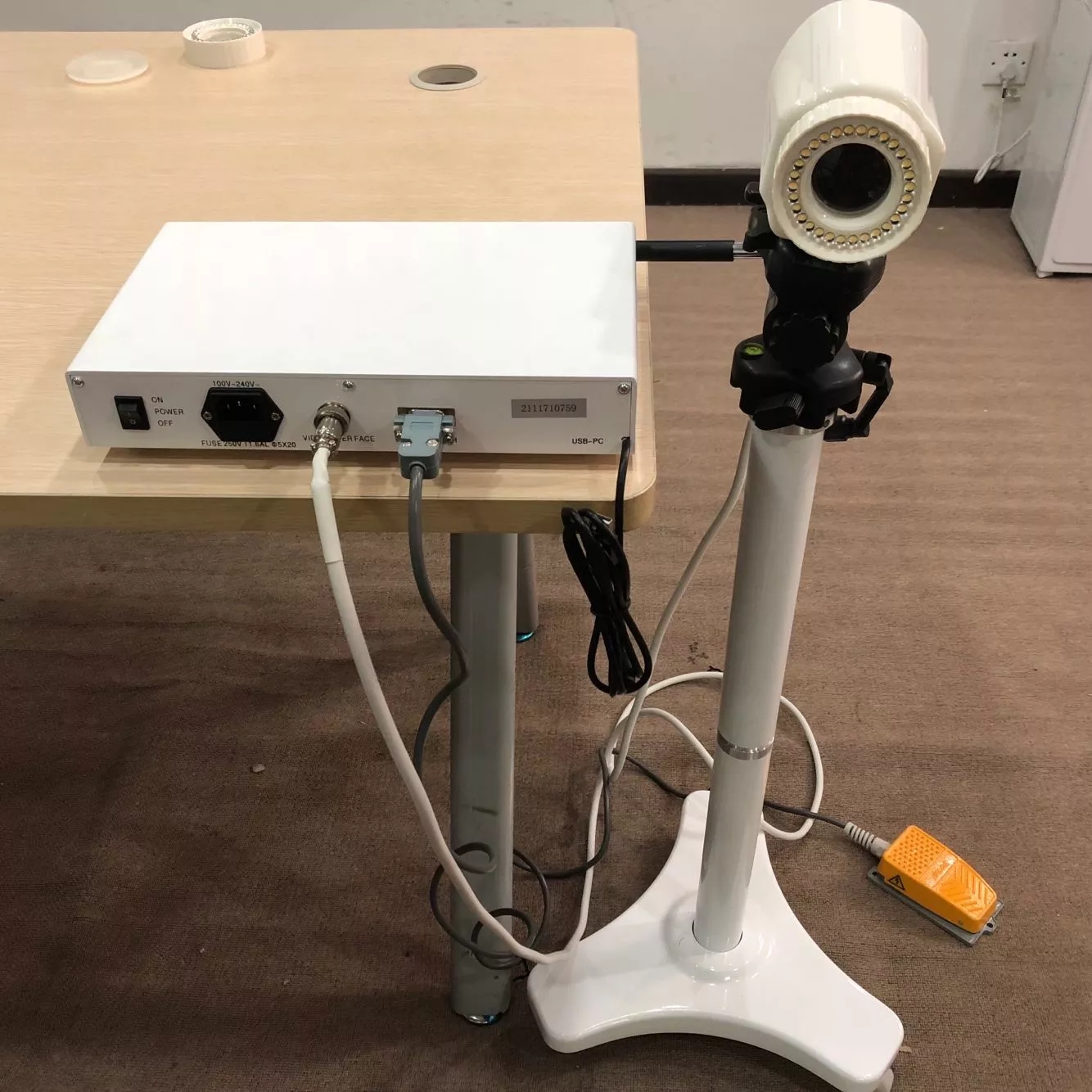

More Pictures
