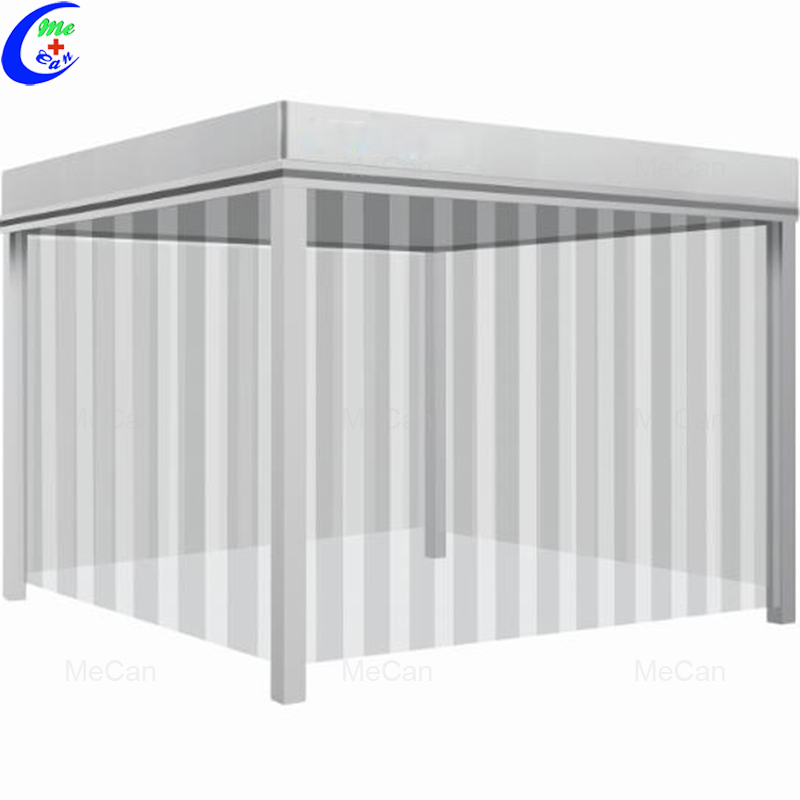

Clean Booth, Down Flow Booth
Clean Booth, Down Flow Booth
Model:MCL-SC09
Features:

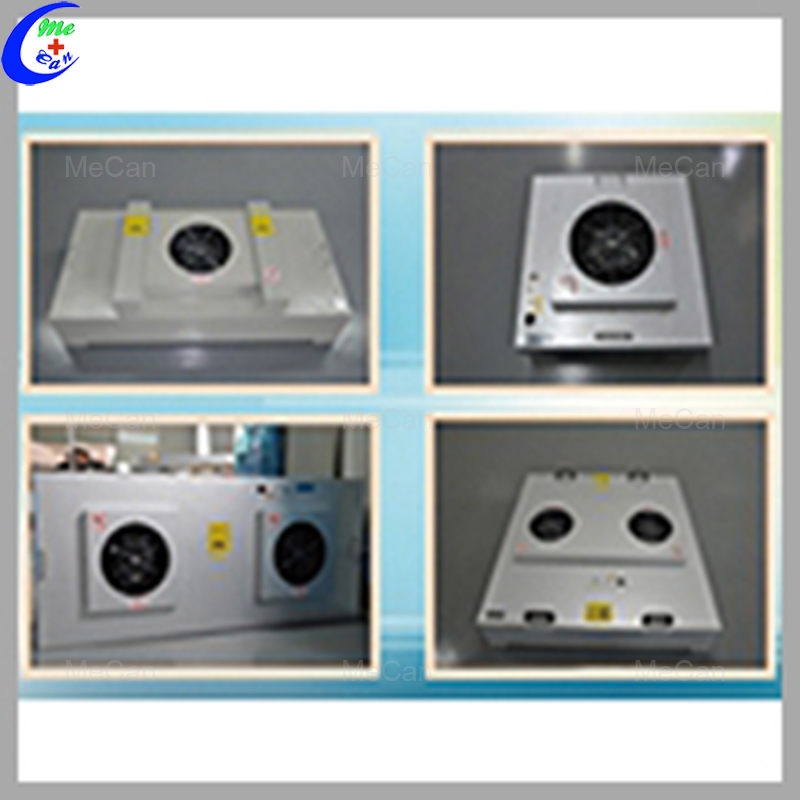

FFU(Fan Filter Unit)
which draws in contaminated air from the top of themodule, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.

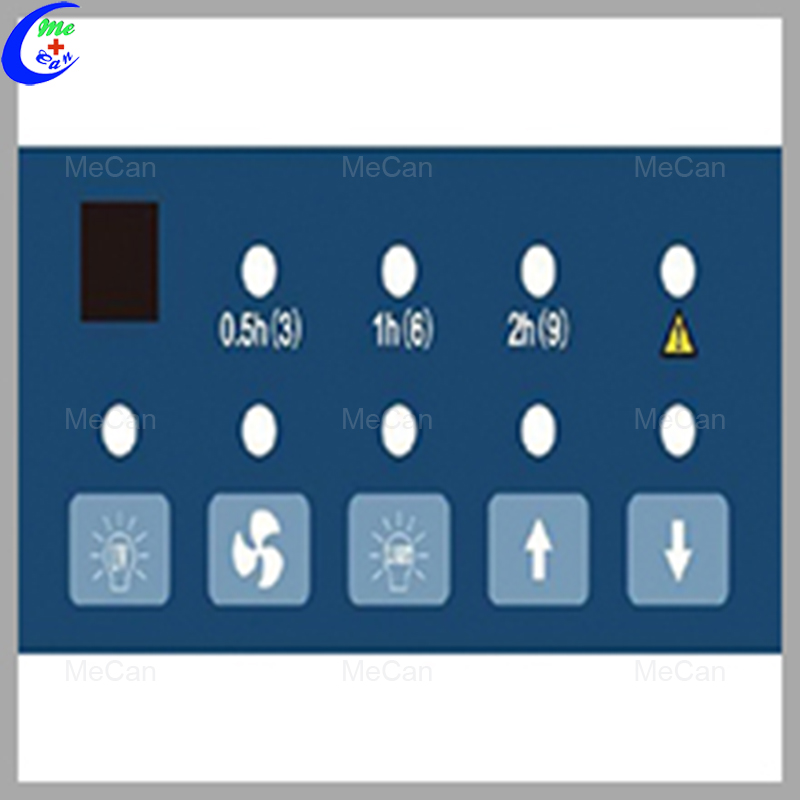

Microprocessor Control
Users can control the fan, light, UV and adjust the air velocity with it

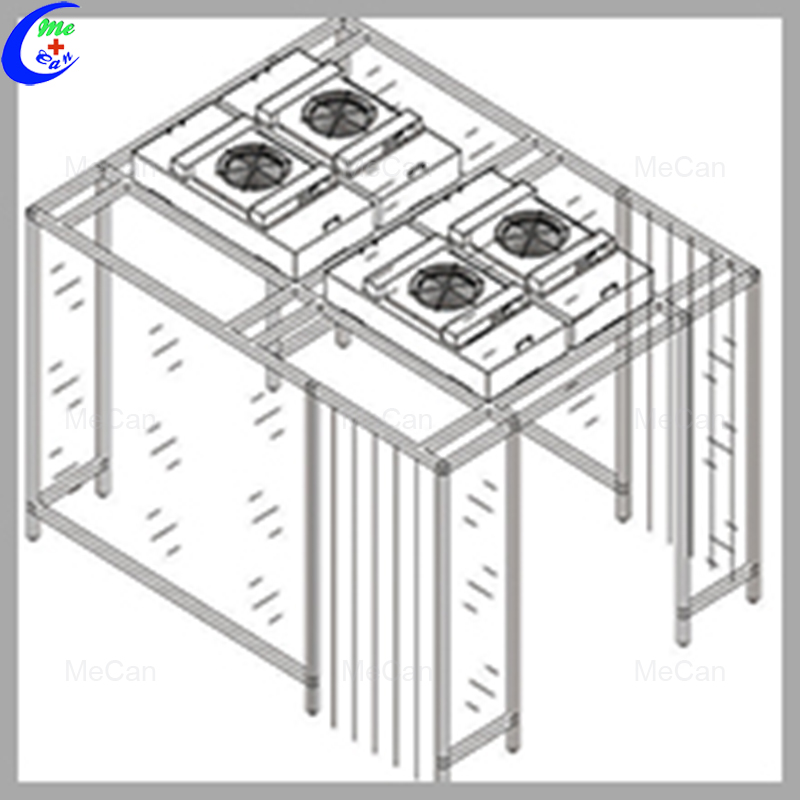

Design drawing

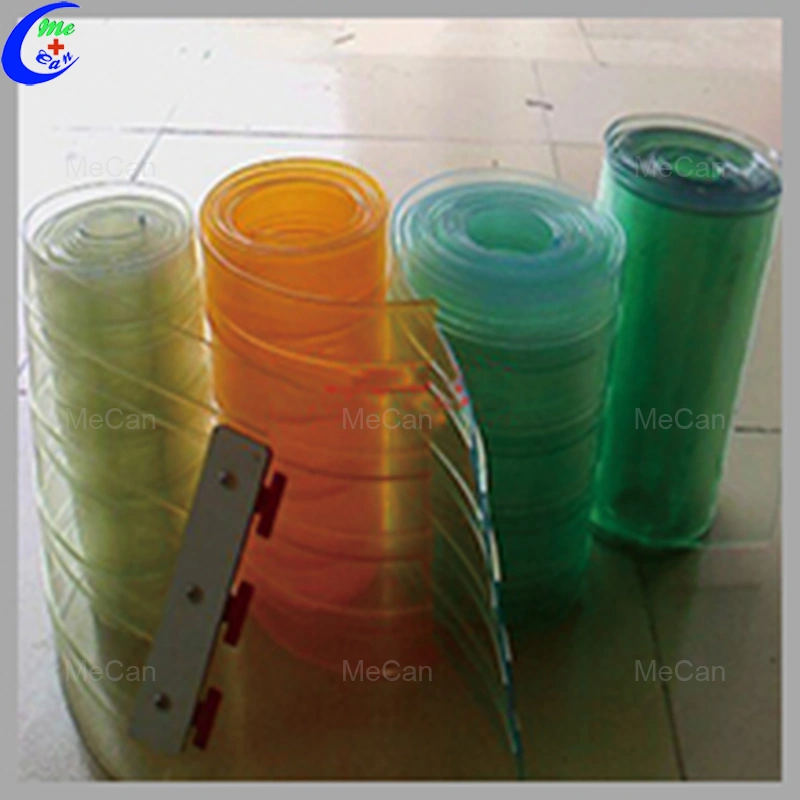

Soft Wall Material
PVC anti-static dustproof curtain.
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost
and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
(Universal wheel can be installed).
Specification:
Model | MCL-SC09 |
External Size (W*D*H) | 1500*2000*2530mm |
HEPA Filters | 99.999% efficiency at 0.3 um |
Consumption | 800W |
FFU Nos. | 4pcs |
Clean Level | ISO 5 (Class 100), Class A |
Control System | Microprocessor control system |
Rectangular Tube Material | Aluminium alloy |
Wall Material | Anti-static dustproof curtain |
Blower | Built-in centrifugal blower; speed adjustable |
UV Lamp | 40W*2 |
Emission of 253.7nanometers, with UV timer | |
Illuminating Lamp | 16W*1 |
LED Lamp,Illumination :≥800lux | |
Air Velocity | 0.1~0.6m/s, average 0.45m/s |
Noise | ≤62db |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Gross Weight | 390Kg |
Package Size (W*D*H) | 2110*930*920mm 2260*660*500mm |
Customized design for clean level, size or material is available | |
