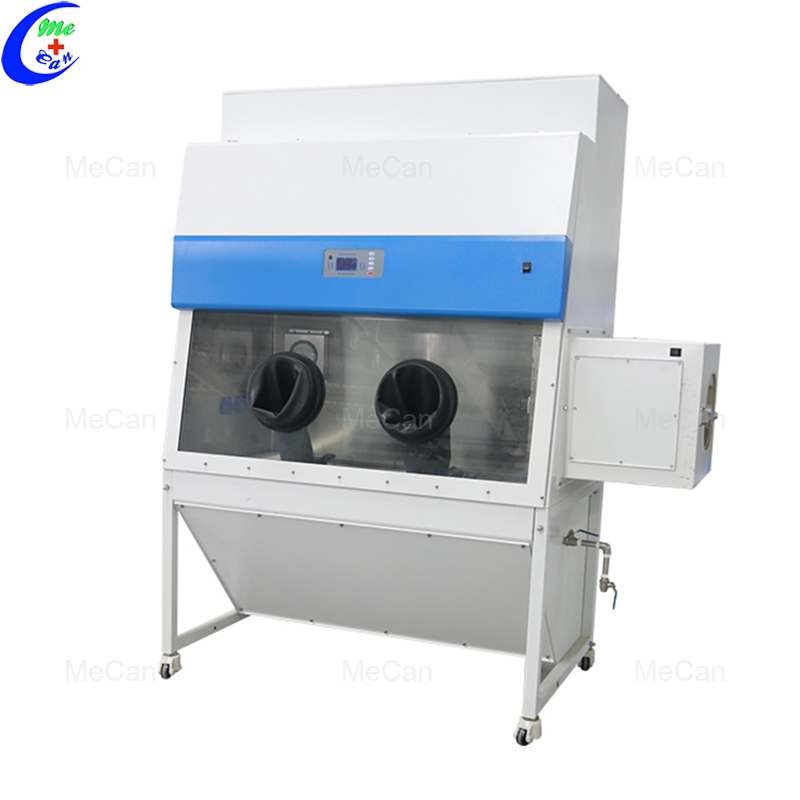

Class III Biological Safety Cabinet
Class III Biological Safety Cabinet
Model:MCL-SC04
Product description:

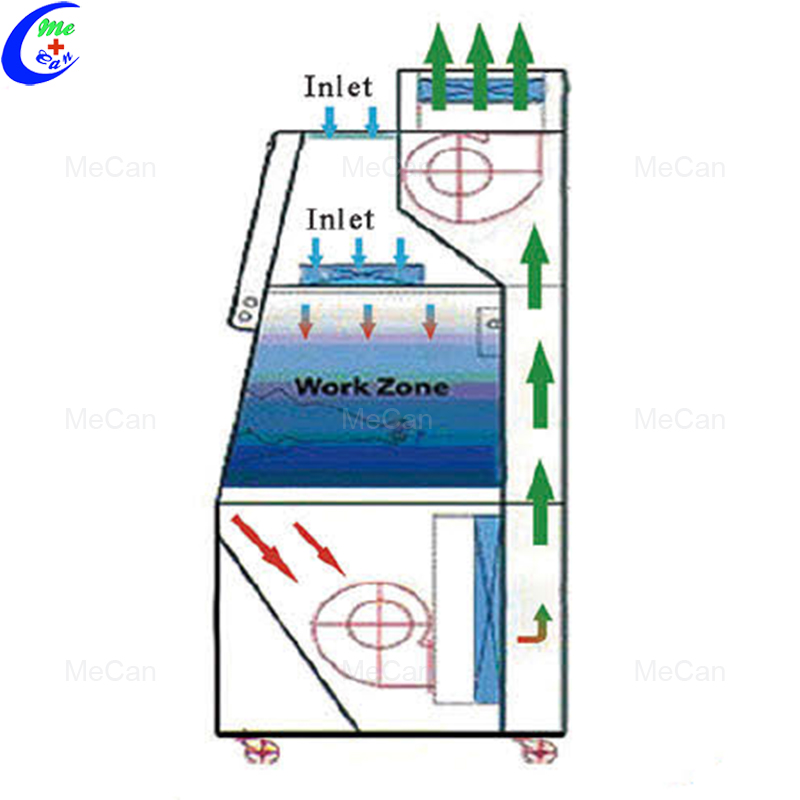

Air Pattern of Class III Biosafety Cabinet:
Features:
1.With memory function in case of power-failure.
2. UV lamp ensures work area sterilization effectively.
3.An angled cabinet front ensure an ergonomic working posture.
4.Exhaustair is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.12μm particles.
Specification:Model | MCL-SC04 |
External Size(W*D*H) | 1540*880*2000 mm |
Internal Size(W*D*H) | 910*650*660 mm |
Pass Box Size(W*D*H) | Internal Size:430*330*355mm |
External Size:575*425*495mm | |
Gloves | One pair of 800mm butyl rubber gloves |
Front Window | 8 mm toughened glass, anti-ultraviolet radiation |
Display | LCD display |
Pre-filter | Polyester fiber, washable |
Pressure | ≥ negative120 Pa |
ULPA Filter | Air supply filter: Efficiency 99.999% at 0.12μm |
First exhaust filter: Efficiency 99.999% at 0.12μm | |
Second exhaust filter: Efficiency 99.999% at 0.12μm | |
Noise | NSF 49 ≤61dB/EN 12469≤48dB |
Airflow Volume | 440-870cfm |
Alarm | Audio and visual alarm, abnormal pressure; filter replacement |
Work Zone Material | 304 stainless steel |
Illumination | ≥ 1000 lux |
Consumption | 1200W |
Fluorescent Lamp | 12W*2 |
UV Lamp | 18W*2 ,8W*1 |
Emission of 253.7 nanometers for most efficient decontamination | |
Power Supply | AC220V±10% ,50/60 Hz;110V±10%,60Hz |
Gross Weight | 350kg |
Package Size(W*D*H) | 1635*1062*2160mm |
Standard Accessories | Gloves, fluorescent lamp, UV lamp*4, remote control, pressure meter, drain valve |
Standard Accessory:rescent
Gloves 1pair.
Fluorescent lamp 2pc.
UV lamp 4pcs.
Remote control 1pc.
Pressure meter 1pc.
Drain valve 1pc.
