Chinese 5 Step Magnification Slit Lamp Microscope for Sale
What is the feature of our Slit Lamp Microscope?
1. Classic Galilean type microscope
2. Total magnification ratio: 6X, 10X, 16X, 25X, 40X
3. Max aperture diameter: 14mm
4. Powered by halogen light source
5. Convergence angle of eyepieces: 13°
6. Excellent stability, available with applanation, digital camera, CCD, teaching tube, etc.
What is the specification of our Chinese Slit Lamp?Microscope |
Microscope Type | Galilean Type |

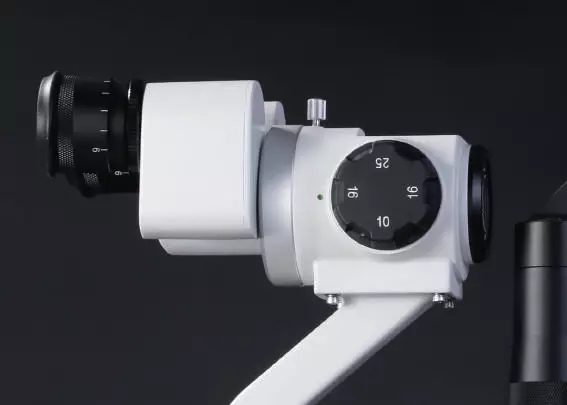

Magnification Change | Revolving Drum (5 or 3 steps) |
Total Magnification | 6X, 10X, 16X, 25X, 40X (S280) |
10X, 16X, 25X (S280S) |
Eyepieces | 12.5X |
Angle between Eyepieces | 13° |
Pupillary Adjustment | 52mm-78mm |
Diopter Adjustment | ±6D |
Field of View | S280: 34.7mm(6X), 22mm(10X), 13.5mm(16X), 8.5mm(25X), 5.5mm(40X) |
S280S: 22mm(10X), 13.5mm(16X), 8.5mm(25X) |
Slit Illumination |
Slit Width | 0~14mm continuous (slit becomes a circle at 14mm) |
Slit Length | 1~14mm continuous |
Aperture Diameters | Φ14mm, Φ8mm, Φ3.5mm, Φ0.5mm |
Slit Angle | 0°-180° |
Filters | Heat-absorbing Filter, Red-free Filter, Cobalt Blue Filter |
Lamp | 6V/20W Halogen Lamp |
Luminance | ≥50KLX |
Instrument Base |
Longitudinal Movement | 110mm |
Lateral Movement | 110mm |
Vertical Movement | 30mm |
Fine Base Movement | 15mm |
Chin-rest |
Vertical Movement | 80mm |
Fixation | LED |
Power Supply |
Input Voltage | 220x/110x~±10% |
Input Frequency | 50Hz/60Hz |
Power Consumption | 30VA (max) |
Output Voltage | Lamp 6V, Fixation 3V |
Packing |
Dimension | 760mm x 470mm x 570mm (L/W/H) |
Gross Weight | 22Kg |
Net Weight | 16Kg |
