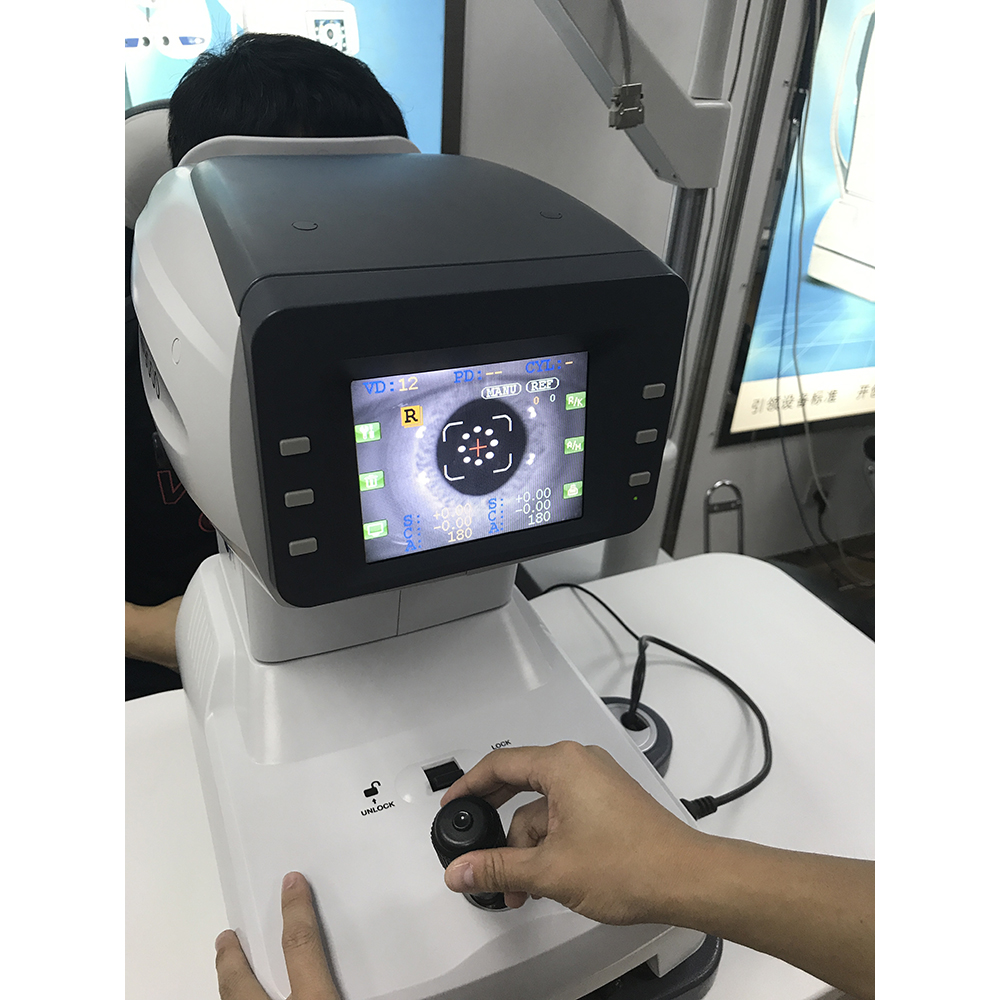

China Ophthalmic LCD Digital Auto refractor keratometer FDA,CE

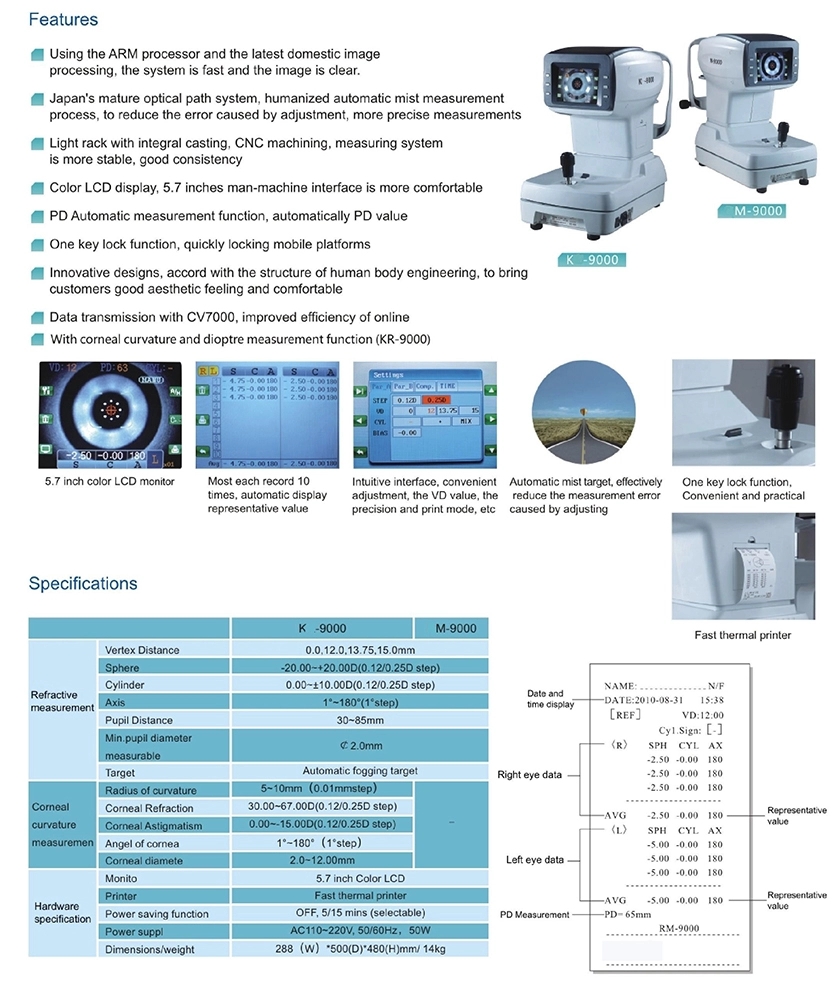

Measurement mode

K/R mode

Refractive and Keratometer measurement.

REF mode

Refractive measurement

KEF mode

Corneal curvature measurement

Refractive measurement

Vertex Distance

0.0,12.0,13.75,15.0 mm

Sphere

-20.00~+20.00D

(0.12/0.25D step)(VD=12mm)

Cylinder

0.00~±10.00D (0.12/0.25D step)

Axis

1°~180°(1° step)

Pupil Distance

45~85 mm  1mm steps

Min. pupil diameter measurable

2.0mm

Target

Automatic fogging target

Corneal curvature measurement

Radius of curvature

5~10mm(0.01mmstep)

Corneal Refraction

33.00~67.00D(0.12/0.25Dstep)

Corneal Astigmatism

0.00~-15.00D(0.12/0.25Dstep)

Angle of corneal

1°~180°(1°step)

Corneal diameter

2.0~12.00mm

Hardware specification

Monitor

5.7 inch Color LCD

Printer

Fast thermal printer

Power saving function

OFF, 5, 15 mins (selectable)

Power supply

AC110~220 V,50/60HZ

Dimensions/weight

288(W)*500(D)*480(H)mm/14kg
