China 7 Inch Tilt Screen Optical Auto Lensmeter
China 7 Inch Tilt Screen Optical Auto Lensmeter

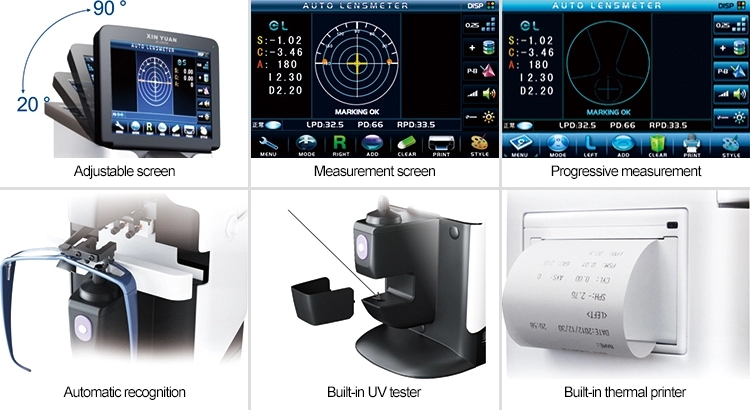

What is the feature of our auto lensmeter?
1. Adjustable LCD Display Screen: Tilt color screen provides you with clear view from any position such as sitting and standing;
2. Sensitive touch LCD display Screen: You just touch the screen to finish measurement, the operation could be easier an d more convenient.
3. Hartmann Sensor technology: The new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
4. Measurement Screen: Easy to use with recognizable icons. The JD-2600A provides a user-friendly Graphical interface for an immediate Understanding.
5. Progressive measurement: A graph helps the operator to improve Accuary and speed in the measurement Of near and far vision
6. Built-in Thermal Printer: Quick data print with built-in printer. Easy to reload printing paper.
What is the specification of our optical lensmeter?
| Range of measurement | |
| Sphere | 0~+- 25D, 0.01/0.12/0.25D step; |
| Cylinder | 0~ +-9.99 D 0.01/0.12/0.25D step. |
| Axis | 0-180 ° (1 ° step) |
| Add. | 0-9.99 D 0.01/0.12/0.25D step. |
| Prism degree | 0-15 D 0.01/0.12/0.25D step. |
| Measurement mode | |
| Cylinder | +, +/-, – |
| Prism | X-Y, P-B |
| Contact Lens | soft/hard; |
| Measuring mode | Single/progressive/automatic recognition |
| Specifications | |
| Diameter of lens | 20-108mm; |
| PD | 40-90mm, 0.5mm step; |
| Speed of measurement | 0.1s |
| Display | JD-2600A: 7” TFT LCD; |
| Printer | Thermal Printer |
| Weight | 5.5kg |
| Power supply | 100-240V, 50-60HZ |
