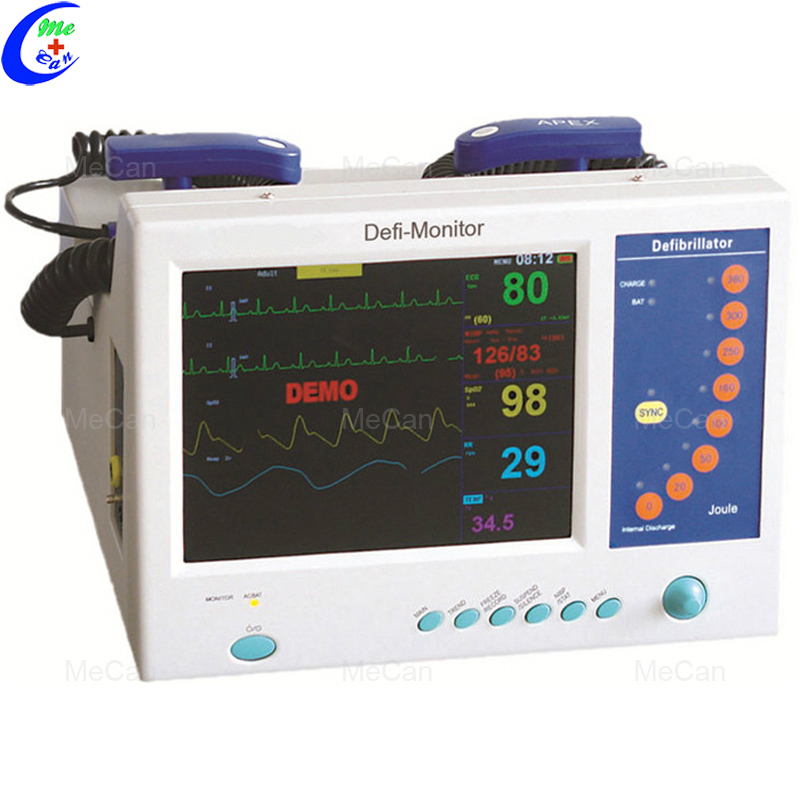

Hospital Biphasic Defibrillator Monitor

Hospital Biphasic Defibrillator Monitor

Standard parameter & configuration ECG, RESP, SPO2, TEMP PR, NIBP, DEFIBRILLATOR

Physical characteristics:
Main unit: Desktop
Dimensions:L410xW360xH260
Weight:13kg

Technical specifications

DEFIBRILLATOR.
(1)Defibrillator typeManual, Synchronized, Asynchronized
(2)Out put waveformBiphasic technology

(3)Energy accuracy∠+1%
(4)  Energy selection0, 20, 50, 100, 160, 250, 300, 360 joule (nominal at a resistance of 50)
(5)Charging time    Maximum 8 seconds to 360 Joules
(6)  Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)

Power requirements.
(a)AC Power supply110V, 60 Hz /220V,50 Hz
(b) Vehicle Voltage(Option)    DC 12V

Internal Battery Backup
(1)Battery type    Rechargeable lead-acid battery(Li-ion is option)
(2)Charging time    Time-Minimum of 4 hours for full charging
(3)Battery charging      During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication      Red LED
(5) Battery Capacity        100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.

Display
LED Dimensions10’diagonal
TypeHigh resolution true-color graphic LED

ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6, GND S-T segment analysis: -2.0～2.0mv Arrhythmia analysis: yes Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration
Measurement method: Thoracic impedance

NIBP
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation Cuff type: standard Adult; optional Pediatric/Neonatal

Temperature
Measurement range 20~45℃
Resolution 0.1℃

Pulse Oximetry(spO2)
Display : spo2 value, pulse histogram, waveform, Pulse
Range:  0~99%for adult, pediatric and neonatal patients
Probe : standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse range Pulse range: 0-255bpm

Standard parameter & configuration
 ECG/ RESP,/SPO2,/TEMP,/PR,/NIBP/DEFIBRILLATOR

Optional parameter
1. Recorder
2. Change be change to lithium battery.

Packing:
1. Each one is packed
2. Individually in a carton
3. package size:56×46×47cm
4. GW: 16.5Kg
5. NW: 13Kg
