Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Description:
This auto fundus camera is non-mydriatic, it focuses and exposes automatically. its computer is built-in, you can operate it by one-key touch, and the picture got automatically. What is more, our eye fundus camera adopts double cameras to improve accuracy and speed of getting focus position.
Model:
MCO-FC05

    Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA

    What are features of our auto fundus camera ?

    1.One-key touch, picture got automatically

    2.Double cameras system, get focus position accurately and quickly

    3.Non-mydriatic,automatic focus,automatic exposure

    4.Smart operation:automatic,simple,fast

    5.10.1 inch TFT touch-color screen with concise interface design,each indication presented clearly

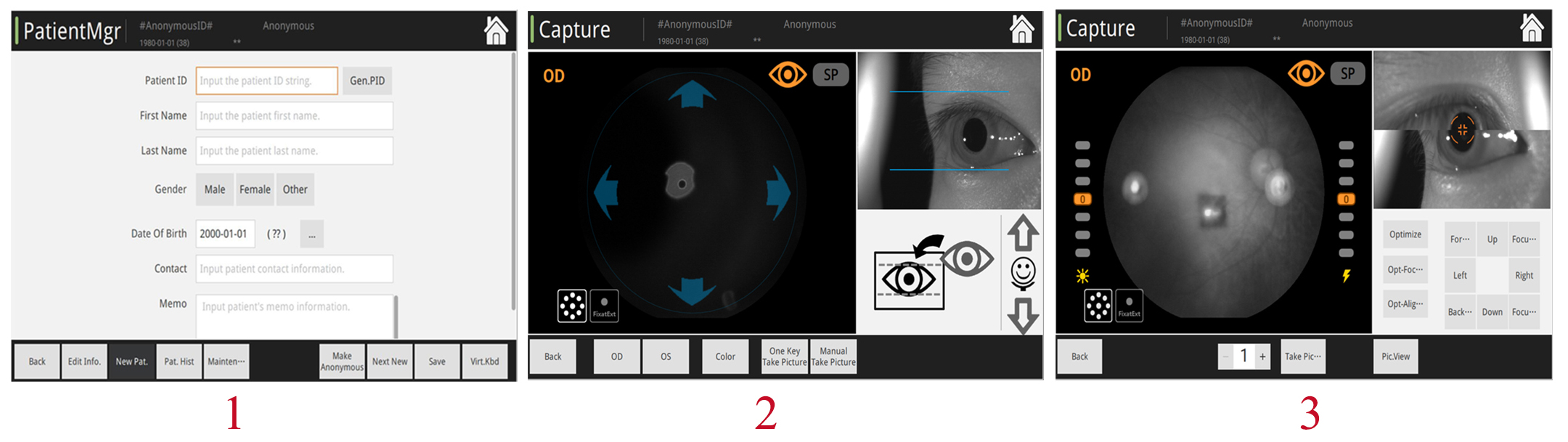

    fundus camera

    First step:input patient information.

    Second step:adjust eyeline locate at range of pupil area,center position is not necessary.

    Final step:click "take picture",machine will move chin rest and find center of pupil automatically,focus automatically,exposure automaticallypicture taken automatically within 10 seconds.

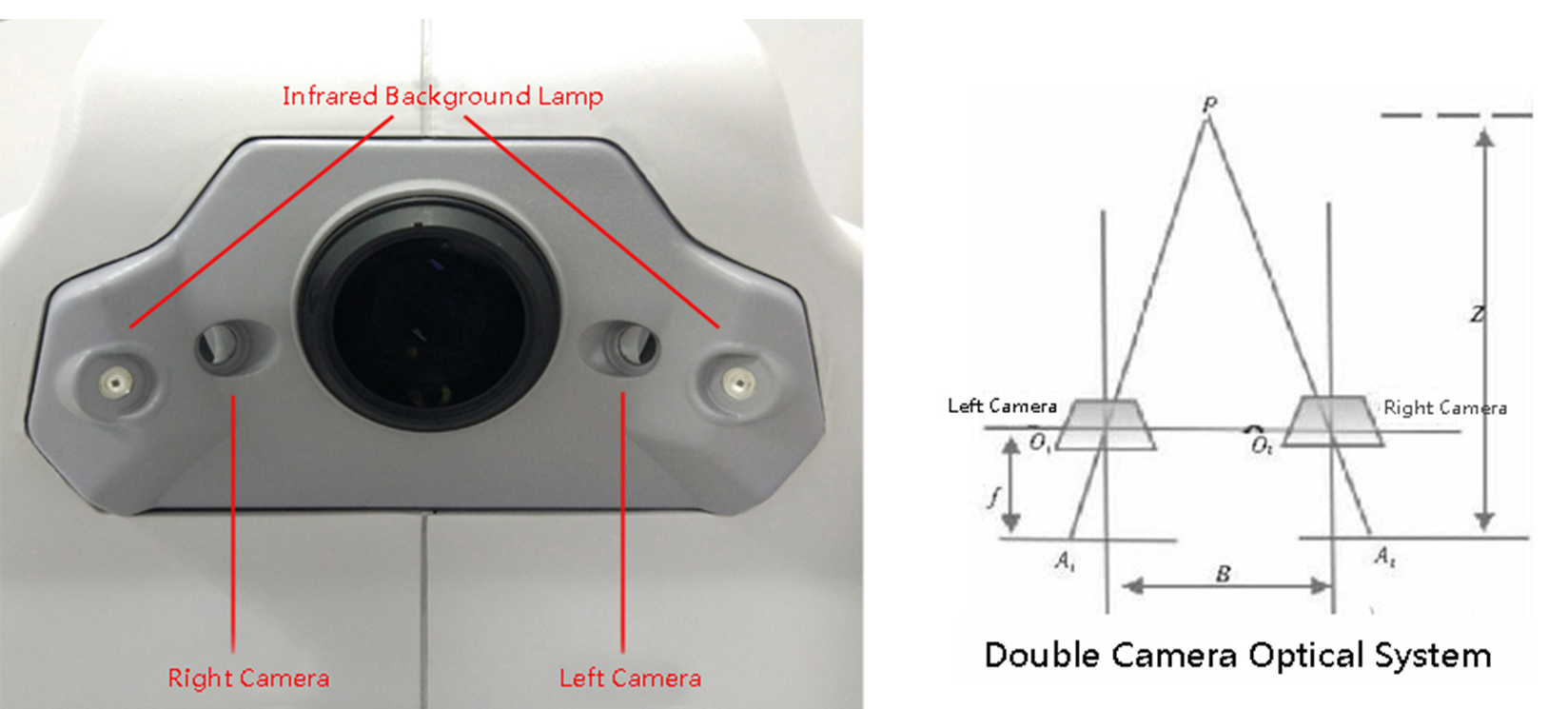

    eye fundus camera

    Adopt double camera system to improve accuracy and speed of getting focus position.

    Saving much valuable time for operator.

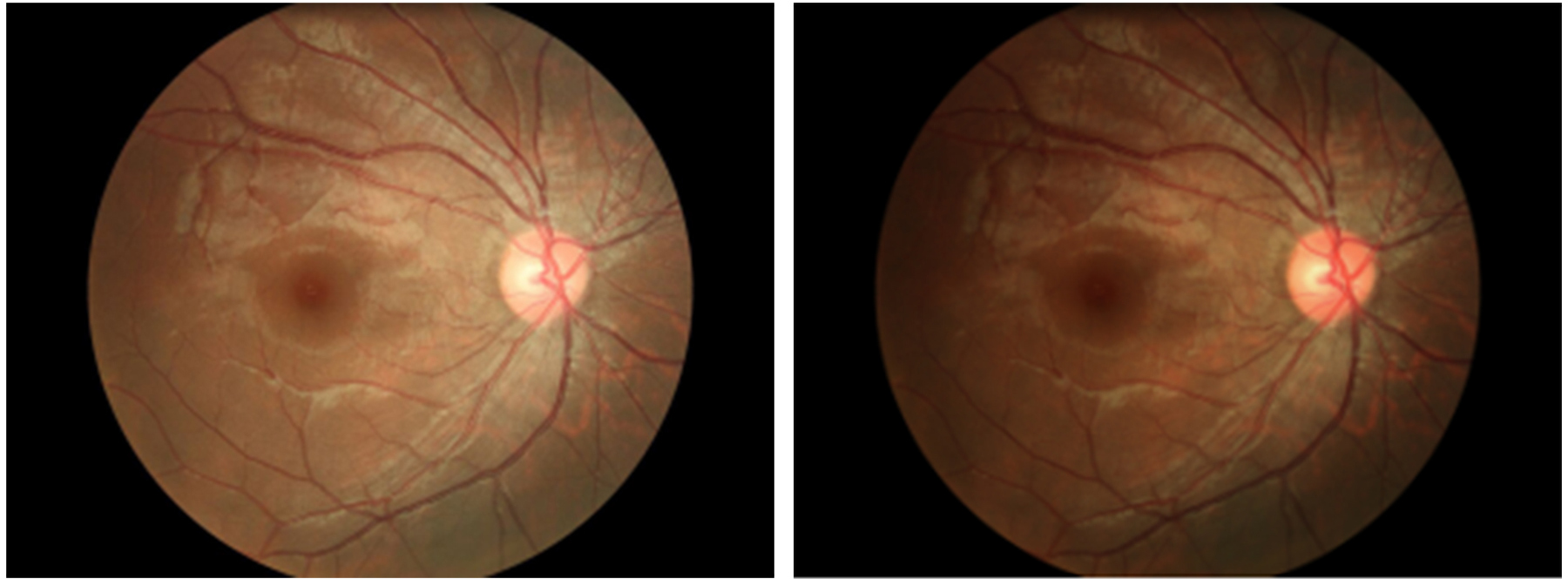

    digital fundus camera

    Innovate advanced optics technology, picture of the patient same eye taken by machine continuously without interval, the results arc almost same soft exposure light- reduce action of miosis after first exposure.

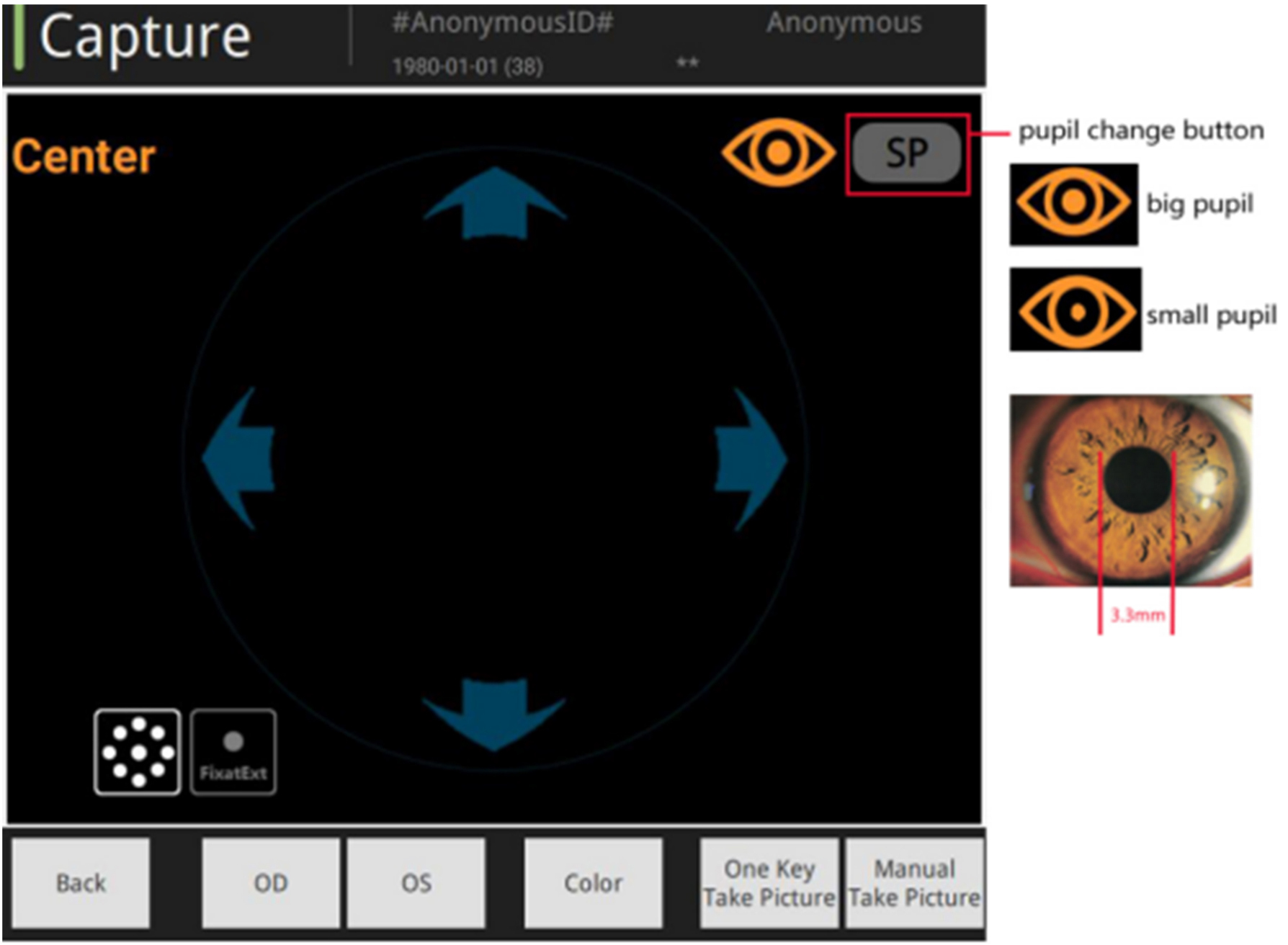

    non-mydriatic fundus camera

    Non-mydriatic design-minimum pupil size 3.3mm

    Achieve peripheral retinal fundus image. besides external fixation and 9 internal fixation targets, there are countless fixation targets at range of circle made up of 9 internal fixation targets. single picture up to 50 degree range.few pictures can complete examination and reduce.

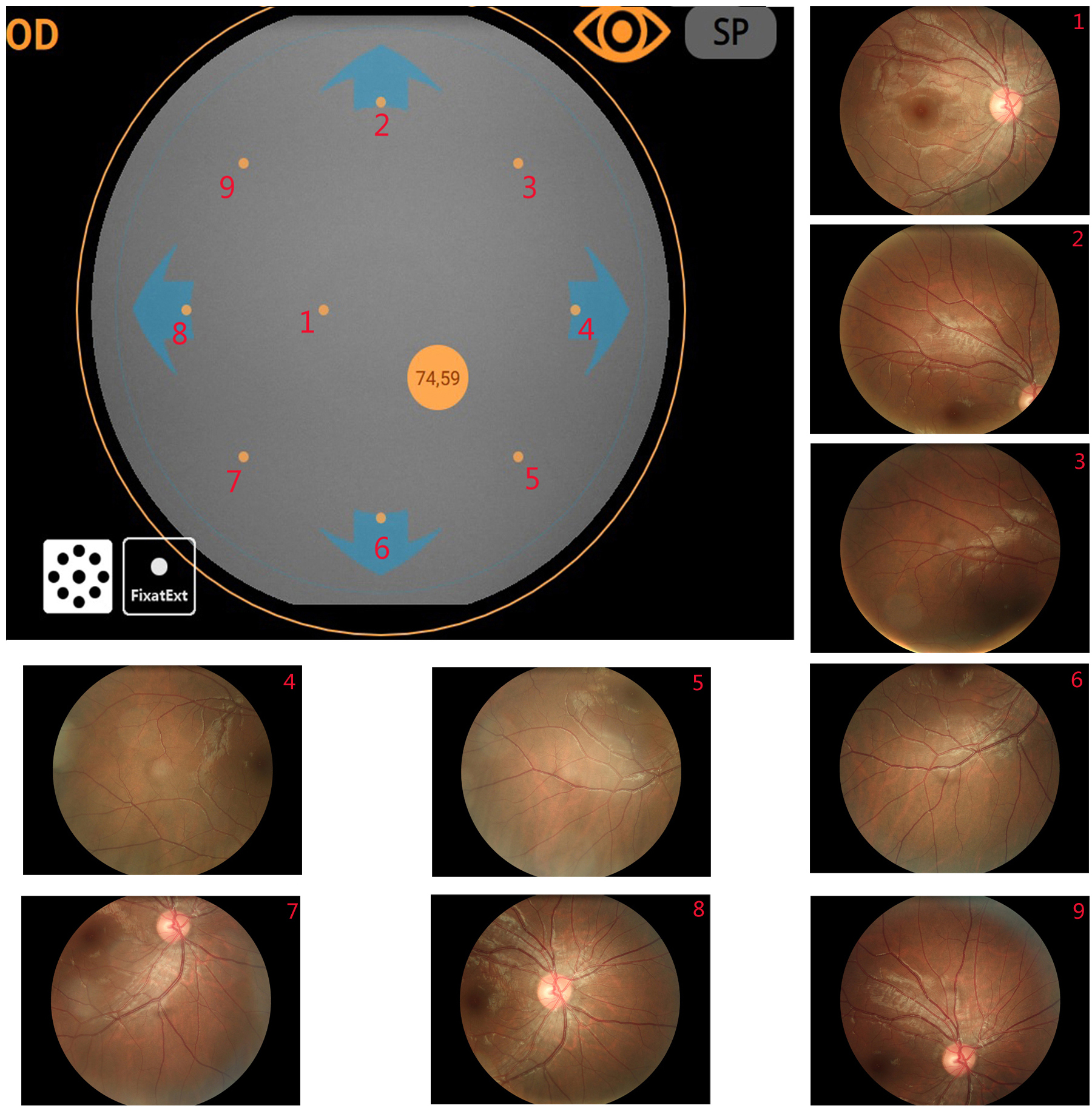

    ophthalmic fundus camera

    180 degree funds image:all side fixation,single picture with 50 degree

    Achieve peripheral retinal fundus image. besides external fixation and 9 internal fixation targets, there are countless fixation targets at range of circle made up of 9 internal fixation targets. single picture up to 50 degree range.few pictures can complete examination and reduce

    Quality components-step motor

    High quality step motor, hyper-static operation decrease noise when working create a quiteand comfortable environment for both operator and patient.

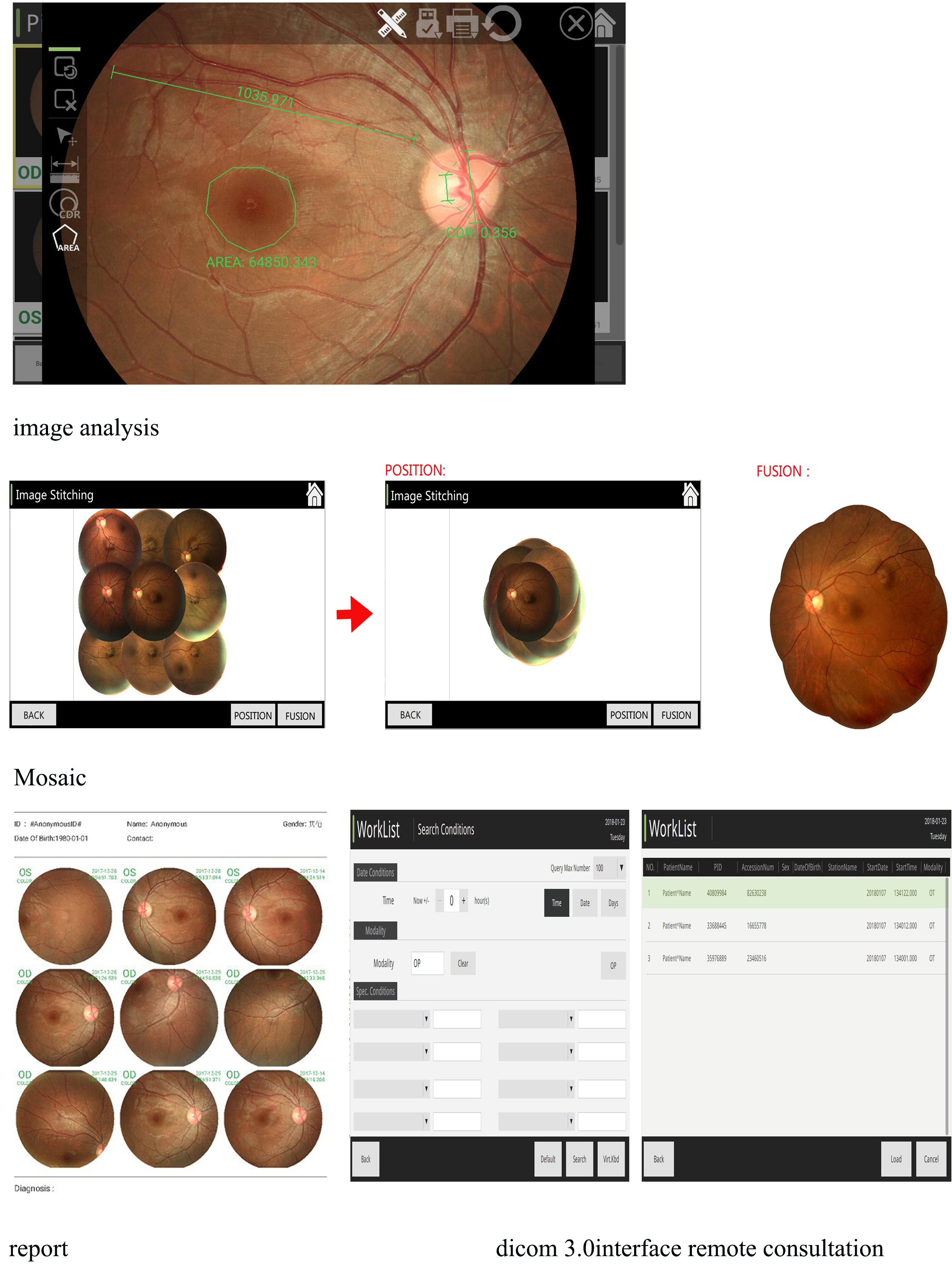

    auto fundus camera


    Multifunctional software system


    What is specification of our fundus camera with FFA ?

    Acquisition modes

    Non-mydriatic mydriatic photography anterior segment photography

    Fundus fluorescence angiography option

    Field of view 50 degree
    Minimum pupil size >=3.3mm
    Focus modes Auto manual
    Exposure modes Auto manual
    Operation Auto
    Image acquisition time Within 10 seconds
    Image resolution 18 megapixels
    Working distance 35mm
    Diopter compensation +- 25D
    Fixation External fixation/internal fixation
    DICOM 3.0 Yes
    Autofocus assist light Infrared LED
    Dimensions 380mm*550mm*475mm
    weight 26.5kg
    Power 100-240V, 50HZ/60Hz


    What is the image of our auto fundus camera ?

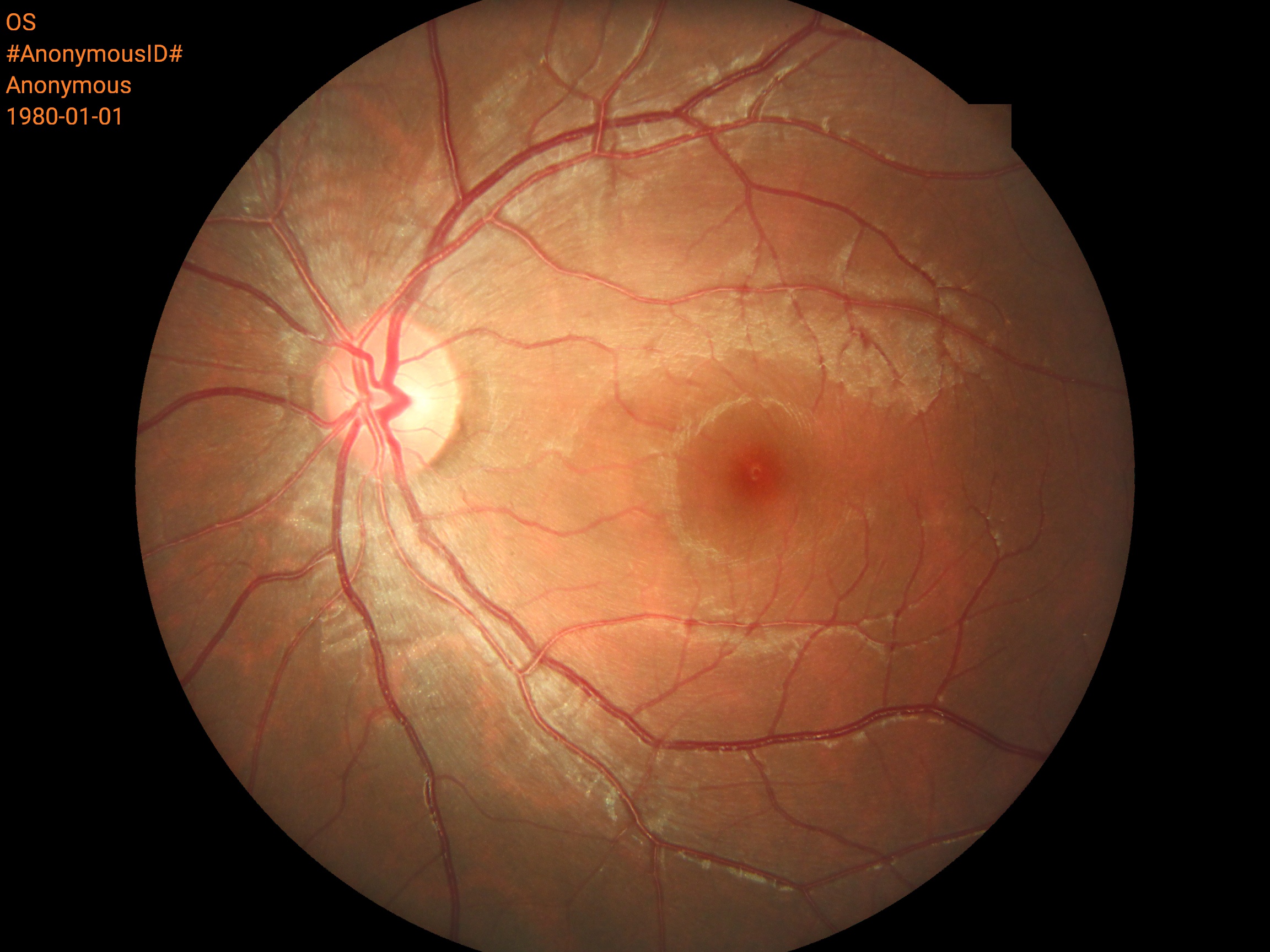

    Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA

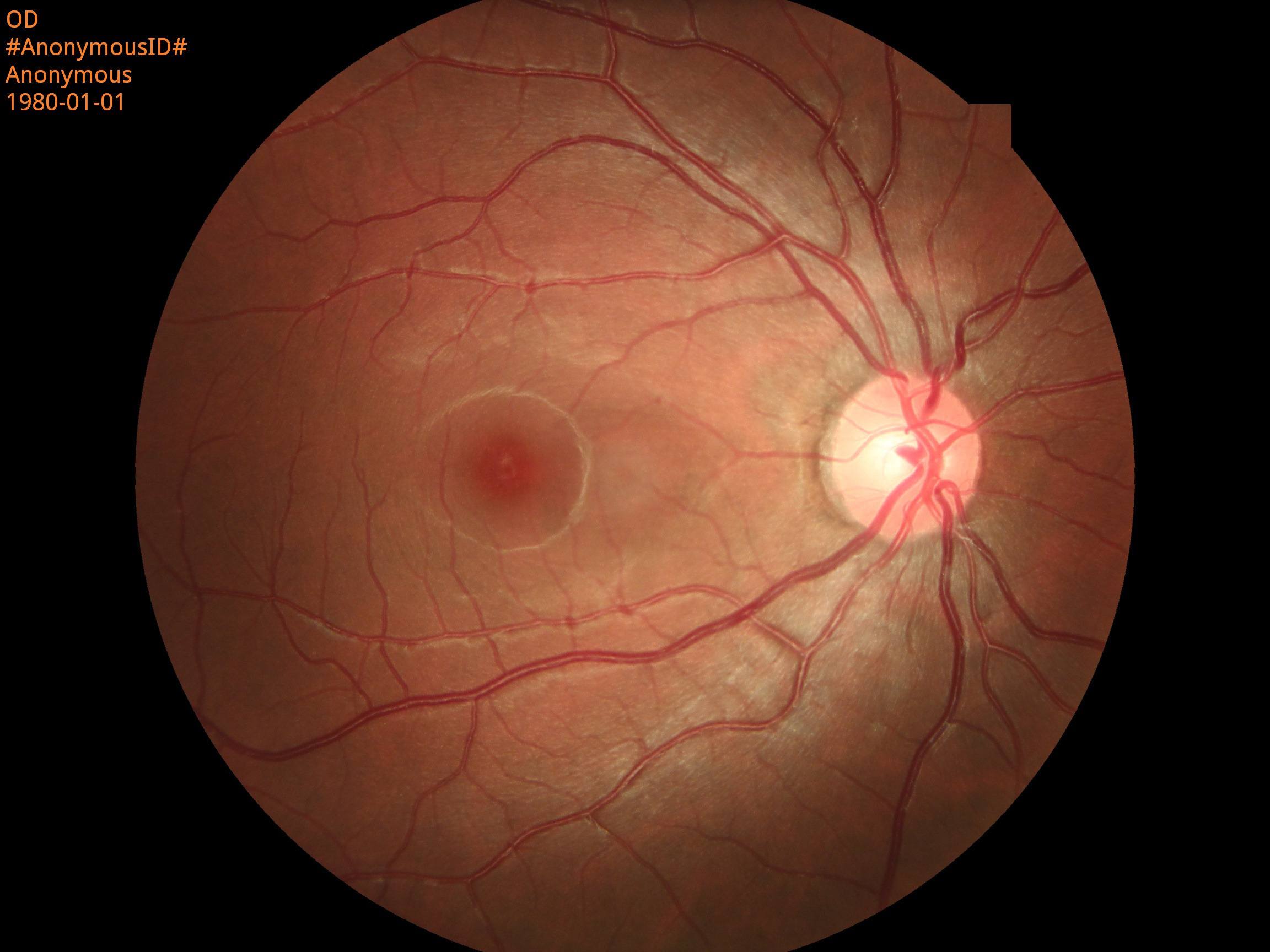

    Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA

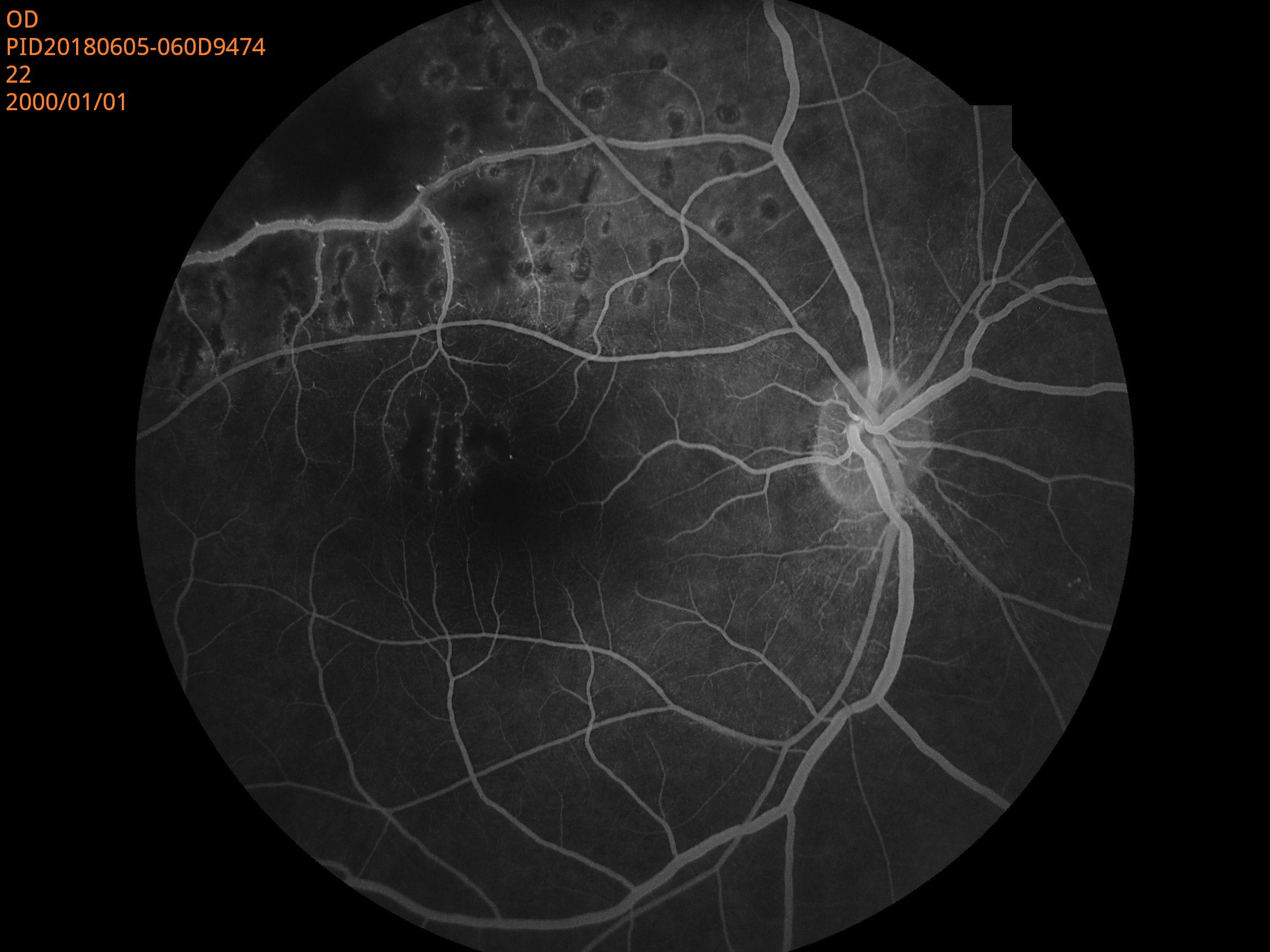

    FFA

    Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA

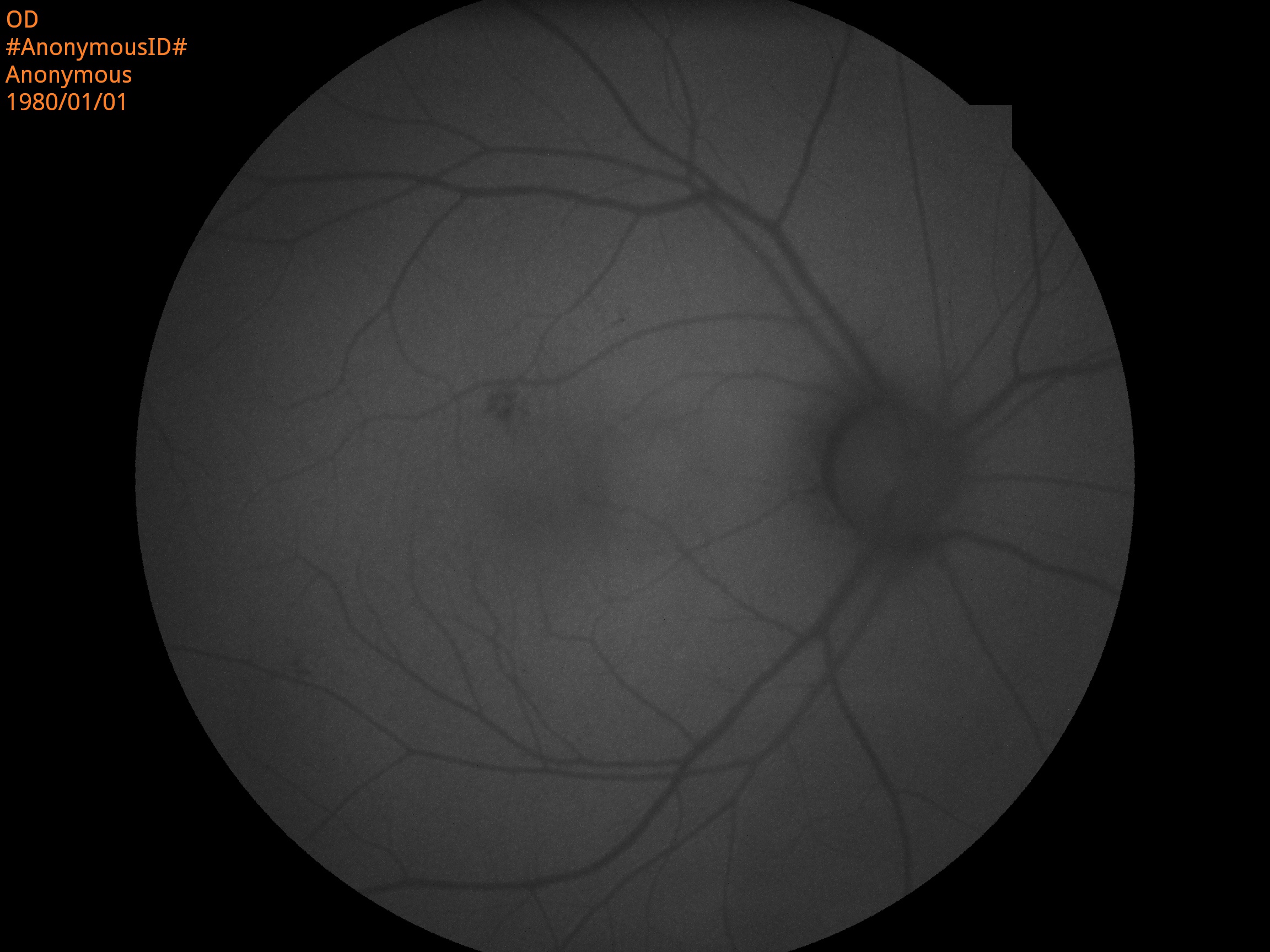

    FAF

    Ophthalmic Auto Digital Non-mydriatic Eye Fundus Camera With FFA
