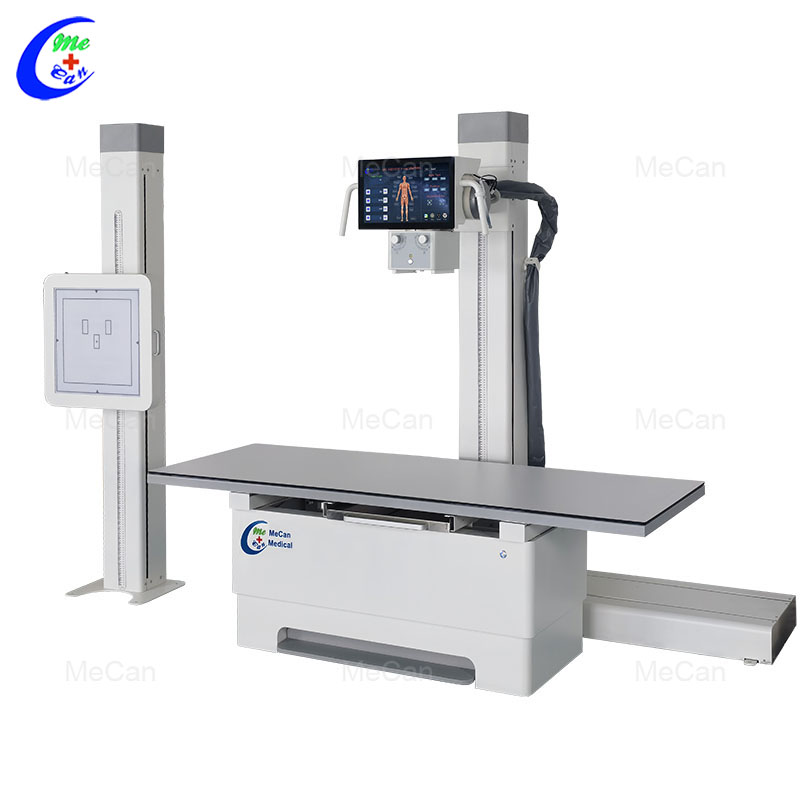

Analogue High frequency X-ray Machine
Analogue High frequency X-ray Machine
Specification of X-Ray Machine
| Model | MX-320A10 | MX-500A10 | MX-650B10 |
| Power | 32kW | 50kW | 65kW |
| Power supply | 50HZ,60HZ, wire diameter >4mm2, internal resistance<0.5Ω; 20/32/50kW(single phase 220V /two-phase 380V available), 65kW(only 380V) | ||
| mA | 10-400mA | 10-630mA | 10-800mA |
| mAs | 0.4-320mAs | 0.4-1000mAs | 0.4-1000mAs |
| KV | 40-125kV 1kV step | 40-150kV 1kV step | |
| Exposure time | 1ms~10000ms | ||
| Focus size | Default 0.6*0.6mm/1.2*1.2mm dual focus, toshiba (option) | ||
| Anode rotating speed/Anode heat capacity | 2800prm/ 1300kHU | 8400prm/1300kHU | |
| Generator frequency | 30kHZ/200kHZ(option) | ||
| Radiography table(W*L cm) | 73cm(W)*200cm(L), Move 74cm left and right, 20cm back and front | ||

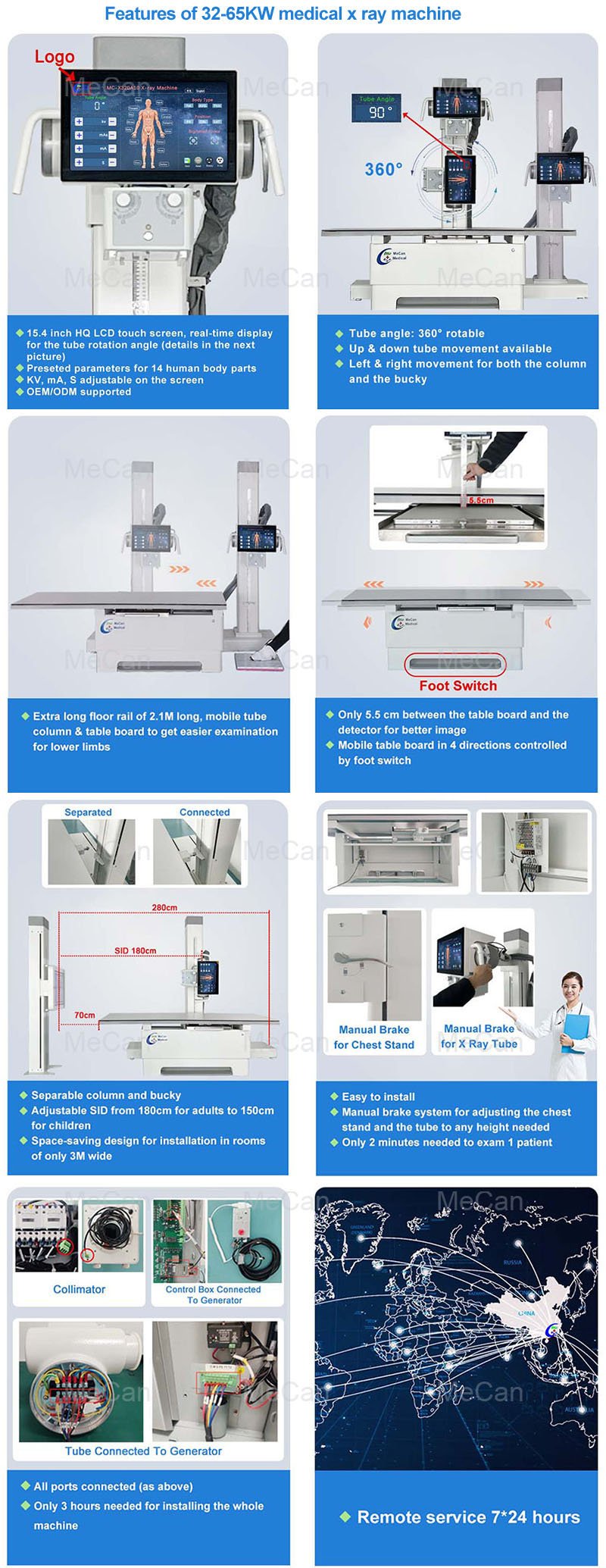

Features
1.15.4 inch HQ LCD touch screen, real-time display for the tube rotation angle
2.Preseted parameters for 14 human body parts
3.KV, mA, S adjustable on the screen
4.OEM/ODM supported
5.Tube angle: 360° rotable
6.Up & down tube movement available
7.Left & right movement for both the column and the bucky
8.Extra long floor rail of 2.1M long, mobile tube column & table board to get easier examination for lower limbs
9.Only 5.5 cm between the table board and the detector for better image
10.Mobile table board in 4 directions controlled by foot switch
11.Separable column and bucky
12.Adjustable SID from 180cm for adults to 150cm for children
13.Space-saving design for installation in rooms of only 3M wide
14.Easy to install, only 3 hours needed for installing the whole machine
15.Manual brake system for adjusting the chest stand and the tube to any height needed
16.Only 2 minutes needed to exam 1 patient
17.All ports connected (as above)
18.Remote service 7*24 hours
Test images
