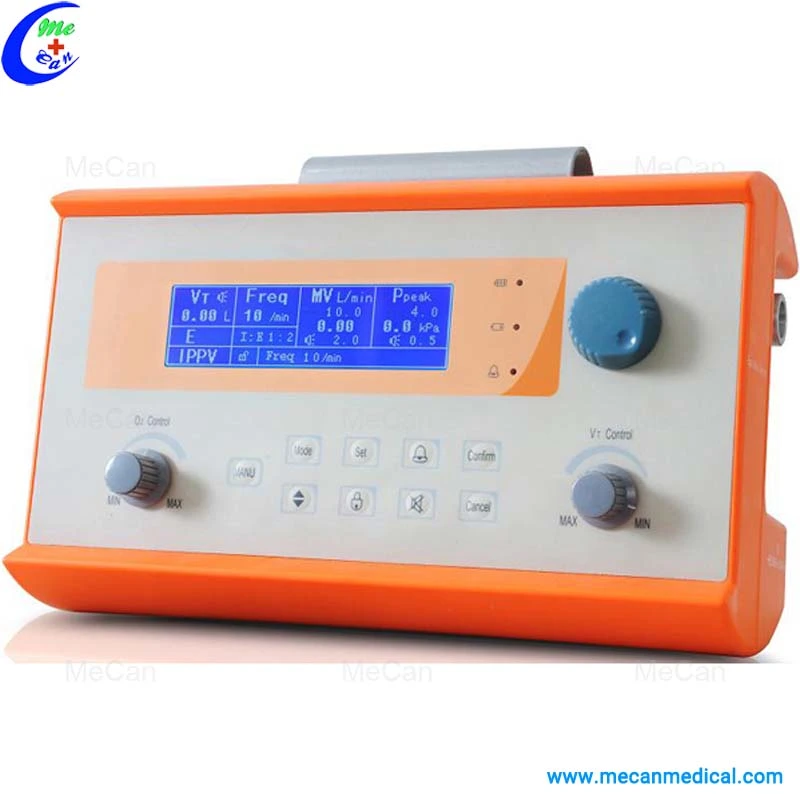

Portable Ambulance Transport Ventilator Machine

Portable Ambulance Transport Ventilator Machine

Main Features

1. Pneumatically driven electronically controlled transfer ventilator with A/C,D/C power supply

2. Time switch, volume control, pressure limit ventilation mode.

3. Built-in battery≥3hours, rechargable

4. LCD display ventilation parameters, preset parameters alarm indication and breathing waveform

5. Applied for adult and child

6. CE marked

Main specifications

Ventilation Mode: IPPV, IPPV+SIGH, A/C (SIPPV), SIMV, SPONT, MANUAL, PEEP(OPTIONAL), CPAP(OPTIONAL), BI-CPAP(OPTIONAL)

Parameters

Tidal volume: 0~2000ML

Ventilation volume per minute: 0L~20L Frequency: 4~99/min. (1~40/min under SIMV) I/E Ratio: 3:1~1:5

Inhalation trigger pressure: -2.0~+2.0Kpa O2 concentration: 48~100% adjustable. Pressure limitation: 1~5.5KPa

Safety Pressure ≤6KPa

Ventilation monitoring

Tidal volume，Minute ventilation，Frequency，Airway Pressure. Waveform of time-airway Pressure.

SPONT inhalation triggers indication, power indication. Alarm (Audible and visible reminding)

No tidal volume, ventilation volume is too high (low) , Airway Pressure is too high (low), frequency is too high, AC Power off ,back up battery voltage is too low.

Specification

Power : AC 110~22OV+/-10%，50 Hz~60Hz+/-1Hz, DC 12V 1.5A.

Gas source: Oxygen or Purify air

Working Pressure: 0.4Mpa. Allowable range: 0 .3~0.5MPa O2 cylinder: 3L (Max Pressure 15MPa)

Built-in back-up battery: DC 12V ≥3 hours. Net Weight: 3.5Kg

Dimensions: 310mm x 190mm x 115mm (L x H x W).

Reserve Condition: Temperature:-10~40℃，Relative humidity: ≤90%

Working condition: Temperature:5~40℃,.Relative humidity: ≤80%
