Ambulance Pantner Electronically Controlled Portable Ventilator

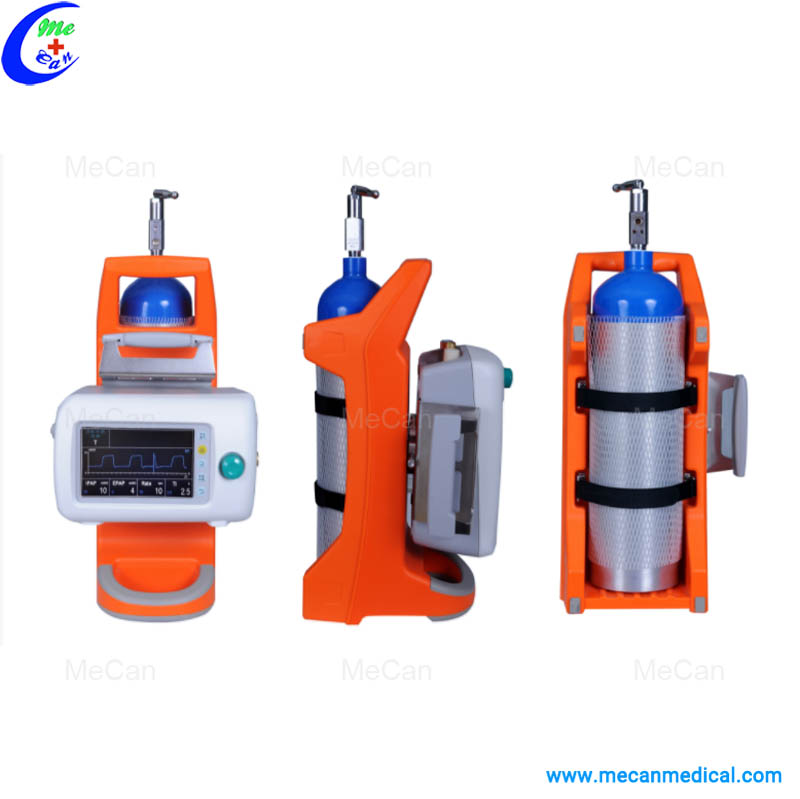

MCS-V06 Portable Ventilator

Description
With CE,ISO9001/13485 certificates
Applicable on both adult and pediatric patient
Safety
Equipped with air and oxygen tanks.
Built-in Li-battery for recharging and emergency case up to continuous 4 hrs.
MCS-V06 used for respiratory depression, respiratory paralysis and failure of emergency rescue.
Sturdy, encased in a solid housing designed to withstand the shock of being dropped, compressed, or stepped on.
Advanced monitoring and alarm systems for patient-related parameters (e.g. Pressure and flow) and ventilator function (e.g. air leakage, power failure).
Accurate delivery
Five-tuned ventilator settings also serve to make ventilation more tolerable for the patient.
Allow exact adaptation of pressure and flow characteristics to an individual patient’s needs.
Deliver an oxygen and air mix to a patient, with the concentration of the mix being adjustable.
Convenience & Easy control
Light weight 1.2kg.
Support remote control.
Humanized design helps the operator for easy handling.
All parameters set in one step makes every single process in easy way.
Ambulance Partner
DC 12V charge, AC 100V-240V.
3L Oxygen cylinder for Extra usage.
Regulator compatible with on-vehicle cylinder.
Oxygen circuit compatible with on-vehicle gas supply system.
MCS-V06 also can be equipped on the transport bed, back of chair, stretcher or even to be placed on the ground standalone.
Multiple Functions
Applied for child and adult.
Volume control delivery with multi-function working mode.
VCV,PCV,SIMV,PSV(Optional), Manual for all case of patients like ICU ventilator purpose.

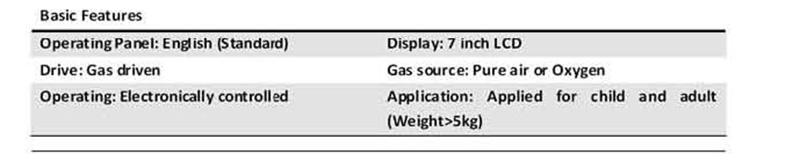

Basic Features:

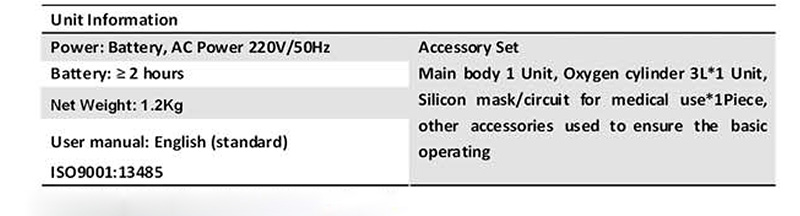

Unit Information
