Medical Equipment Portable AED Defibrillator
Medical Equipment Portable AED Defibrillator

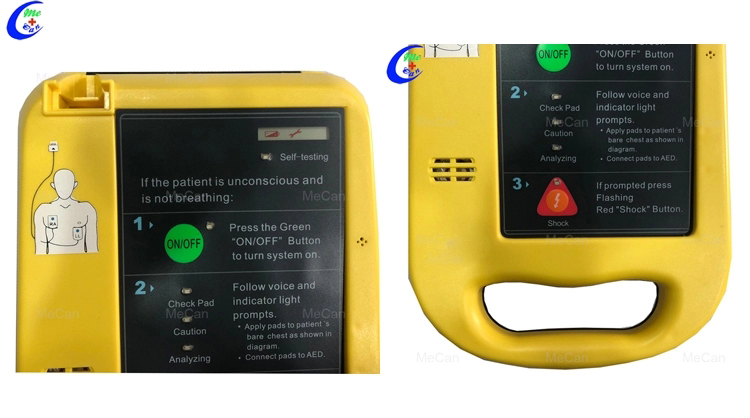

Our AED is a portable model,which can be equipped at home, in public places, or in the hospitals.It’s easy and convenient to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient’s ECG data, and then takes corresponding defibrillation energy level according to patient’s current situation, which has greatly improved success rate, and maximum reduced damage to patient’s heart.
Main Features
1. Three-step defibrillation process
2. Two-button operation
3. Extensive voice and visual prompts for the operator
4. Biphasic energy output
5. Lock-out protection to prevent inadvertent defibrillation
6. Continuous event recording for reporting each use to a printer or computer
7. Weekly self-test to ensure readiness
Specification
Output Biphasic Truncated Exponential Energy Sequence 150, 150, 200J Charge Time 8 sec. to 150J; 10 sec. to 200J (New Battery) Analysis Time 9 sec. Audible Prompts 22 audible prompts Visual Prompts LED prompts Controls Two buttons-ON/Off, Shock Output Energy Accuracy ±15% into any impedance from 25 to 175Ω The Maximum Voltage 1200±50V Output disabled 20Ωto 200Ω
Battery
PhysicalPart No. CR123A-4*2 Non-rechargeable 12V DC, 2.8Ah Capacity At 150 Joules
| Dimensions | 303*216*89mm |
| Weight | 2.0kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
| Storage Temperature (without battery) | -20°C to 55°C |
| Storage Humidity (without battery) | Up to 95% (non-condensing) |
