China Digital 6 Channel ECG Machine

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCS-ECG06

    China Digital 6 Channel ECG Machine

    Features

    1. Portable delicate design, big color LCD to display, very easy to operate

    2. Accurate pulse pace identification and excellent automatic analysis function

    3. High accuracy digital filter, auto baseline adjustment

    4. 12 leads synchronously acquisition and display;

    5. Record mode : 3ch, 3ch+, 3ch+++, 6ch

    6. Working modes: Manual / Auto / Analysis / Storage

    7. 800×480 graphic, 7 inch color LCD screen

    8. 40 patient cases save and replay

    9. Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.

    10. 112mm*20m high resolution thermal printing

    11. Language : English, Chinese, French, Italian, Spanish, Russian

    Technical Specification

    Lead

    Standard 12 leads

    Time constant

    ≥3.2s

    Lead acquisition

    12bit/1000Hz (synchronously 12 leads)

    Frequency response

    0.05~160Hz(-3db)

    Work mode

    Man / Auto/Analysis/Storage

    Noise level

    <15μVp-p

    Filter

    AC Filter : 50Hz / 60Hz

    EMG Filter : 25Hz / 45Hz

    Anti-Drift Filter : 0.15Hz (Adaptive)

    Inter-channel Interference

    ≤0.5mm

    CMMR

    ≥120dB (with AC FILTER)

    Sensitivity

    2.5,5,10,20, 40, Auto  (mm/mV)

    Input circuit

    Floating; Protection circuit against

    Defibrillator effect

    Recording mode

    3ch, 3ch+, 3ch+++, 6ch

    Default Man. Mode is  3ch  format

    Default Auto. Mode is  6ch+ format

    Input Impedance

    ≥50MΩ

    Paper speed

    6.25,12.5,25,50mm/s(±3%)

    Input circuit current

    ≤0.05μA

    Paper

    112mm *20m Roll paper

    Patient current leakage

    <10μA

    Communication

    RS232/ USB port  ( not available )

    Calibrating voltage

    1mV±2%

    Power Supply

    AC 110-230V(±10%),50/60Hz(±1Hz),40VA

    DC Built-in rechargeable battery,14.4V(2000mmAh)

    Voltage tolerance

    ≥±500mV

    Dimension/Weight

    300mm×230mm×75mm / 2.8Kg


    Package

    1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs

    4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kg

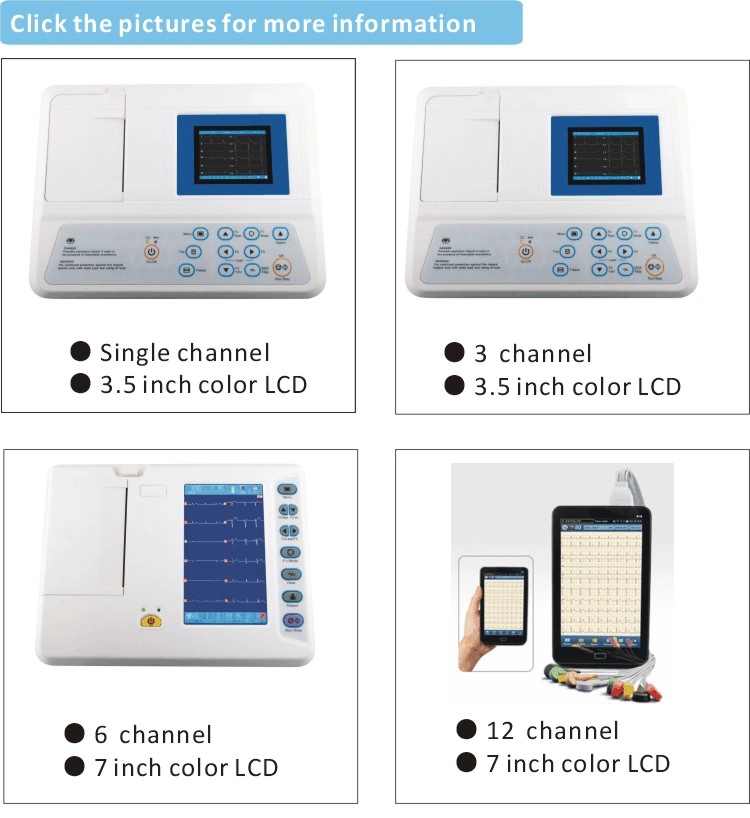

    More Options
