500mA High Frequency Digital Radiography Fluoroscopy X Ray Machine
500mA High Frequency Digital Radiography Fluoroscopy X Ray Machine
What is application of our digital radiography x-ray ?
Our digital radiography system has the function of fluoroscopy and spot film radiography,which can be applied for the radiography of alimentary tract, biliary tract,urinary tract, veins of lower extremity and so on. It can also operate on thereposition of fracture and take the corpus alienum under the pattern offluoroscopy.
What are features of our digital radiography equipment?
1. Good image clarity and high contrast, easy to identify nidus.
1) Adopt Toshiba image intensifier, enhance grayscale, resolution and contrast to make image clearer
2) Equipped with imported CCD camera, easy to accurate diagnose at real time dynamic observation
3) Progressive input/output medical definition television system, low noise, high resolution and contrast
4) Imported grid improves X-ray quality, to get good image quality
5) Tube voltage change in short time, high accuracy exposure
2. It’s simple flexible and convenient to operate.
1) Visual display interface
2) Digital image processing system

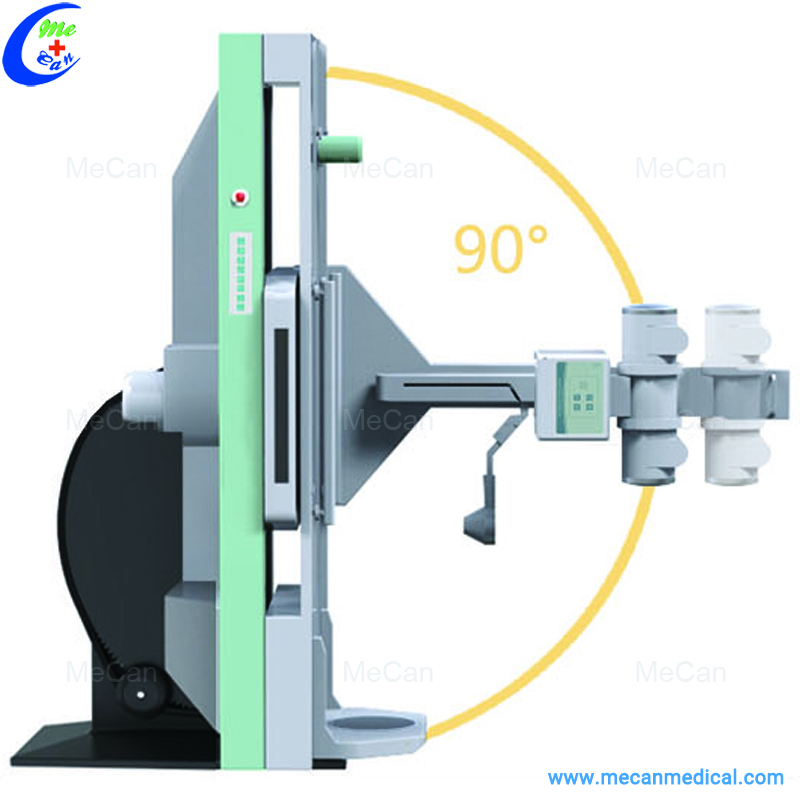

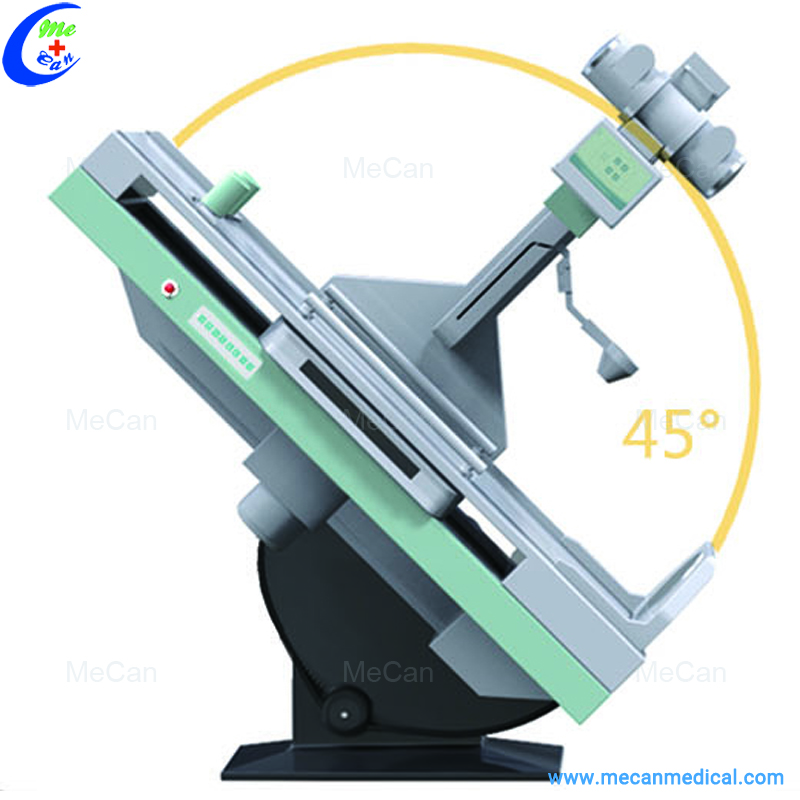

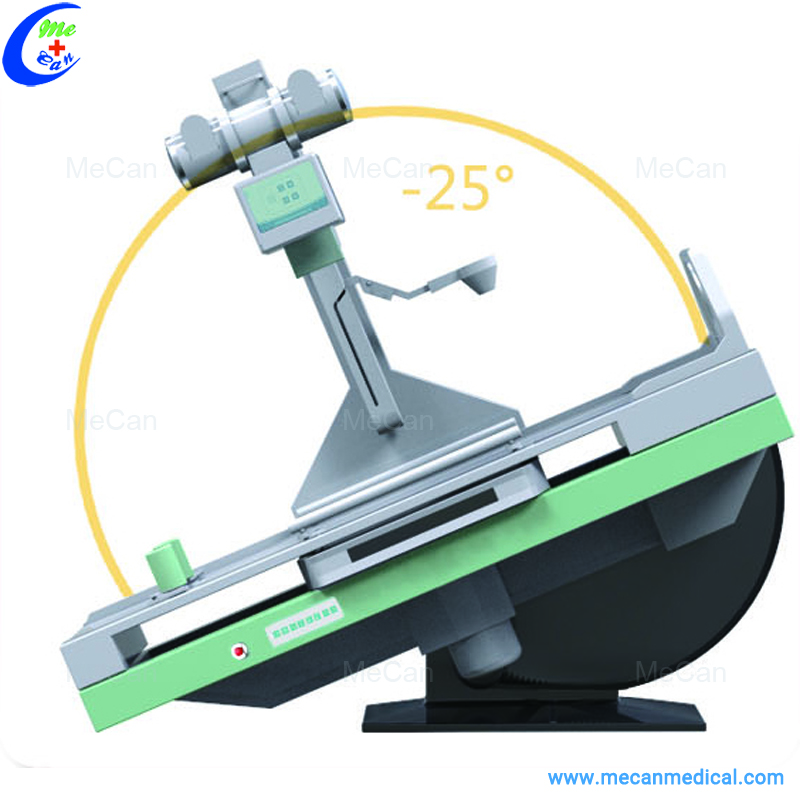

3) Diagnostic table rotating range 90 ° ~ 0 ° ~ -25 °
4) One-button operation handle
5) Bed-control is easy to operate
6) Widely spot film device and imaging system movement range
3. Security
1) Computer program control and remote operation, avoid X-ray radiation hazard
2) Automatic brightness control system (IBS), get the best image in various parts of the body and at the same time, maximize the protection of patients and health care workers
3) The electric multi-leaf limier, adjust X-ray irradiation range to reduce X-ray radiation hazard
4) Inverter control technology
5) Reliable, high precision angular displacement sensor technology
| Item | Content | Parameters | |
| Power supply | Voltage | 380V±38V | |
| Frequency | 50Hz±1Hz | ||
| Capacity | ≥40kVA | ||
| Internal resistance | ≤0.17Ω | ||
| X-ray high voltage system | Radiography | Tube voltage | 44kV—125kV, 41 steps |
| Tube current | 32mA—500mA, adjust stepped | ||
| Exposure time | 0.02s—4s, 21 steps | ||
| Fluoroscopy | Tube voltage | 44kV—110kV, 2kV/step | |
| Tube current | 0.5mA—5mA | ||
| X-ray tube | Model | HXD52-30、50/125 | |
| Output power | Big focus:50Kw | ||
| small focus:30kW | |||
| Anode thermal capacity | 140KJ（180KHU） | ||
| Module thermal capacity | 1100kJ(1500kHU) | ||
| Rotating anode | 2800rpm | ||
| Focus | 2.0mm /1.0mm | ||
| Remote diagnosis table | Table rotating range | 90°~0°~-25° | |
| Table surface Horizontal movement | ±110mm | ||
| Longitudinal movement of frame and spot film device | ≥720mm | ||
| Film size | 8″×10 ″—14″×17″ | ||
| Spot film division method | Whole film, 2-division film, 3-division film, 4-division film | ||
| Control mode | Remote control | ||
| Bed-control | |||
| Soft boot and stay of frequency conversion | |||
| Limiter | electric multi-leaf | ||
| Grid | Grid density: 103L/INCH | ||
| Grid Ratio :10:1 | |||
| focusing distance 120cm | |||
| 15″×18″ | |||
| Image system | Image intensifier | Toshiba 9’’ | |
| CCD camera | Imported 0.47 mega pixel | ||
| Monitor | 14’’ Medical high definition monitor, Horizontal center resolution 1000 line, margin 800 line | ||
| video bandwidth12.5MHz, 50bit | |||
| 25 frame/s | |||
| Digital image processing system | High definition progressive output | ||
| （CCU center control） | 8 grades noise reduction | ||
| 8 images in storage | |||
| LIH, mirror image, Negative, OSD | |||
| Item | Quantity |
| Control console | 1 |
| X-ray high voltage generator | 1 |
| Cassette type remote diagnosis table | 1 |
| 9’’ image intensifier | 1 |
| Imported 0.47 mega pixel CCD camera | 1 |
| Medical high definition monitor | 2 |
| X-ray tube | 1 |
| Electric multi-leaf limiter | 1 |
| High voltage cable | 1 |
| Item | Packing Dimension(mm) | NW(Kg) | GW(Kg) |
| 1 | 2175*1390*1476 | 1206 | 1361 |
| 2 | 1675*1040*1020 | 227 | 317 |
| 3 | 840*420*1085 | 150 | 172.5 |
| 4 | 610*500*935 | 261 | 280.5 |
