Hematology Analyzer
Lab Equipment CBC Analyzer 5 Part Hematology Analyzer 1
Lab Equipment CBC Analyzer 5 Part Hematology Analyzer 2
Lab Equipment CBC Analyzer 5 Part Hematology Analyzer 1
Lab Equipment CBC Analyzer 5 Part Hematology Analyzer 2

Lab Equipment CBC Analyzer 5 Part Hematology Analyzer

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Description:
This 5 part hematology analyzer has 10.4 inch TFT touch screen,it can test 23 parameters, 3 histograms and 3 scattergrams,the test speed is 60 test/hour.
Model:
MCL-HA08

    Lab Equipment CBC Analyzer 5 Part Hematology Analyzer


    Main Features

    1. WBC 5-part differentiation, 23 reportable parameters, 3 histograms and 3 scattergrams.

    2. Whole blood mode, Capillary whole blood mode and Prediluted mode.

    3. Tri-angle Laser scatter + Chemical dye + Flow cytometry technology.

    4. Dedicated optical counting channel for Basophil measurement.

    5. 10.4-inch large TFT touch screen with user-friendly software.

    6. Powerful capability of flagging abnormal cells· Large storage capacity: up to 50,000 samples.

    7. Throughput: 60 samples per hour.

    8. Sample volume is only 15μL which is ideal for pediatrics.

    9. Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiation even on samples with high Eosinophil.

    10. The real dual-optical counting channels enable the DIFF and BASO to be analyzed more precisely and efficiently.


    hematology analyzer

    5 Part Hematology Analyzer

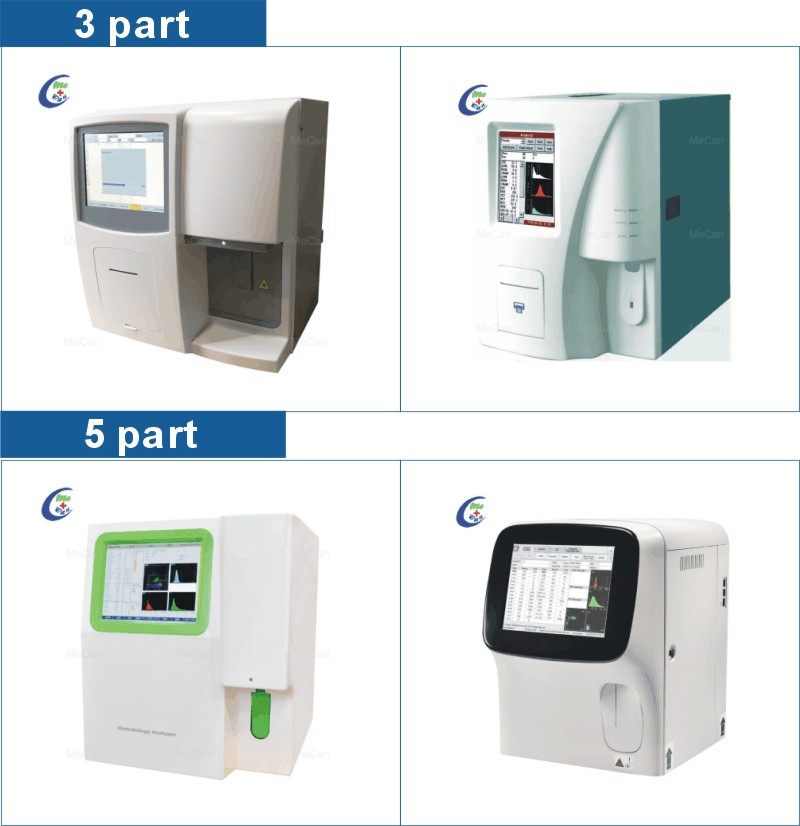

    Other kinds of hematology analyzer for your option


    Lab Equipment CBC Analyzer 5 Part Hematology Analyzer 5


    Principle Impedance method for WBC, RBC, PLT counting
    Cyanide-free reagent for Hemoglobin test
    Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel
    Parameters WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#,
    RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV,
    PCT, and 4 research parameters LIC%, LIC#, ALY%, ALY#

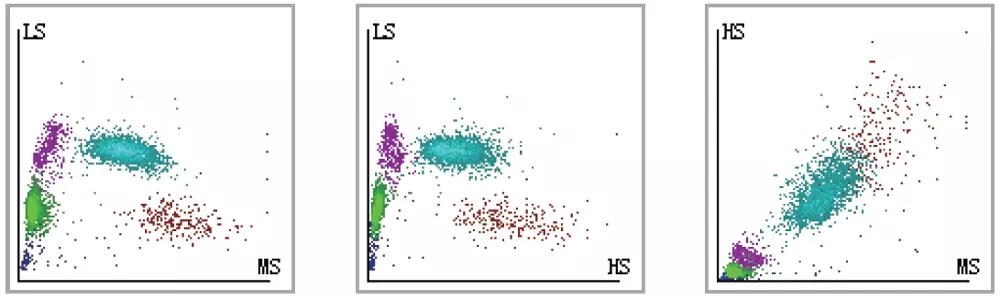

    3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms
    Throughput Up to 60 samples per hour
    Sample Volume Whole Blood: 15ul
    Pre-diluted: 20ul
    Test Mode CBC, CBC+DIFF
    Performance
    Carryover Repeatability Linearity
    WBC ≤0.5% ≤2.0% (4-15×109/L) 0.00-300×109/L
    RBC ≤0.5% ≤1.5% (3.5-6.0×1012/L) 0.00-8.5×1012/L
    HGB ≤0.5% ≤1.5% (110-180g/L) 0-250g/L
    PLT  ≤1.0%   ≤4.0%  (150-500×109/L) 0.00-3000×109/L
    Data Storage Capacity Up to 50,000 results including numeric and graphical information

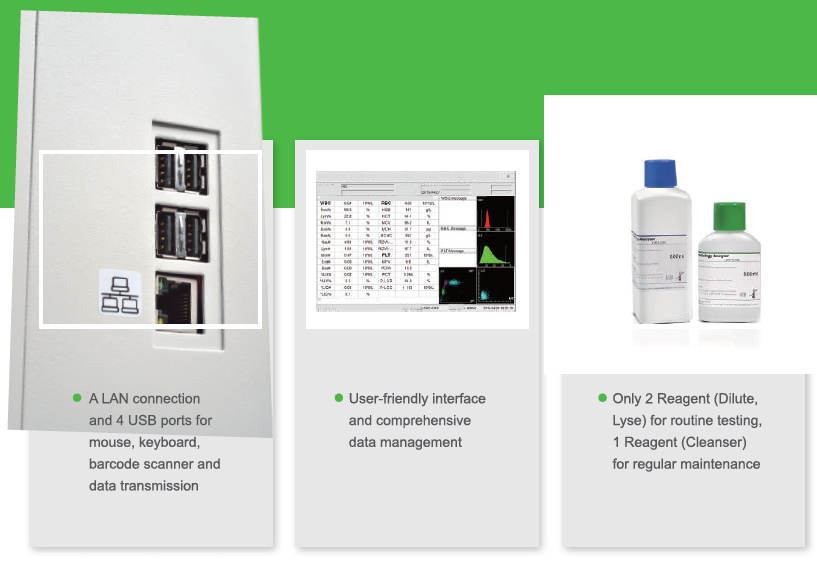

    Communication LAN port supports HL7 protocol
    Operating Environment Temperature: 15℃-30℃
    Humidity: 30-85%
    Air Pressure: 70-106 kPa
    Power Requirement A.C. 100-240V,  ≤300VA, 50/60Hz
    Dimension and Weight Package Size: 630mm(L)*570mm(W)*590mm(H)
    Gross Weight: 35kg
