Surgical Portable Bipolar Electrocautery Machine
Surgical Portable Bipolar Electrocautery Machine
Features
1.Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
2.Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.
3.Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
4.Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
5.Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6.Both hand and foot controlled.
7.Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
8.Memory for at least 10 freqfrequently used programs.
9.Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10.The ESU unit can be connected with laparoscope and endoscope, etc.
11.Protection against over-voltage and over-current.
12.Defibrillation protected.
13.Mounted on a 4 wheels cart(optional).
14.Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specification
Mono-polar Cut | Pure cut:1W~300W( Load 800Ω) |
Blend:1W~200W(Load 800Ω) | |
Mono-polar Coag | Spray Coag:1W~80W( Load 800Ω) |
Forced Coag:1W~120W( Load 800Ω) | |
Bipolar | Bipolar Coagulation: 1W~50W( Load 200Ω) |
Power Consumption | ≤1100VA |
Power | 220V±22V, 50Hz±1Hz(110V±11V, 60Hz) |
Operating frequency | 512KHz |
Power rating | 1100VA±10% |
Standard Configuration
Main unit | 1 set |
Electrosurgical Pencil | 5 pcs |
Electrosurgical Pad | 10 pcs |
Electrosurgical pad cable | 1 pc |
Footswitch | 1 set |
Bipolar Forceps | 1 pc |
Bipolar forceps cable | 1 pc |

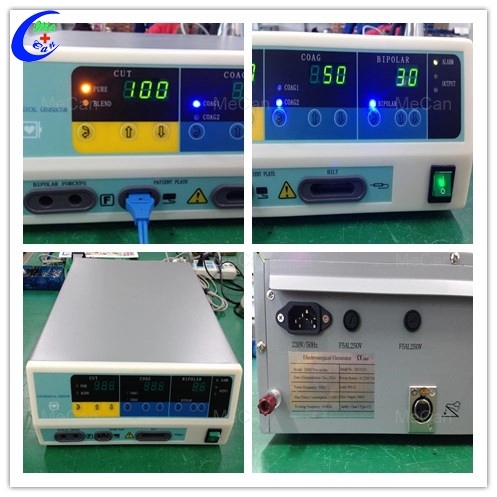

More Pictures

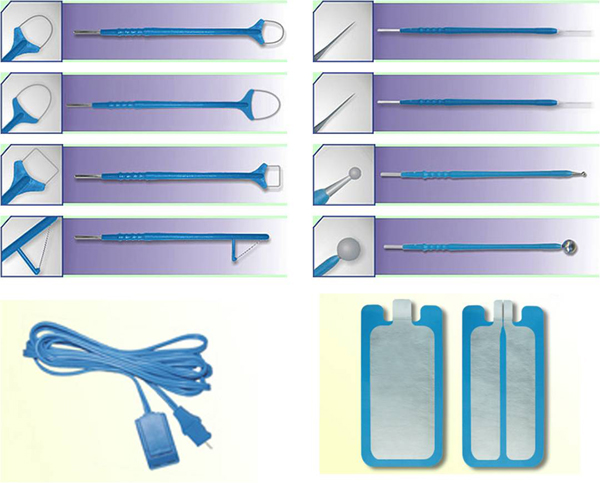

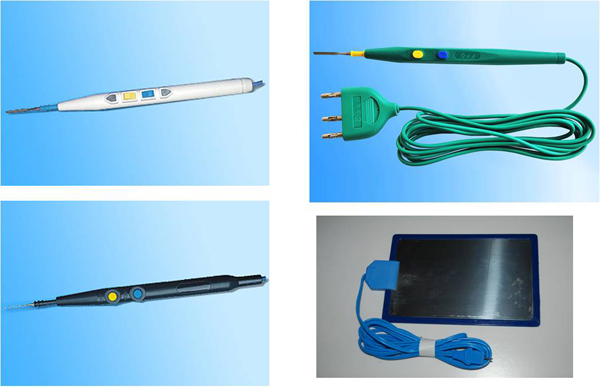

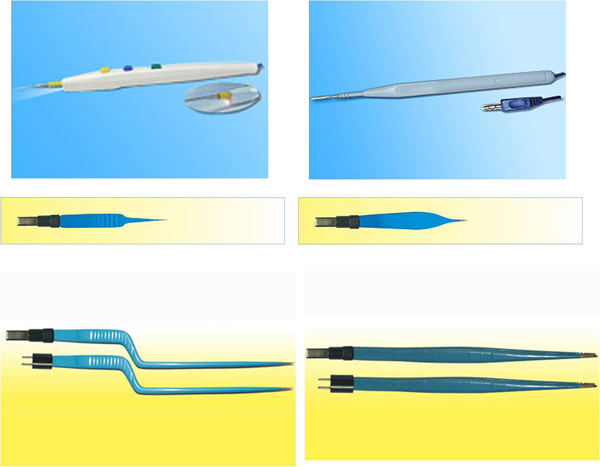

Accessories of the electrosurgical cautery unit
