Hematology Analyzer
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 1
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 2
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 3
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 4
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 5
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 6
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 1
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 2
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 3
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 4
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 5
3-part Hematology Analyzer, Fully-automatic Hematology Analyzer 6

3-part Hematology Analyzer, Fully-automatic Hematology Analyzer

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCL-880/900

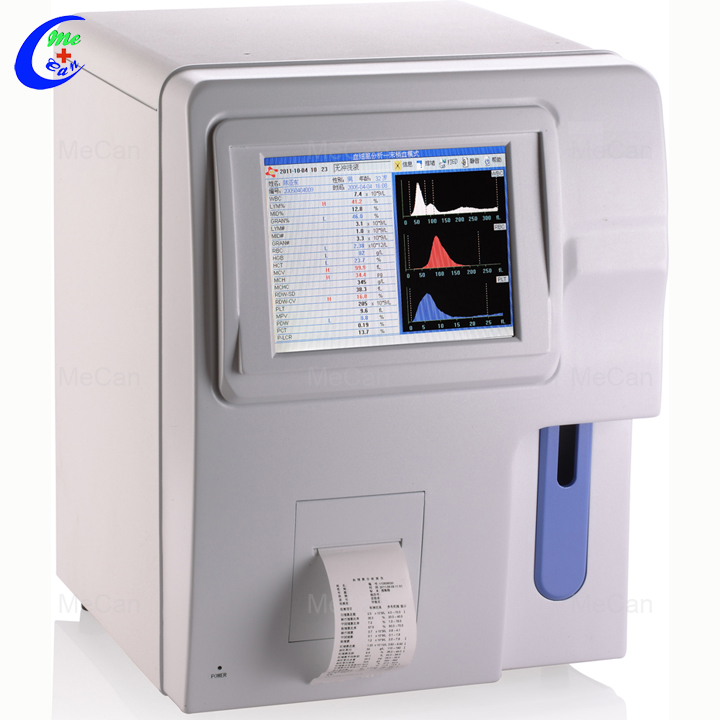

    3-part Hematology Analyzer, Fully-automatic Hematology Analyzer

    ------Single Channel, 35 samples test ,Model: MCL-880

    3-part differential, 23 parameters
    Single channel, 35 T/H
    8.4 inches TFT
    Data storage:>10000results of sample,including 3 histograms
    Cheapest Price!
    What is the detail of our 35T/H Hematology Analyzer?
    3-part differentiation of WBC, 23 parameters, single channel counter
    Volume measurement by time ,not wrong warning
    Adanced valve technology,long life
    RS232 interface, PC connecting
    Up to 35 samples test per hour
    Electrical resistance for counting and SFT method of Hemaglobin
    Low sample comsumption : venous 9.8 ul, capillary 9.6 ul, prediluted 20 ul for twice testing one time
    8.4” color TFT, Windows interface all testing parameter displayed simultaneously
    Windows operation system graphical buttons mouse and keyboard operation
    Double convolution and intelligent fitting
    Automatic diluting , Mixing , rinsing and clog clearing
    Automatically sample probe cleanning (inside and outside)
    Large storage capacity: up to 10,000 samples +3 histograms
    Internal thermal-sensitive printer or external printer.
    RS232 interface, PC connecting
    Main Technical Specifications
    Methodology: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
    Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
    Work mode : Single Channel + unique Hemoglobin test system
    Sample volume: 9.6μL for Venous and capillary mode, 20μL for prediluted mode
    Throughput: More than 35 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions
    Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
    Operation langue: English
    QC control : X-B, L-J, X, SD, CV %
    Refrence Value Setting : Male , Female, Children, Neonate
    Alarm : 25 test of alert messages
    Input / output : RS232, parallel printer and keyboard
    Print : Graphic thermal printer with various printing format,  optional external printer
    Temperature : 18℃ - 30℃,wet ≤ 10-90%
    Power supply : 220 V ±22 VAC, 50±1Hz
    Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
    Weight : 20 KG
    Precision
    Parameters                 linear range            CV %
    WBC( 10 9 / L )              0.0 - 99.9              ≤2%
    RBC ( 1012 / L )              0.0 - 9.99             ≤1.5%
    MCV ( fL )                  40-150                ≤0.5%
    PLT ( 10 9 / L )              0-999                  ≤4.0%
    HGB( g/L )                 0.0-300.0               ≤1.5%
    Parameters
    WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR
    3 –histograms : WBC,RBC and PLT

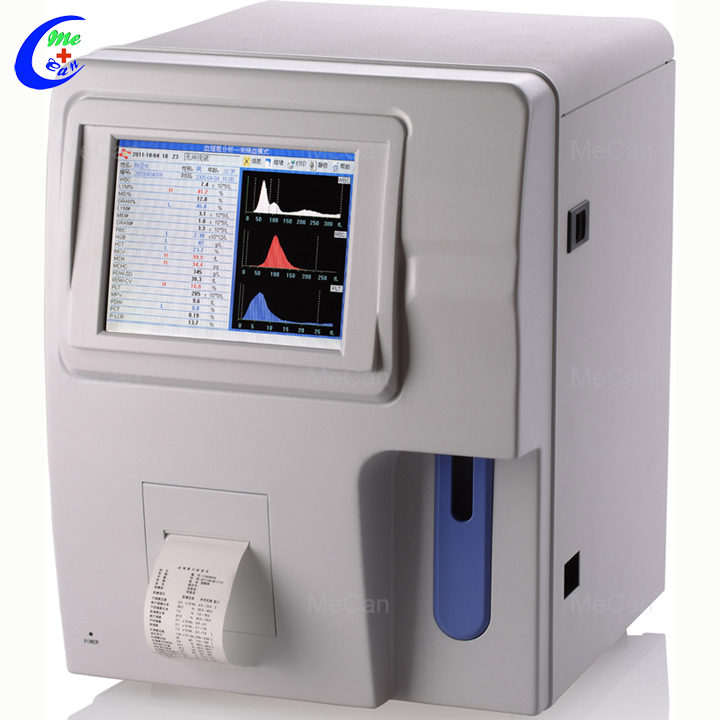

    Fully-automatic Hematology Analyzer


    ------Double Channel, 60 samples test ,Model: MCL-900
    3-part differential, 23 parameters
    Double channel, 60 T/H
    8.4 inches TFT
    Data storage:>10000results of sample,including 3 histograms
    Cheapest Price!
    What is the detail of our 60T/H Hematology Analyzer?
    3-part differentiation of WBC, 23 parameters, Double channels counter
    Volume measurement by time ,not wrong warning
    Adanced valve technology,long life
    RS232 interface, PC connecting
    Up to 60 samples test per hour
    Electrical resistance for counting and SFT method of Hemaglobin
    Low sample comsumption : venous 9.8 ul, capillary 9.6 ul, prediluted 20 ul for twice testing one time
    8.4” color TFT, Windows interface all testing parameter displayed simultaneously
    Windows operation system graphical buttons mouse and keyboard operation
    Double convolution and intelligent fitting
    Automatic diluting , Mixing , rinsing and clog clearing
    Automatically sample probe cleanning (inside and outside)
    Large storage capacity: up to 10,000 samples +3 histograms
    Internal thermal-sensitive printer or external printer.
    RS232 interface, PC connecting
    Main Technical Specifications
    Methodology: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
    Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
    Work mode : Single Channel + unique Hemoglobin test system
    Sample volume: 9.6μL for Venous and capillary mode, 20μL for prediluted mode
    Throughput: More than 35 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions
    Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
    Operation langue: English
    QC control : X-B, L-J, X , SD, CV %
    Refrence Value Setting : Male , Female, Children, Neonate
    Input / output : RS232, parallel printer and keyboard
    Print : Graphic thermal printer with various printing format,  optional external printer
    Temperature : 18℃- 30℃,wet ≤ 10-90%
    Power supply : 220 V ±22 VAC, 50±1Hz
    Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
    Weight :  20 KG
    Precision
    Parameters                 linear range            CV %
    WBC( 10 9 / L )              0.0 - 99.9              ≤2%
    RBC ( 1012 / L )              0.0 - 9.99             ≤1.5%
    MCV ( fL )                  40-150                ≤0.5%
    PLT ( 10 9 / L )              0-999                  ≤4.0%
    HGB( g/L )                 0.0-300.0               ≤1.5%
    Parameters
    WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR
    3 –histograms : WBC,RBC and PLT

    Fully-automatic Hematology Analyzer
