18 channel digital emergency equipment ECG ECG machine

Quantity:
Contact Now
add to cart
All Products

18 channel digital emergency equipment ECG ECG machine

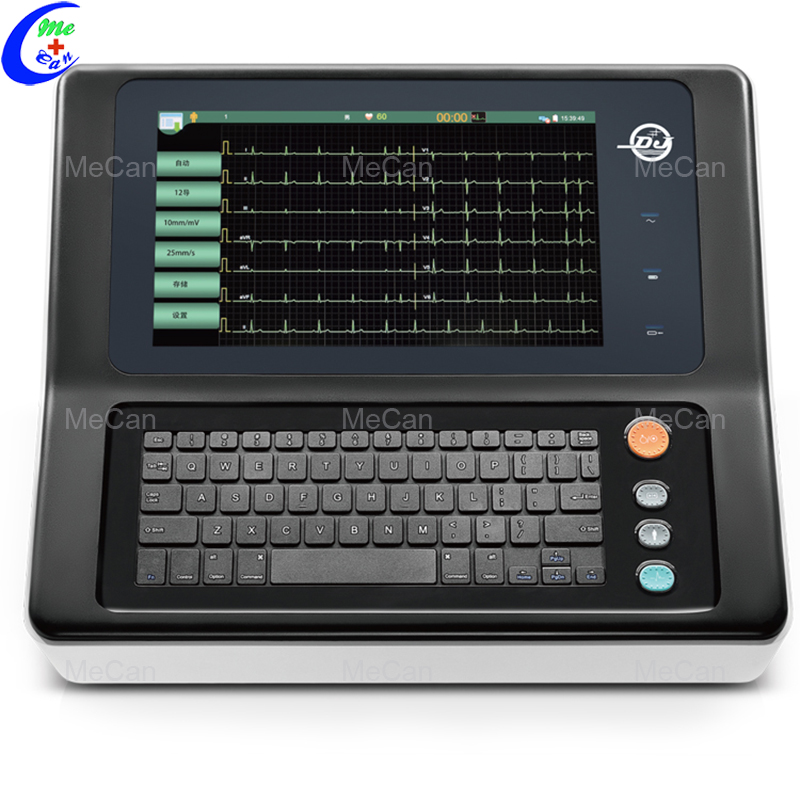

18 channel digital emergency equipment ECG ECG machine 2


 18 channel digital first-aid devices ekg /ecg/electrocardiograph machine
Leads9/12/15/18leads simultaneous acquisition
Sampling Rate  16000Hz/channel/secong
A/D Resolution 24bits
HR Range 30~300bpm
Time constant≥ 3.2s
Polarizing Voltage ±600mV
Input impedance>50MΩ
Frequency Response0.01~300Hz
Noise leve≤12.5µVp-p
DFT Filter0.01/0.05/0.32/0.67Hz
EMG Filter /Low Pass25/35/45/75/100/150/270/300Hz
Pacemaker Detection Amplitude:±750uV ~±700mv,Width 50 us ~2.0 ms Sampling Frequency :16000Hz
LCD Display10.1inch TFT color LCD (1024*600) with toch screen)
Power Supply AC input with external power adaptor of 100~240V,50/60Hz                                              rechargeable Lithium battery (4400mAH) supporting 400 exams.
Recording Speed  5/6.25, 10/12.5/25/50mm/s
Recording Paper Z-fold 210×295mm×100sheets Roller type 210mm×20/30mm
