12 Channel ECG Machine with 7 Inch LCD Screen

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCS-ECG10

    12 Channel ECG Machine with 7 Inch LCD Screen

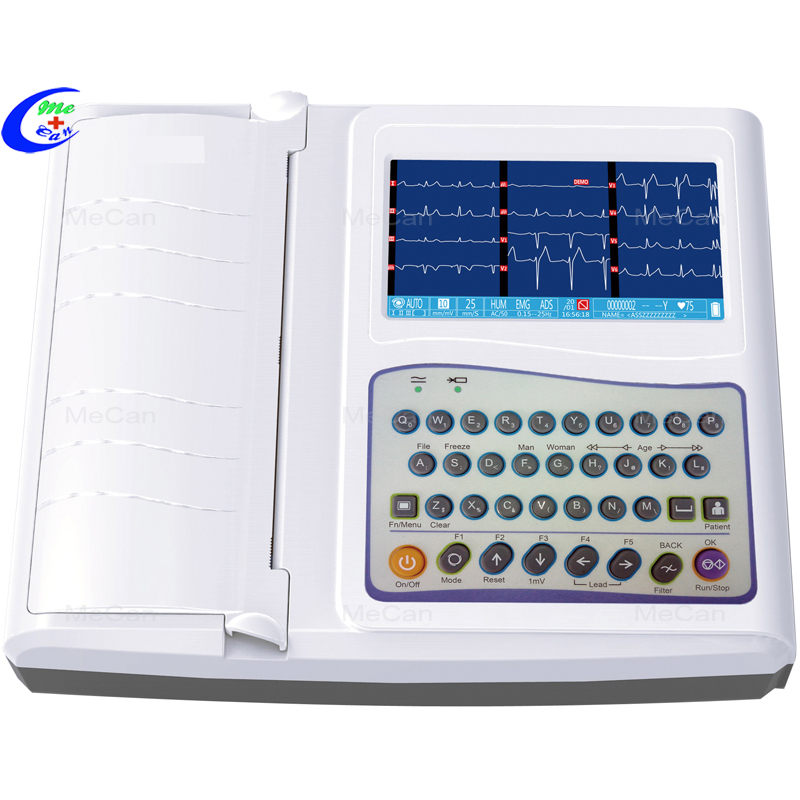

    12 Channel ECG Machine with 7 Inch LCD Screen 4

    Features
    1.Portable delicate design, big color LCD to display and soft alphanumeric keyboard operation
    2.Accurate pulse pace identification and excellent auto-interpretation function
    3.High accuracy digital filter, auto baseline adjustment
    4.12 leads synchronously acquisition and displa; Recording mode : 3ch+++, 6ch, 6ch+, 12ch
    5.Working modes: Manual / Auto / Analysis / Storage
    6.800×480 graphic 7 inch color LCD to display detailed ECG information
    7.250 patient cases save and replay (SD card storage is optional)
    8.Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
    9.215mm*20m roll or 210*140mm folder, high resolution thermal paper
    10.Rs232 and USB interface ( USB disk storage,laser printer printing , PC ECG software are optional )
    11.Language : English, Chinese, French, Italian, Spanish, Russian
    12.300mm*230mm*75mm, 2.8kgs
    Technical Specification
    Lead Standard: 12 leads
    Time constant: ≥3.2s
    Lead acquisition: 12bit/1000Hz (synchronously 12 leads)
    Frequency response: 0.05~160Hz(-3db)
    Work mode: Man / Auto/Analysis/Storage
    Noise level: <15μVp-p
    Filter
    AC Filter: 50Hz / 60Hz
    EMG Filter: 25Hz / 45Hz
    Anti-Drift Filter: 0.15Hz (Adaptive)
    Inter-channel Interference: ≤0.5mm
    CMMR: ≥120dB (with AC FILTER)
    Sensitivity 2.5,5,10,20, 40, Auto  (mm/mV)
    Input circuit
    Floating; Protection circuit against
    Defibrillator effect
    Recording mode
    3ch+++, 6ch, 6ch+,12ch
    Default Man. Mode is  3ch+++  format
    Default Auto. Mode is  12ch format
    Input Impedance: ≥50MΩ
    Paper speed: 6.25、12.5、25、50mm/s(±3%)
    Input circuit current: ≤0.05μA
    Paper:  215mm *20m Roll or 210*140mm folder paper
    Patient current leakage: <10μA
    Communication: RS232/ USB port  ( optional)
    Calibrating voltage: 1mV±2%

    Power Supply
    AC 110-230V(±10%),50/60Hz(±1Hz),60VA
    DC Built-in rechargeable battery,14.4V(4400mAh)
    Voltage tolerance: ≥±500mV
    Dimension/Weight: 347mm×293mm×83mm/4.8Kg

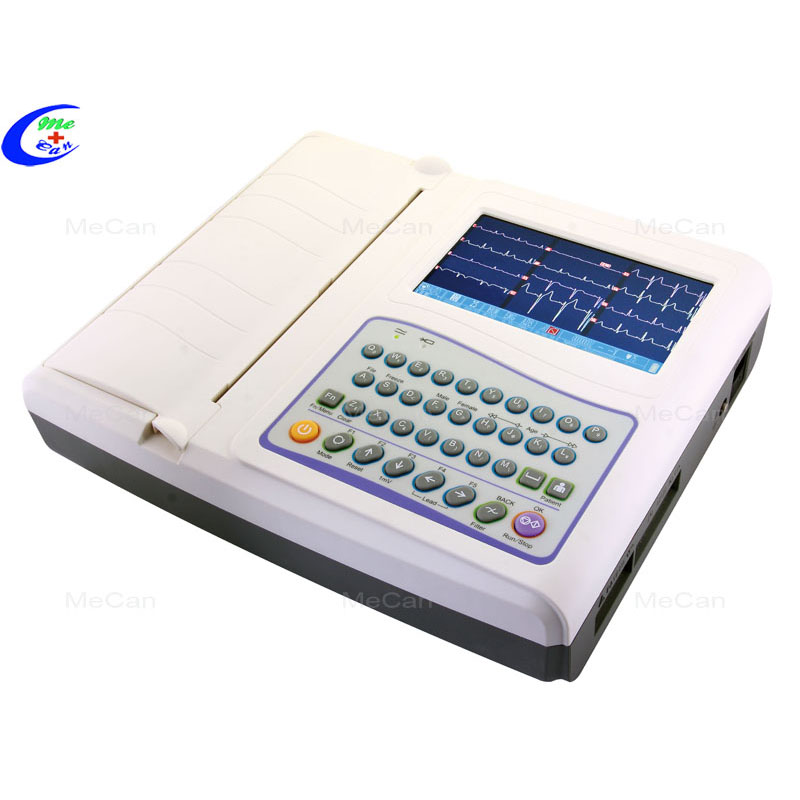

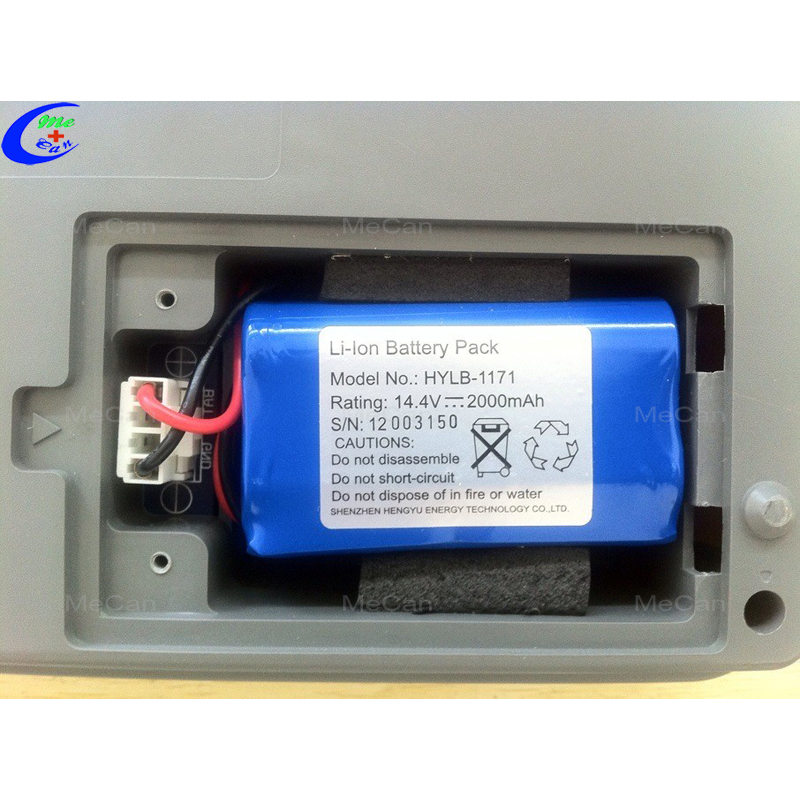

    Snap1  snap2

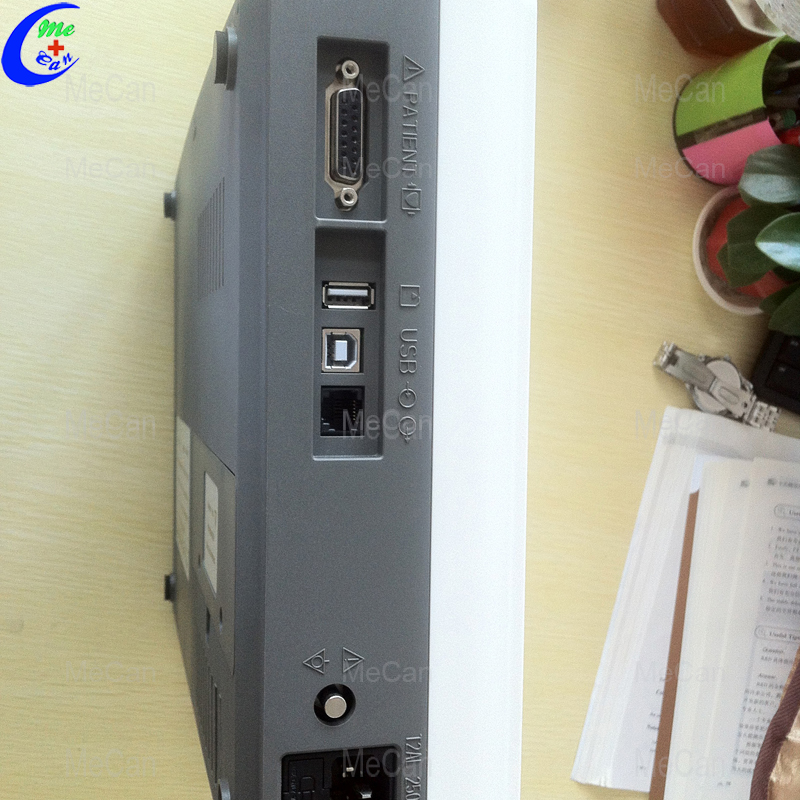

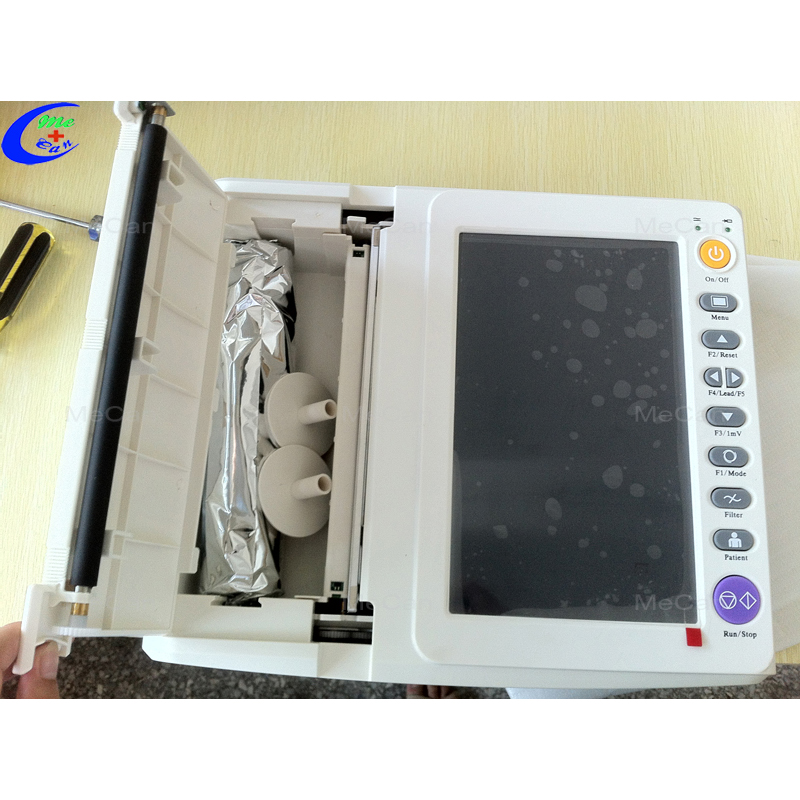

    snap3  snap4

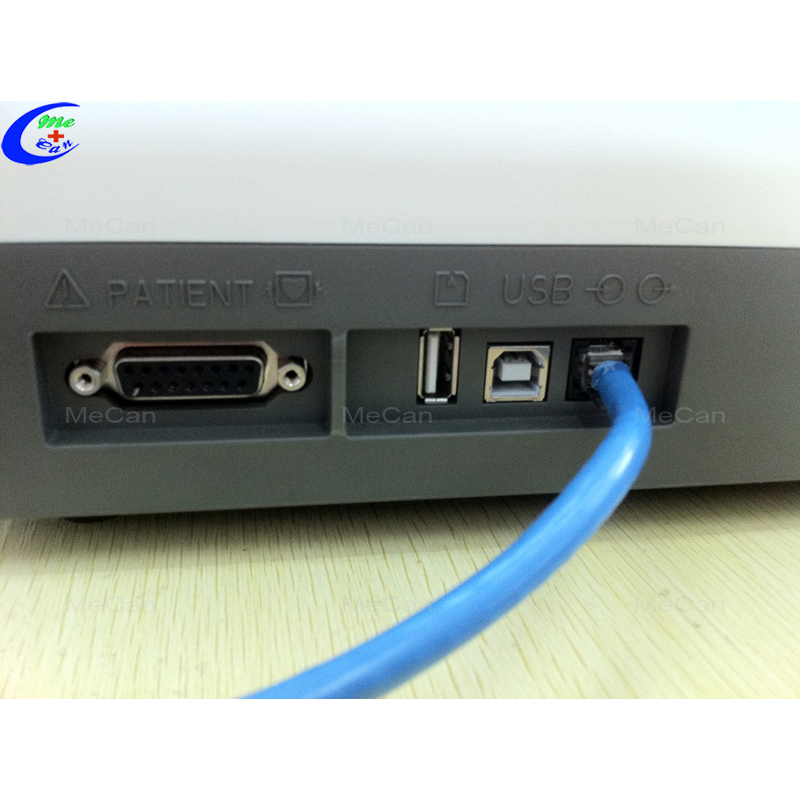

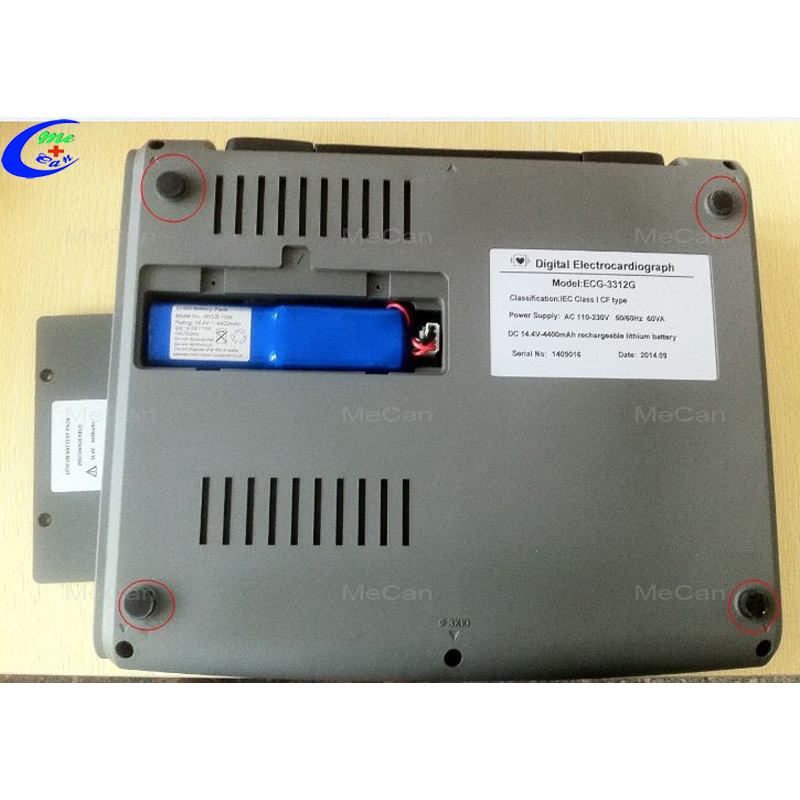

    snap5  snap6
