Mobile Surgery Operating LED Shadowless Light

Operation lamp is mainly composed of a base, column, arm, bracket, zonal frame, lamp, lighting systems, el ectrical control systems.

Payment:
T/T
Lead time:
7
MOQ:
1
Description:
Surgery Light
Model:
MCS-L001

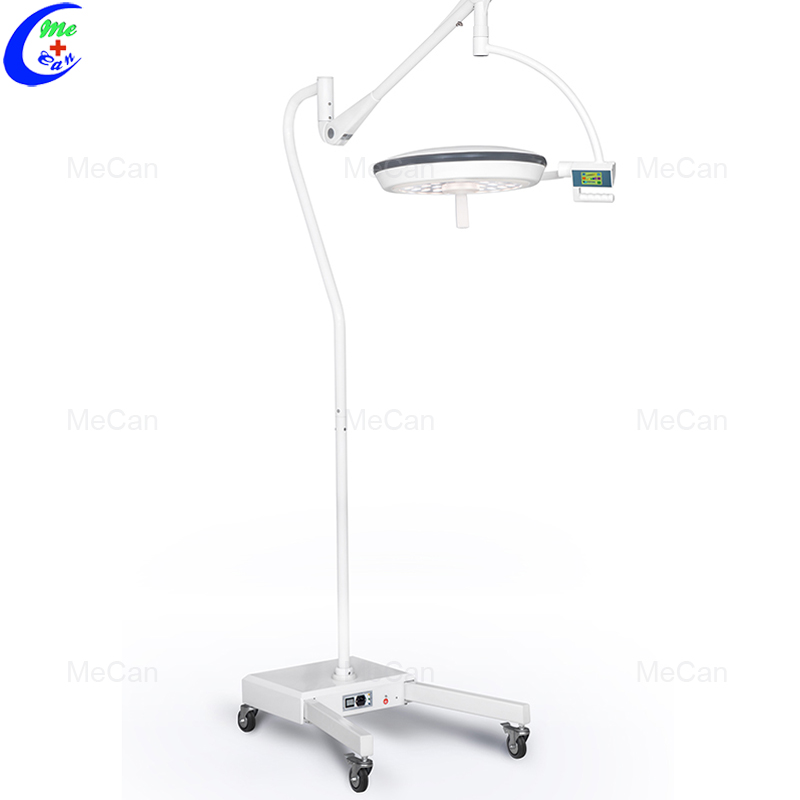

Mobile Surgery Operating LED Shadowless Light

Moedel: MCS-L001

Mobile Surgery Operating  LED Shadowless Light 7

Feature

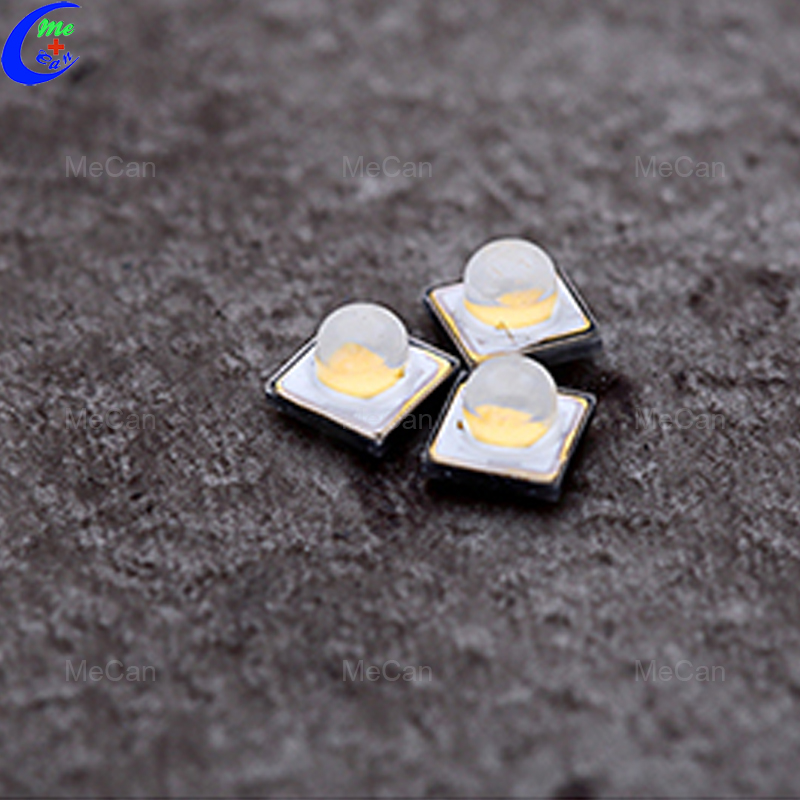

 continuous illumination: the lamp head by 48,  88 HighBrightness LED lamp bead, 5, 6 series into a group, known ashigh-brightness light-emitting diodes,

with 8 parallel group~16 group formed, PLZMD-01-88 LED lamp bead. Each group independent of each other, if there are 1 or 2 groups damaged,fails, the

 rest of the group can continue on.

• Lighting (also known as the light engine module), theaverage service life of 30,000 hours.

• Streamlined shape, with low air damping coefficient, can be used for the clean operating Department required.

• Heat sink design is reasonable, the LED light emitting diode service life, increased use of equipment.

• Sterilizable handle to ensure operating control of the lamp in the surgery in a sterile State.

• Electrical systems for combination products independentlyand in line with the Fail-save; single fault does not affect the other lamp lamp electrical work.

• Configuration and light balance arm suspension system, sixuniversal joint linkage, mobile light, positioning andstability. 360 ° Omni-directional design,

the operation inany height and angle.

• Lamp with built-in emergency power supply, you can automatically charge, mains power, emergency power supply automatically jump to a working state.

Emergency power supply charge indicator light, the light turned green, said it is charging, after sufficient power, led is off.


Conditions of use
Normal working conditions
1. Temperature:10℃~30℃;
2. Relative humidity:≤70%;
3. Atmospheric pressure range:860hPa~1060hPa;
4. This equipment can not be worked in flammable and explosive gas environment.
5. The type of device security: I type equipment;
6. Working system: continuous operation;
7. Liquid injection protection level: IPXO.

Specification
Input Power 120VA
Main fuse F3AL 250V
Power supply voltage AC 220V±10%
Voltage DC24V(+5%~-10%)
Power supply frequency 50Hz
Content Single Lamp
Spot diameter (D10) 120mm≤d10≤250mm
Center illuminance 40klx≤Ec≤160klx
Spot diameter (D50) ≥d10/2
Type Surgery Operating Light

More Detail
Mobile Surgery Operating  LED Shadowless Light 8
Mobile Surgery Operating  LED Shadowless Light 9
Mobile Surgery Operating  LED Shadowless Light 10
Mobile Surgery Operating  LED Shadowless Light 11
Mobile Surgery Operating  LED Shadowless Light 12
