Medical Handicapped Lightweight Folding Electric Wheelchair

This product is designed for user's simple operation. The reducer with dual back drivers is used to ensure the stability and relability of driving. Advanced controller, easy operation system. Seat design complying with Human Engineering provide user with enough coziness. The whole wheelchair could be folded and the pedals could be dismantled, easy for package, delivery and storage in household.
Payment:
T/T
Lead time:
15
MOQ:
1
Description:
Electric Wheelchair
Model:
MC-500C

Medical Handicapped Lightweight Folding Electric Wheelchair

MC-500C

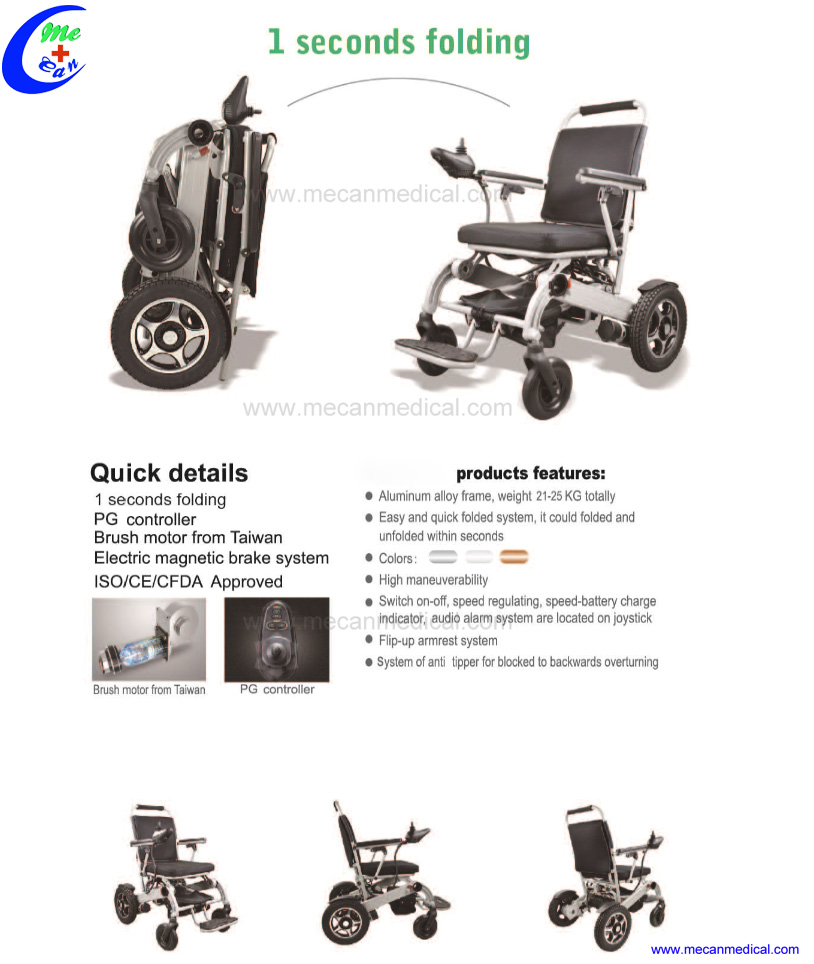

What is the features of our electric wheelchair?
1.One second folding
2.PG VR2 joystick
3.Brush motor from Taiwan

4.Electric magnetic brake system

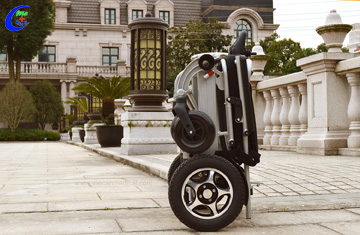

Medical Handicapped Lightweight Folding Electric Wheelchair 7



Medical Handicapped Lightweight Folding Electric Wheelchair 8



What's the specification of our wheelchair?

Overall length 96cm
Overall width 59cm
Overall height 92cm
Folded size (L*W*H) 76*62*40cm
Weight capacity 120kg
Tire type Front 7" PU solid        rear:10" pneumatic
Gradeability  8-15 degree
Max sppeed
9km/hr
Driving range
25km
Joystick/controller type
PG VSI
Motor type 180W *2  Brush motor
Seat depth 45cm
Seat width 45cm
Seat height 53cm
Shock absorption system Front Yes; Back: no
Battery type
Lithium Battery  24V/20AH (30AH is max optional)
Charger
24V/5A
Charging time
6-8 hours
Overall weight
22KG
Weight w/o battery 20KG
Package size by Carton 68*46*87"
More details

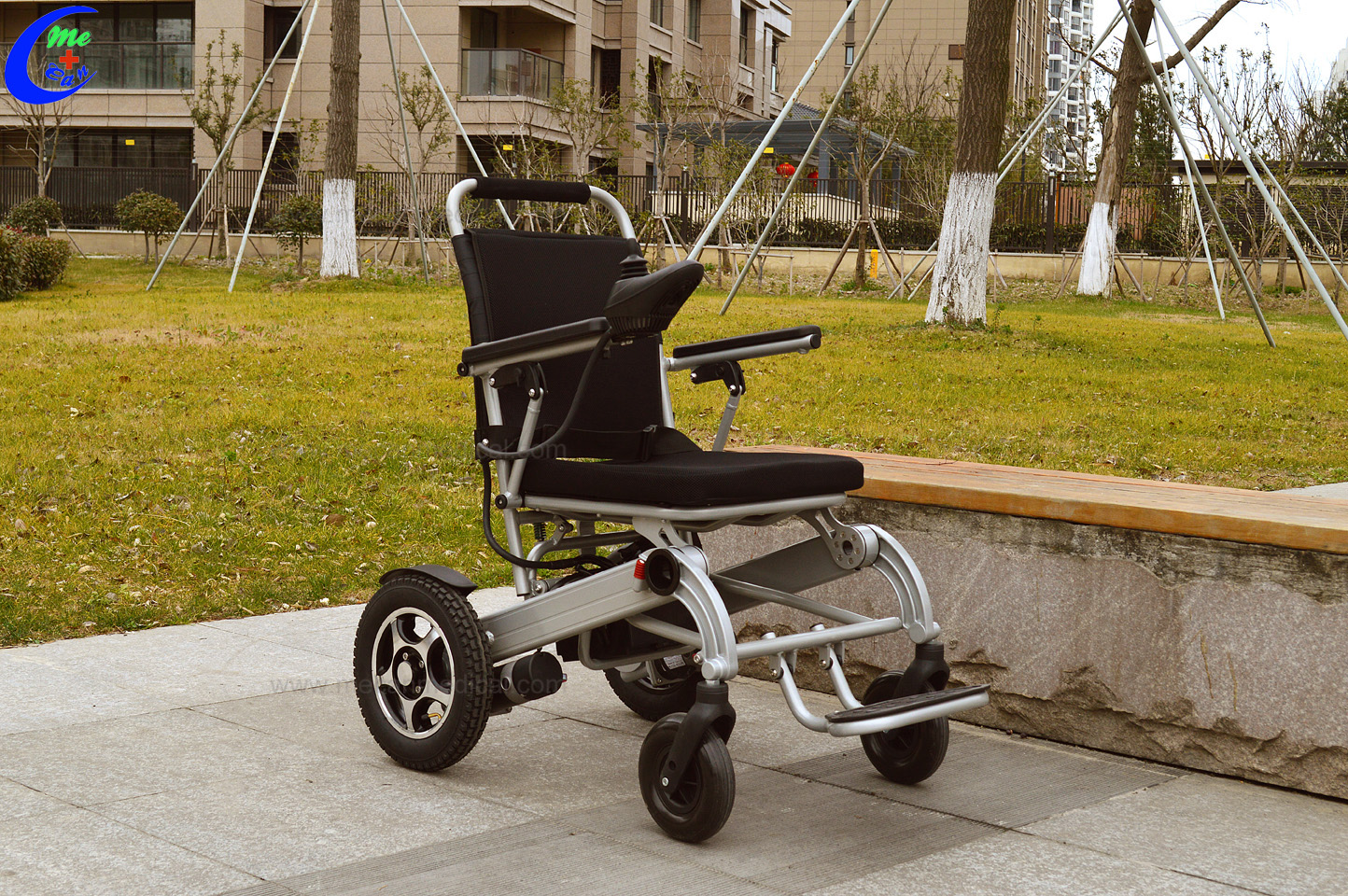

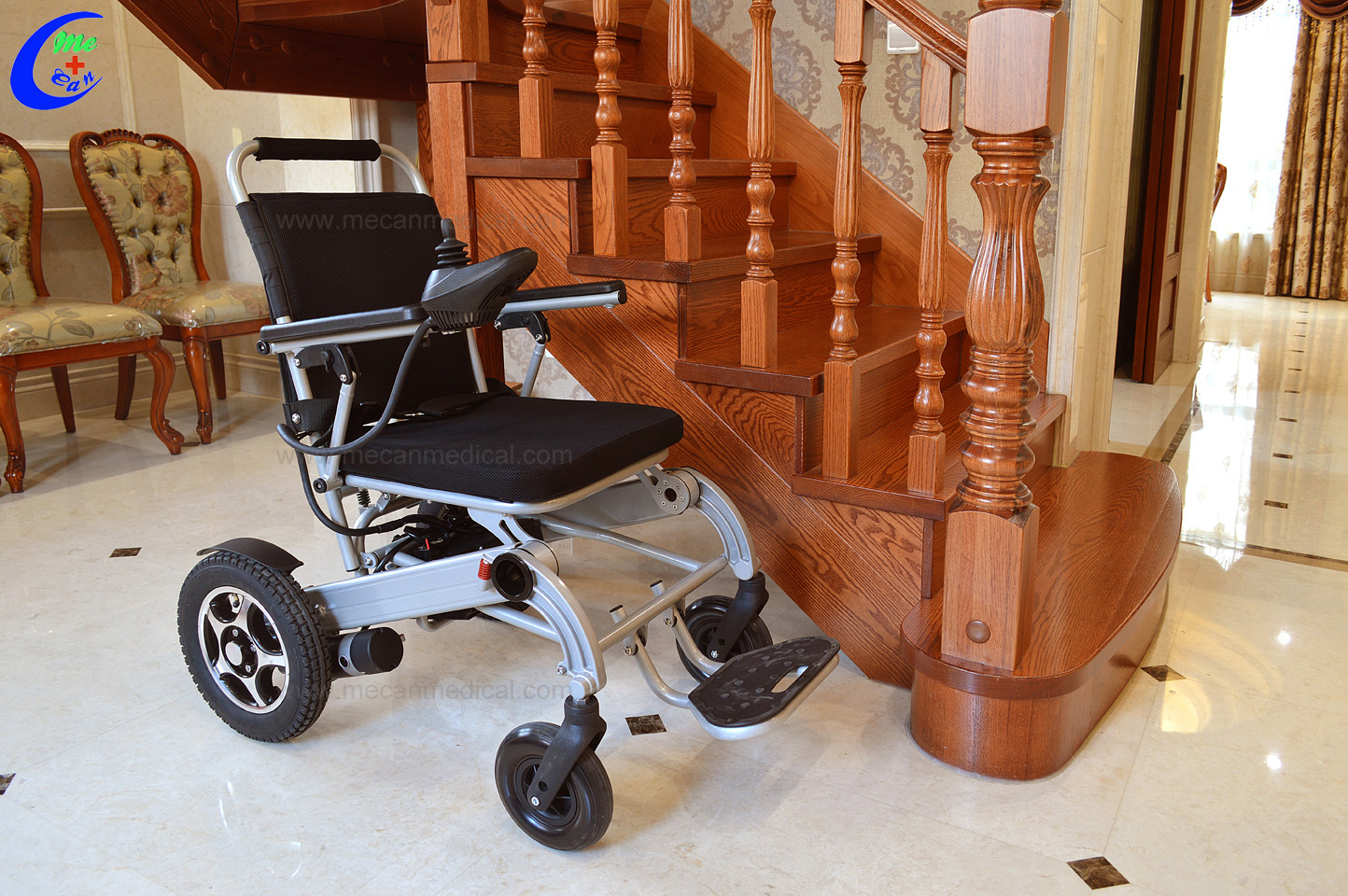

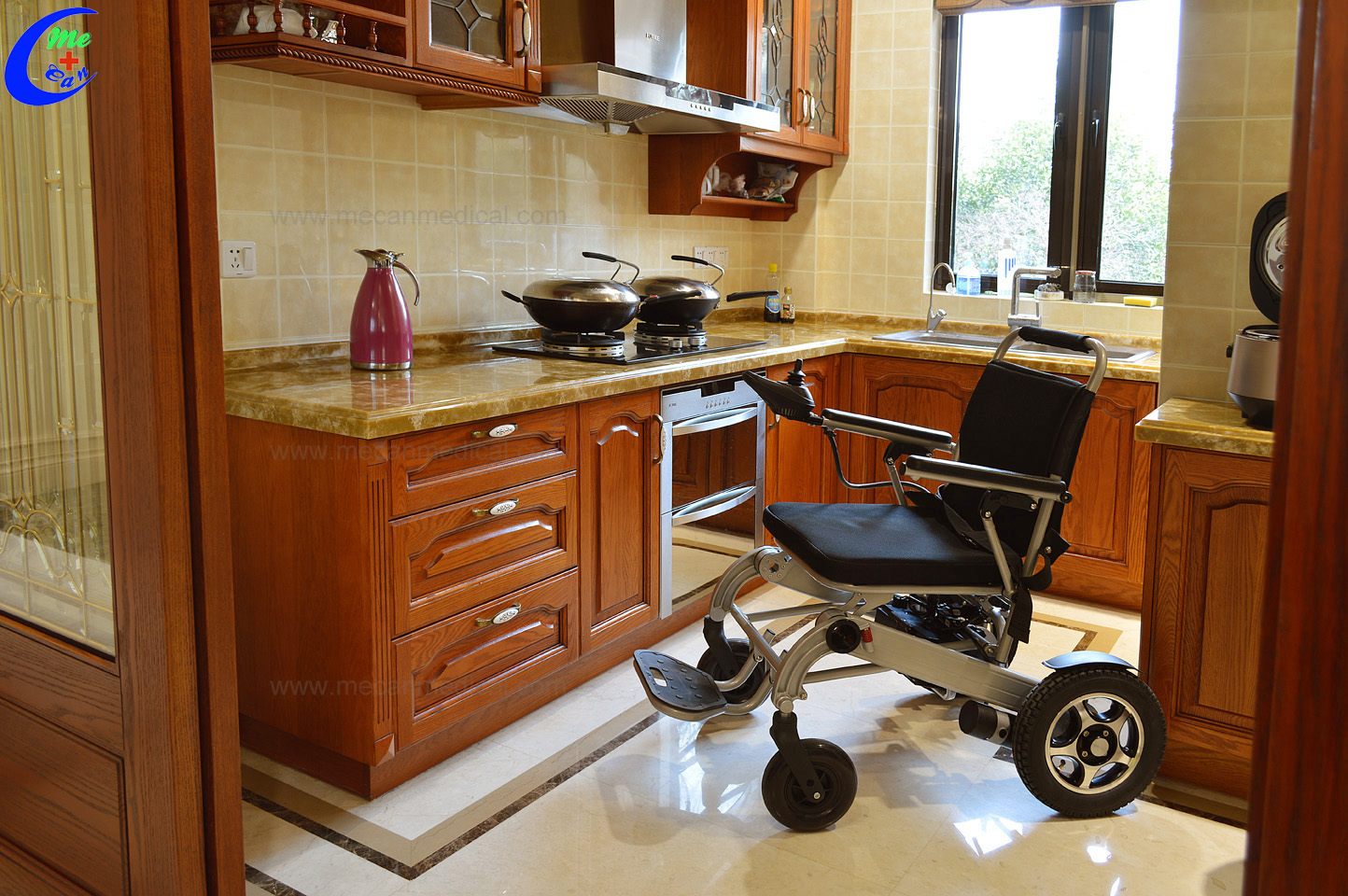

Medical Handicapped Lightweight Folding Electric Wheelchair 9Medical Handicapped Lightweight Folding Electric Wheelchair 10Medical Handicapped Lightweight Folding Electric Wheelchair 11
