Hot Sale China Medical Doppler Ultrasound Machine
Hot Sale China Medical Doppler Ultrasound Machine
Model: MCU-V007
What is the feature of the ultrasound machine
1.Main unit size: 212mm*154mm*58mm(length x width x height)
2.Language: Chinese/English switchable.
3.Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
4.Display mode:B,2B,4B ,B/M,M, total 5 kinds.
5.Gain range:0~127dB
6.Intelligent TGC control. Near-field:0~-31dB;Far-field:0~31dB
7.Dynamic range: 27~90dB
8.Gray : 256
9.Magnification:0.8,1.0,1.2,1.6,2.0, total five kinds;
10.Frequency conversion:2 kinds
11.Frame correlation:0,1,2,3 total 4 kinds.
12.Image post-process adjustment:0,1,2,3,total 4 kinds.
13.Local zoom.
14.4 grades depth adjustment, maximum display depth is 200mm.
15.Image horizontal/ vertical reverse, left/right reverse.
16.Pseudo-color: 8 kinds (incl. B/W).
17.Permanent image storage: 100 frames.
18.USB disk storage function
19.Puncture guiding function,( 2 guiding lines, angel and position adjustable)
20.Equipped with lithotripsy software, realize real-time positioning measurement.
21.Energy saving function.
22.Character brightness: choose from 160,192,224,255 for brightness.
23.Keyboard tone:2 kinds(open,close);
24.Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
25.Net weight: 1.1KG
What is the specification of the ultrasound machine
| Item | Value |
| Model | MCU-V007 |

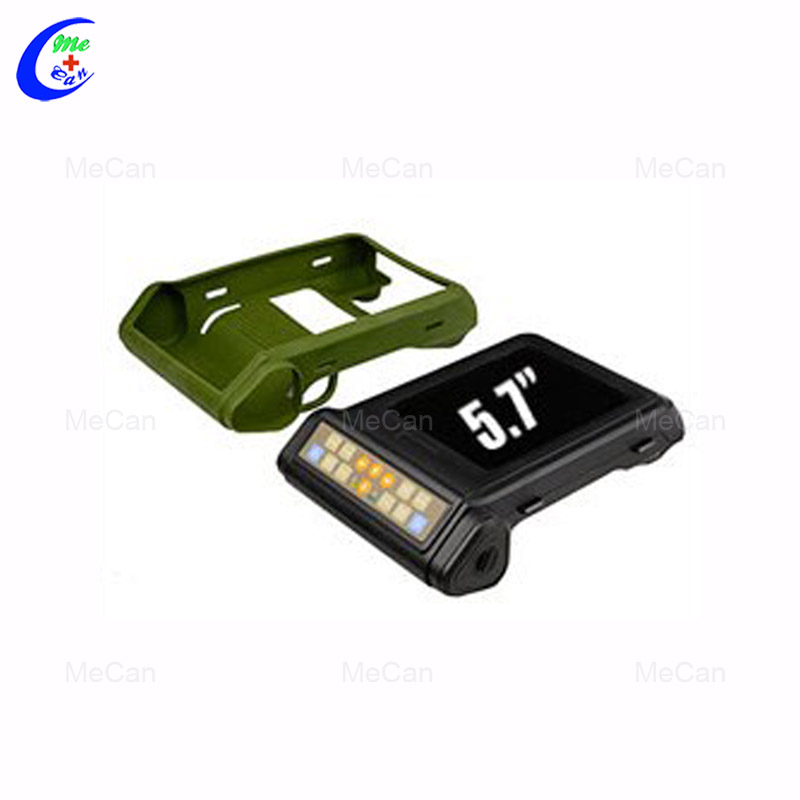

| Display | 5.7"high resolution color LED |
| Display mode | B,2B,4B ,B/M,M, total 5 kinds |
| Gain range | 0~127dB |
| Dynamic range | 27~90dB |
| Gray | 256 |
| Permanent image storage | 100 frames |
| Keyboard tone | 2 kinds |
| Net weight | 1.1KG |
| Power supply | AC110/230 -15％～＋10％, 60/50Hz±1Hz |
| Dimension(L×W×H) | 212×154×58mm |
More detail of the ultrasound machine
