High Quality Mobile Human Cremation Machine for Body

During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc. As the corpse is placed in the machine, the container burns down.

Payment:
T/T
Lead time:
7
MOQ:
1
Description:
Cremation Furnace
Model:
MC-ND01 / MC-ND02



Mobile Human Cremation Machine Cremation Furnace for Body

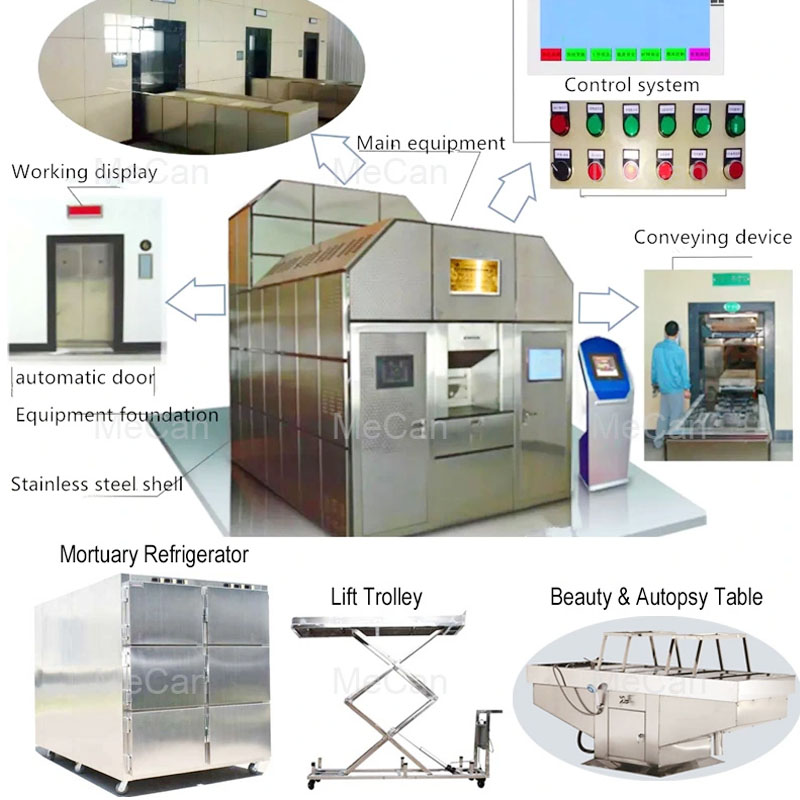

High Quality Mobile Human Cremation Machine for Body 7

Feature:
During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
As the corpse is placed in the machine, the container burns down.
Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
Our crematories machine have fourth afterburner to help burn the body completely.


Our cremators adapt the latest combustion technology, four times burning technology ensure the emissions purified.
First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300ºC), most smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special construction of the secondary burning chamber.
Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if temperature under 700ºC,otherwise above 700ºCthe high temperature gas and smoke burn itself matched with the suitable amount of oxygen.
Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally before injection into the atmosphere.
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time necessary to complete the cremation to less than half an hours.



Mobile Human Cremation Machine for Body

Model: MC-ND01

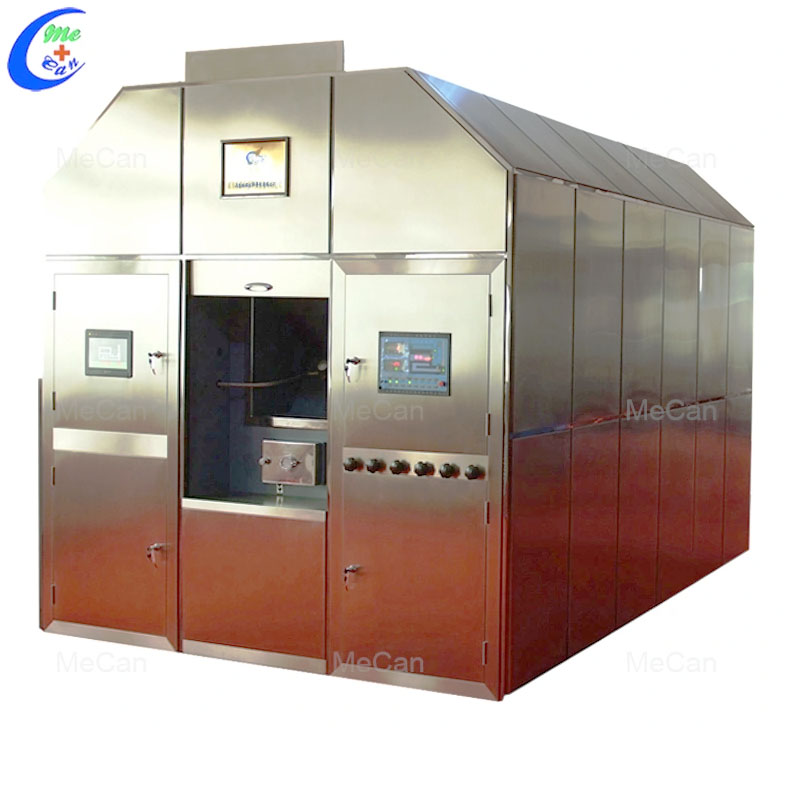

High Quality Mobile Human Cremation Machine for Body 8

Specification

Dimensions(L*W*H)MM Single bed 5300*2400*3200
Furnace size (L*W*H)MM 2200*800*700
Main combustion chamber combustor 400,000 kcal
Secondary combustion chamber combustor 100,000 kcal
Working temperature of main combustion chamber 700-900 degree
Can withstand the highest temperature 1200 degree
Secondary combustion chamber temperature 900-1100 degree
Can withstand the highest temperature 1400 degree
Temperature control method Automatic
Fuel Light diesel
Voltage
220V or 380V(customizable)
Fan power
<4kw
Total installed power
<10kw
Average energy consumption 5-10KG/pcs
Incineration bed control method electric
Ignition method automatic
Continuous cremation time
35-50minutes/set
Average cooling time
15-20minutes/set
Machine noise Less than 65 decibels
Design life 15 years
Material used
Shell: overall high-grade stainless steel, high-alumina refractory bricks are used in the furnace, and ceramic fiber is used in the insulation layer.



Mobile Human Cremation Machine for Body

MC-ND02

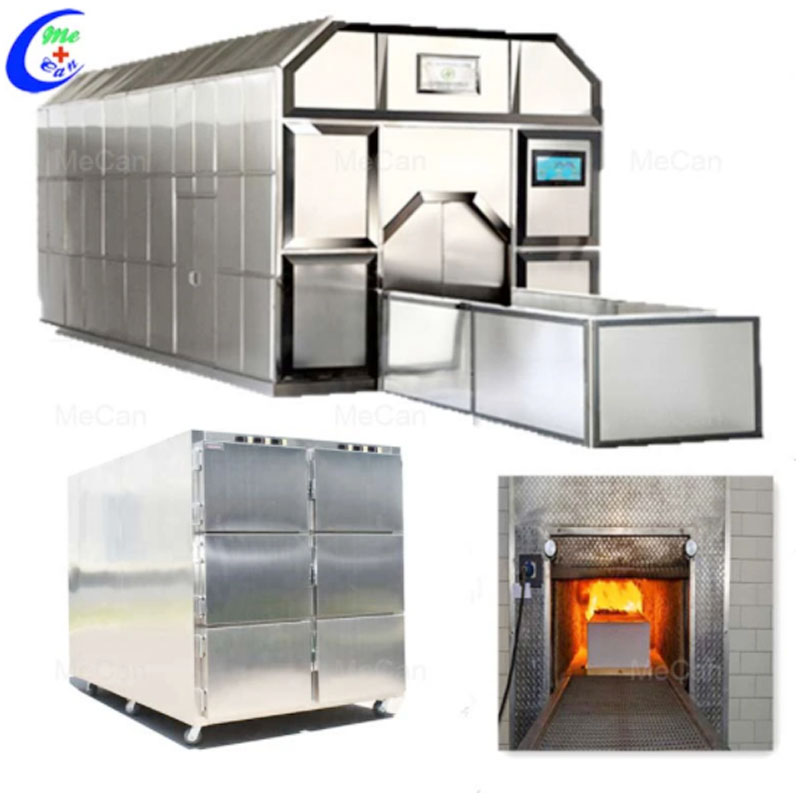

High Quality Mobile Human Cremation Machine for Body 9

Specification

Number Name Double Bed Detail
1 External dimension of furnace body(mm) L*W*H=8400*2350*2500
2 Trolley size(mm) 2100*680*700
3 Furnace size(mm) 2150*700*700
4 Number of bed surface of Trolley(set) 1or 2 (Optional)
5 Use fuel 0 ~ - 10 * light diesel, city gas, natural gas, liquefied gas
6 Fuel consumption(per) 6~10 kg
7 Average cooling time (min/per) 4-15
8 Operating temperature of main combustion chamber 700~900ºC
9 Working pressure of main furnace(Pa) -2Pa~-50Pa
10 Total weight of furnace body 25 t
11 Ejector fan(kw) 7.5
12 Blower(kw) 7.5
13 Harmful gas emission
Comply with relevant national environmental protection regulations
14 Floor area of equipment (m2)
14.16
15 Quality of ashes
Full burning of ashes, pure white without sundries
16 Odor determination
There is no peculiar smell or smoke in the cremation room
17 Equipment performance
Environmental protection and energy saving, low noise and small vibration



MC-ND02 Furnace material of high grade ash picker

Number Name Detail
1 Refractory material The refractory material of the furnace is MeCan brand, which is famous in China. The top cover of the furnace is made of prefabricated high aluminum refractory bricks. The furnace is made of new high-strength erosion resistant aluminum carbonized silicon composite material, which can ensure the fast temperature rise in the furnace, the short time of the cremation remains and the small oil consumption. All refractory bricks and cement used for the furnace body are of high quality, cold and hot resistance, high compressive strength, fast heat absorption, good heat preservation, corrosion resistance, high stability, wear resistance, long service life, and will not automatically loosen and fall off after a long period of high temperature, with a temperature resistance of 1400 degrees.
2 Thermal insulation material It adopts high-quality aluminum silicate fiber felt board, calcium silicate board and diatomite insulation brick, with high-quality heat conduction, making the surface temperature of furnace body about 20 ºC , good insulation performance, long service life, furnace temperature drop of about 40 ºC in 24 hours after shutdown.
3 Decorative materials It adopts 0.8-1.0mm high-quality stainless steel plate, beautiful and generous, strong three-dimensional sense, corrosion resistance, convenient disassembly, maintenance and never deformation
4 Bone scaffold High quality profiles and plates are adopted, which are durable and never deformed
5 Main combustion chamber After the body enters the main combustion chamber, it is ignited by the burner and  incinerated here
6 Flue gas combustion chamber Burning the flue gas, making the flue gas stay longer in the furnace, making the toxic and harmful substances burn more fully, so as to achieve the effect of environmental protection
7 Main furnace masonry During masonry, the mortar is full of the joint surface between the brick and the brick, and the mortar joint is less than 3mm



MC-ND02 System parameters of high grade ash sorting and cremation machine

Number Name Detail Remark
1 Preliminary door system The control system of the reserve door adopts the computer automatic control with LED display to ensure the operation of the two sets of operating systems of the front hall and the rear hall. Equipped with high-grade color LCD touch screen for easy operation, using micro motor to drive the reducer hydraulic control to open and close the preparatory door automatically, using high-quality super grade stainless steel plate for external decoration, beautiful and generous, sound insulation and noise reduction
2 Cooling chamber After the incineration of the remains is completed, the ashes are cooled in the cooling room, which is composed of the outer framework and the decorative plate, and is cooled by the frequency conversion fan. When the temperature is lower than the ash picking temperature, the automatic alarm will be given to remind and the waiting time for bereavement will be shortened. Cooling system
3 Collector The hot air heat exchange device made of the new high-strength, corrosion-resistant, high-temperature and high manganese 310S stainless steel material is placed in the furnace body to provide oxygen temperature. It has the advantages of high heat transfer efficiency, good heat absorption, fast temperature rise, and can quickly raise the air temperature to more than 400 ºC, so as to achieve combustion support, strengthen combustion, save energy and reduce consumption, accelerate incineration speed and shorten incineration time.
4 Combustion system The hot air heat exchange device made of the new high-strength, corrosion-resistant, high-temperature and high manganese 310S stainless steel material is placed in the furnace body to provide oxygen temperature. It has the advantages of high heat transfer efficiency, good heat absorption, fast temperature rise, and can quickly raise the air temperature to more than 400 ºC, so as to achieve combustion support, strengthen combustion, save energy and reduce consumption, accelerate incineration speed and shorten incineration time.
5 Combustion system High quality energy-saving burner of huierfeng brand is adopted, which can automatically ignite, control furnace temperature and pressure, control oil consumption, automatically adjust electric damper, combustion angle and smoke gate Control system
6 Computer control system It adopts TFT color LCD touch screen and special computer control (PLC) for cremation machine, which can achieve synchronous dynamic display of color and video animation and has fault diagnosis display and perfect protection function. It is equipped with three operation systems without interference switching: manual, semi-automatic and computer full-automatic. The system is safe, stable, reliable, convenient for maintenance, and equipped with automatic explosion-proof function.
7 Electrical components Using high quality low-voltage electrical components, using pressure module and temperature module to automatically detect furnace pressure and temperature
8 Electrical control cabinet Adopt separate electrical control cabinet, equipped with overload, short circuit and other electrical protection functions and system comprehensive control functions
9 Electrical control working voltage 220VAC,24VDC
10 Wind path It is made of new high temperature and high manganese stainless steel with high corrosion resistance, stability and compressive strength. Air supply system
11 Blower Pulse blast system is adopted, 7.5kW high-pressure fan is used for blower, with air volume of 1050 ~ 1200m3 / h and air pressure of 10000 ~ 12500pa. Air supply system
12 Combustion supporting air duct The end small air duct contacting high temperature is made of high temperature resistant material φ 20 * 2.5 seamless pipe. Others are made of φ 159 steel pipes, which are resistant to high temperature and corrosion. Air supply system
13 Ejector fan Venturi injection system is adopted, with 7.5kW high pressure and high air volume fan, air volume of 3650 ~ 4200m3 / h, air pressure of 4000 ~ 6000pa Smoke exhaust system
14 Ejector bladder It is made of 3mm high quality stainless steel plate  with long high temperature resistance and long service life. Smoke exhaust system
15 Ejection chimney 3 mm thick stainless steel plate rolling is adopted, and the first section buried underground is made of 3 mm thick stainless steel plate rolling. The structure is spray type, high temperature and corrosion resistant, and the chimney height is 8-12m. Smoke exhaust system
16 Flue structure system The flue adopts refractory brick, heat preservation brick, aluminum Silicate fiber felt board, waterproof reinforced concrete protective layer and waterproof performance to ensure long-term non leakage. Smoke exhaust system
17 Pressure control system
Use the controller to control the ram lifting, automatically adjust the furnace pressure and control it within the range of - 2 ~ - 50pA
Smoke exhaust system
18 High definition camera High definition camera is used to capture the flue gas emission for easy operation Smoke exhaust system
19 Color display In order to ensure that the combustion emission reaches the best state and is easy to adjust and operate, the equipment adopts the color display to dynamically display the outdoor flue gas emission. TV monitoring system
20 Fuel tank
Angang Steel profiles and plates are used, and the capacity meets the fire protection requirements
Oil supply system
21 Tubing
The pipeline from the oil tank to the furnace shall be wrapped with sealing tape, without oil leakage and with good sealing effect
Oil supply system
22 National standard Micro flowmeter
Metering oil consumption and oil pipeline control oil distribution
Oil supply system
23 Control valve
Protection oil circuit control system
Oil supply system



More Detail

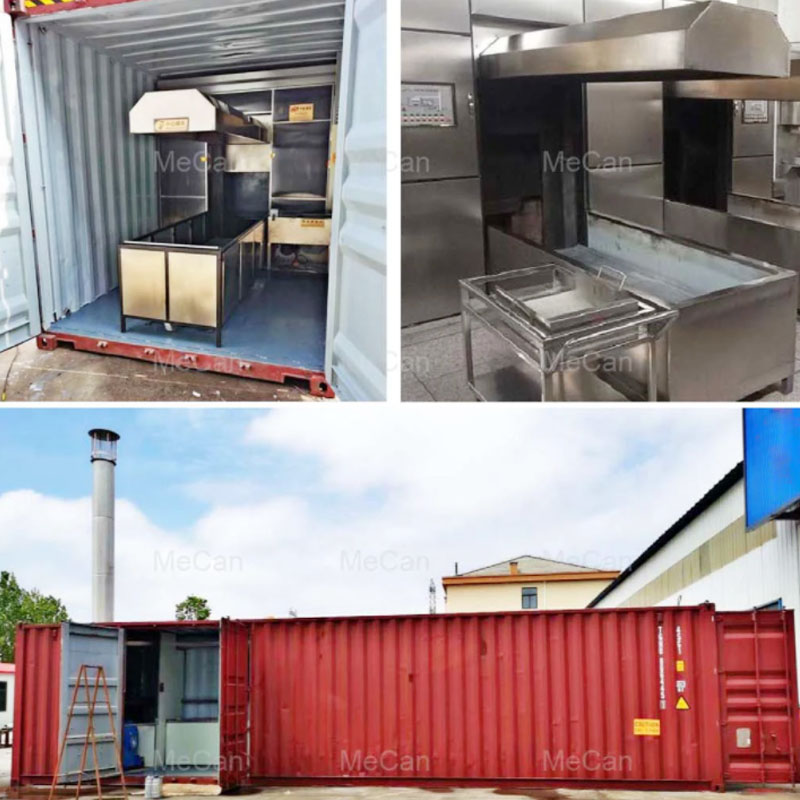

High Quality Mobile Human Cremation Machine for Body 10

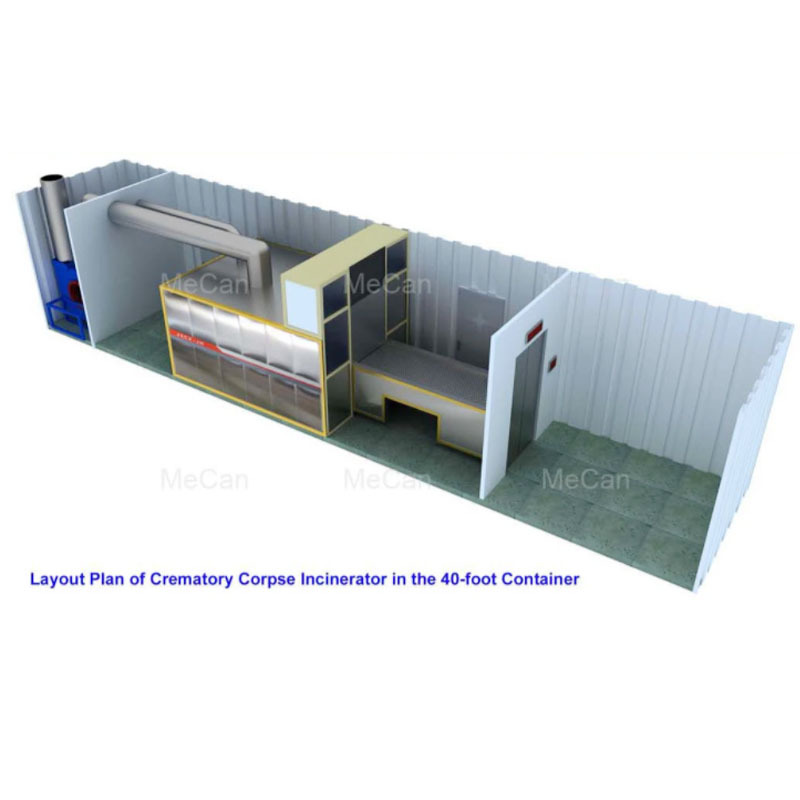

High Quality Mobile Human Cremation Machine for Body 11

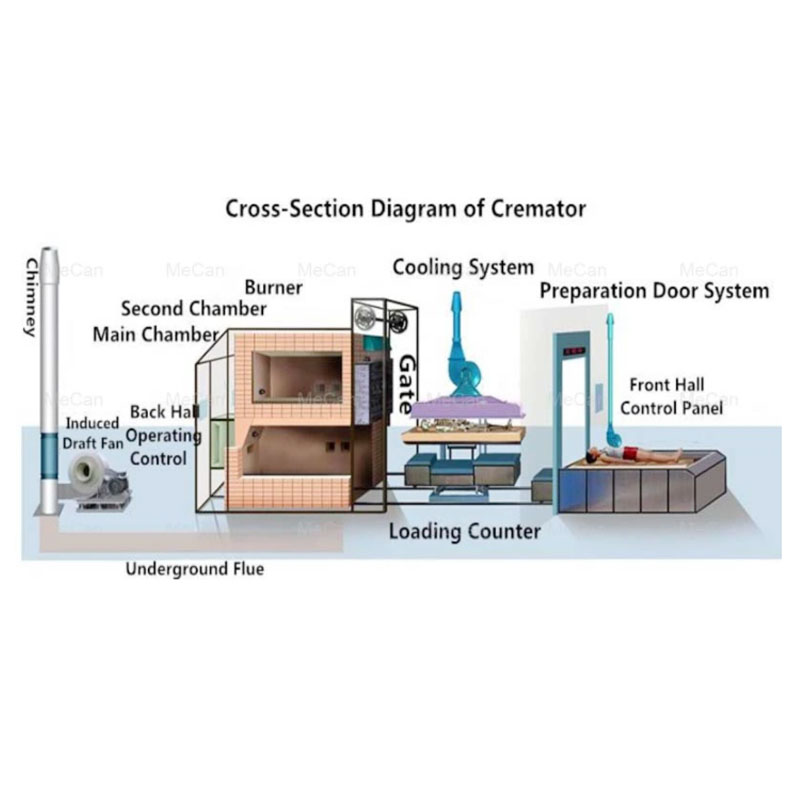

Cross-Section Diagram of Cremation Machine

High Quality Mobile Human Cremation Machine for Body 12

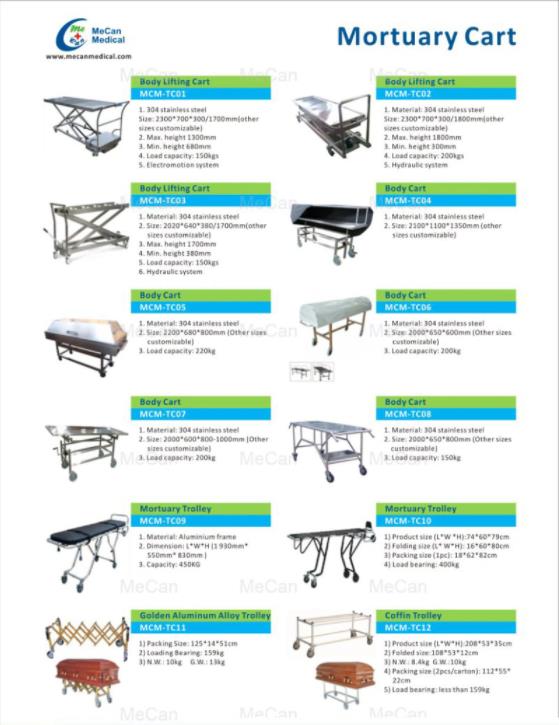

Other Product

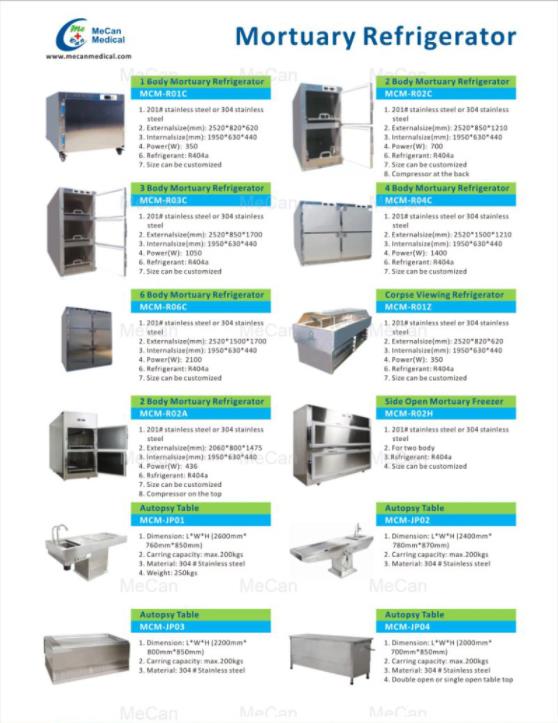

High Quality Mobile Human Cremation Machine for Body 13

High Quality Mobile Human Cremation Machine for Body 14

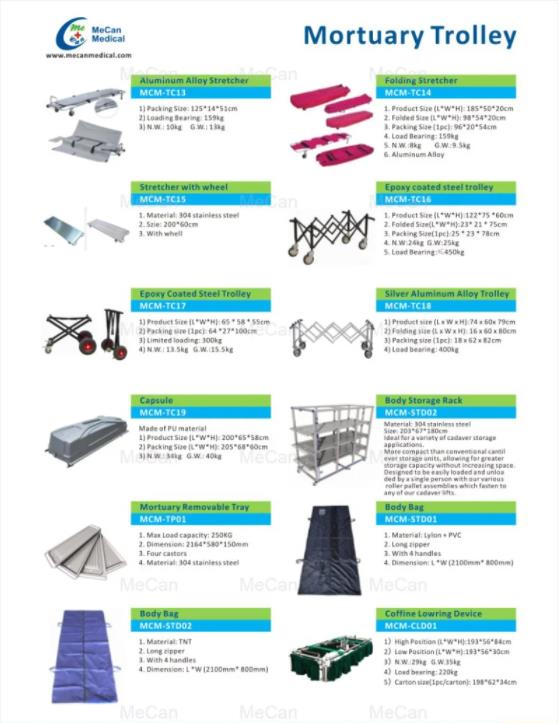

High Quality Mobile Human Cremation Machine for Body 15
