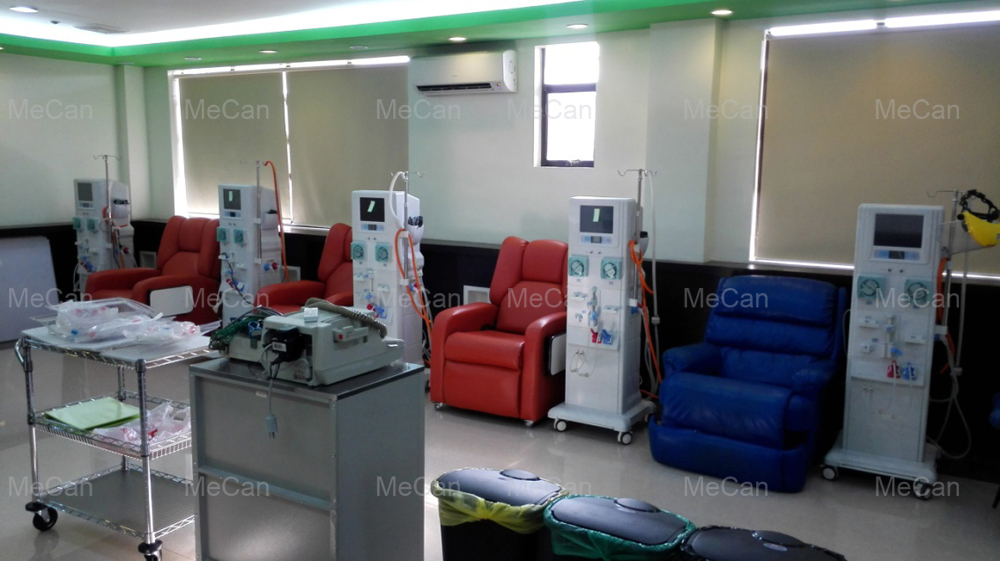

Double Pump Hemodialyse Machine Hemodialysis Machine

Double Pump Hemodialyse Machine Blood Kidney Dialysis Machine

Main performance of this device:

1. Self-checking function;

2. Carbonate dialysis;

3. Double needle dialysis;

4. Liquid level detector;

5. Bubble detector;

6. Blood leakage detector;

7. Temperature and electric conductivity monitoring;

8. Arterial pressure, venous pressure and transmembrane pressure monitoring;

9. Rolling blood pump;

10. Heparin pump;

11. Dehydration amount controlled by capacity;

12. Automatic disinfection cleaning program;

13. Stand-by power of blood pump in case of power failure;

14. Information display function of display screen.

Technical Data

General data:

Dimensions                 1380 x 380 x 400 mm (H x W x D);

Weight approx.              88 KG;

Water supply:

Water inlet pressure           1.5-6.0 bar

Water inlet temperature        5℃~32℃

Max. drain height             1m

Concentrate supply

Supply pressure              0 to 2 m suction height

Electrical data

Power supply                AC220V±10%, 47-63HZ

Current consumption max.  max. 10 A

Extracorporeal circuit

Arterial pressure monitoring

Display range               -380 mmHg to +400 mmHg

Accuracy                   ±10 mmHg

Resolution                  1 mmHg

Venous pressure monitoring

Display range               -180 mmHg to +600 mmHg

Accuracy                   ±10 mmHg

Resolution                  1 mmHg

Transmembrane pressure monitoring

Display range               -180 mmHg to +600 mmHg

Accuracy                   ±20 mmHg

Resolution                  1 mmHg

Arterial blood pump

Blood flow range            30 to 600ml/min in 8 mm bloodline systems

Accuracy                   ±10%

Air bubble pump

By ultrasound transmission, additional optical monitoring in venous clamp.

Heparin pump:

Delivery range            0ml/h to 10ml/h

Bolus function max.        20 mL per bolus

Syringe size              10, 20, 30, 50ml

Dialysis fluid circuit

Dialysis fluid flow range

Selectable                100-800 mL/min

Dialysis fluid temperature

Selectable                34.0℃ to 40.0℃

Dialysis fluid conductivity

Range                   12 to 16 mS/cm (25℃)

Accuracy                 ±0.1 mS/cm

Acid concentration dialysis fluid

Default mixing ratio       1+34 (others possible)

Range                  125 to 150 mmol/L

Bicarbonate concentration dialysis fluid

Default mixing ratio       1+27.6 (others possible)

Range                  -8 to +8 mmol/L bicarbonate

Ultrafiltration

UF rate                    0ml/h~4000ml/h

Accuracy                  ±1%

Allowed dialyzer UF factor    unlimited

Parameter displayed          UF goal, UF time, UF rate, UF volume

Blood leak detector

Sensitivity                 ≤0.35 mL blood/min (HCT=32)

KT/V

Calculation

Disinfection and cleaning programs

Rinse Temperature/flow       30 to 60℃ / 300 to 800ml/min

Hot Rinse (recirculation)

Temperature/flow   30 to 85℃ / 300 to 800ml/min

Hot disinfection with chemical

Temperature/flow   30 to 85℃/ 300 to 800ml/min

Various program combination selectable

Technical Data-Options

Blood pressure Monitor (BPM) (optional function)

Display range Systole: 40-280 mmHg

Diastole: 40-280 mmHg

Accuracy: 1 mmHg

Central Delivery system for acid conc.

Supply pressure 0 to 100 mbar, 1 m suction height with Central delivery system: 0-500 mbar

Endotoxin filter-- Dialysis fluid filter system (optional function)

Balancing accuracy ±0.1% of dialysate flow

Bicarbonate dry

Concentrate Bi-cart (optional function)
