China Medical High Quality PSA Oxygen Generator System

Oxygen generators were specially designed for medical application, oxygen purity is 93 (±3%), output 5 or 10m³/h. Oil free air compressor: Cause oil and water will damage Zeolite molecular sieve, which is the main parts for PSA system. It`s better choose oil-free air compressor that can protect Zeolite molecular sieve and enlarge PSA system service life.PLC: Intelligent control platform, can monitor and control the PSA system oxygen pressure, flow rate, and other parameters on-site as well as from online mobile APP and PC.

Payment:
T/T
Lead time:
7
MOQ:
1
Description:
PSA Oxygen Generator System
Model:
MC-OG003

Medical PSA Oxygen Generator System

Model: MC-OG003

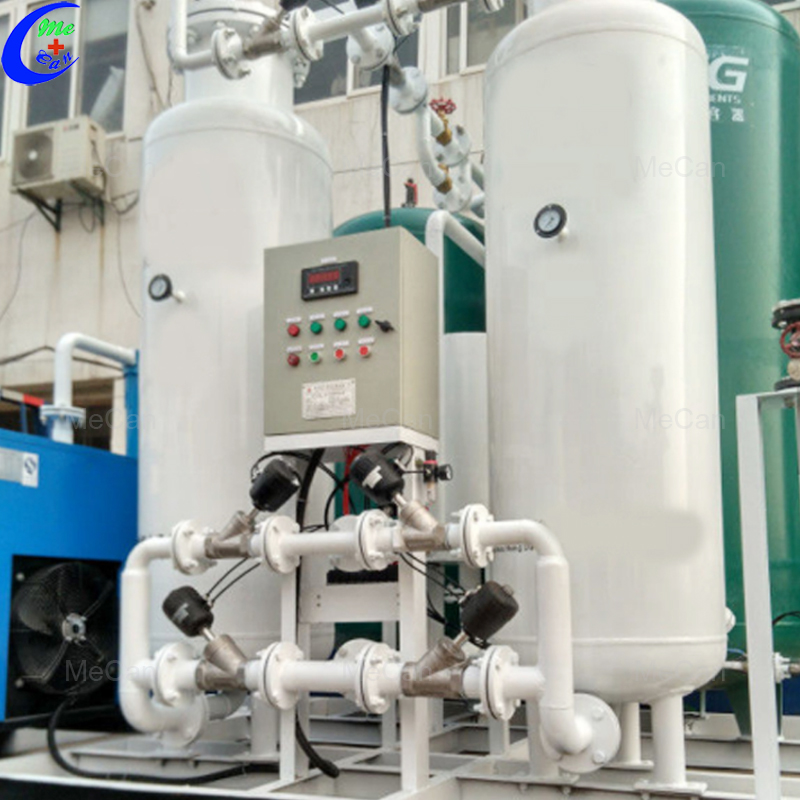

China Medical High Quality PSA Oxygen Generator System 7
Feature
1. Exhaust air system:It specially designed exhaust air system can regenerate adsorption drying system and reduce exhaust air deflate sound;

2. Adsorption drying system: It specially designed adsorption drying system can reduce water contamination of compressed air that makes its dew point reach -60℃, this system can help enlarge PSA system service life.



3. WS Series water-gas separator It can remove 99% liquid water in the compressed air, to improve air quality, and reduce the load of subsequent processing work effectively.
4. AO series precision air filter It has high effectiveness in general protection. It removes the dust particles, water mist and oil mist whose size is larger than 1μm, and the residual content of oil mist does not exceed 0.6mg/m3 (21C), 1ppm (w).
5. ACS series activated carbon filter It can remove dust particles, whose size is larger than 0.01μm, oil vapor and odor, and the residual content of oil vapor does not exceed 0.003mg/m3 (21C), 0.003ppm (w).
6. AX series advanced air filter,ltraefficient oil removal filtration. It could remove dust particles, water mist,oil mist whose size is larger than 0.01μm, and the residual content of oil vapor does not exceed 0.001mg/m3(21C)、0.001ppm(w).



Specofocation
Input 380V 50Hz
Power 10Kw
Technology 0.7-0.8Mpa
Compressed air pressure White or Customised
Oxygen output pressure 0.2-0.5Mpa adjustable ( Default 0.4Mpa)
93% Oxygen flow rate 5m³/h (83L/min) when 99.5% port closed
Tip:the oxygen flow   rate is MAX value when another port closed, if 93% and 99.5% ports open together, 93% to 99.5%, change rate is 75%

For example, 1m³93% oxygen can make to 0.75m³99.5% oxygen
Compressed air dew point: -60°C about
Oxygen storage tank capacity: 1m³

More detail

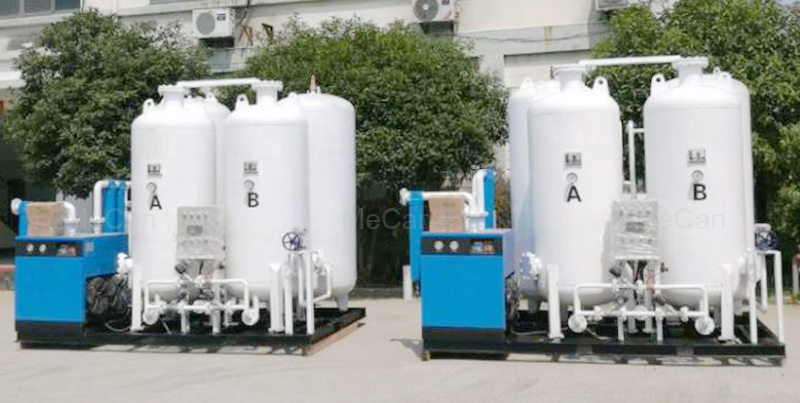

China Medical High Quality PSA Oxygen Generator System 8

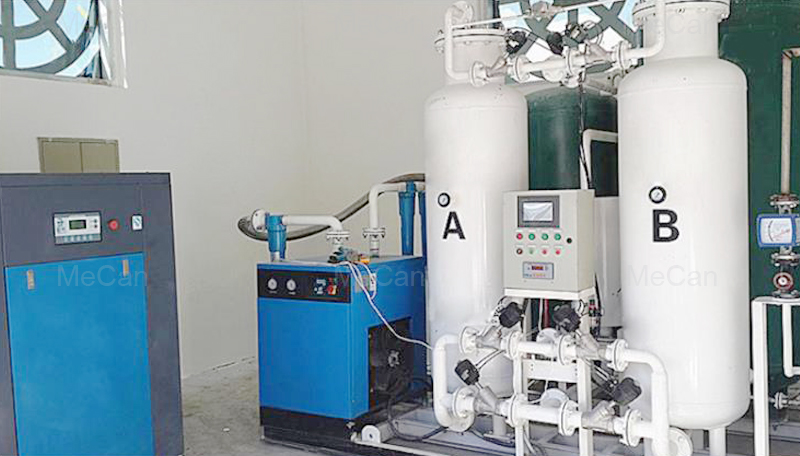

China Medical High Quality PSA Oxygen Generator System 9

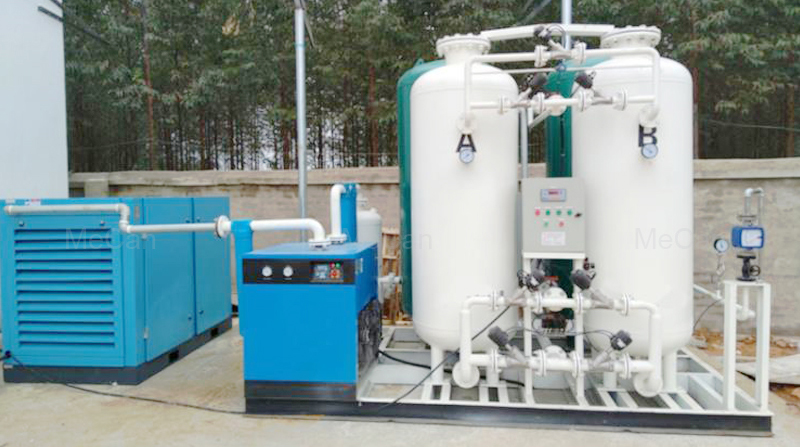

China Medical High Quality PSA Oxygen Generator System 10
China Medical High Quality PSA Oxygen Generator System 11

FAQ

1.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,
or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
3.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.
