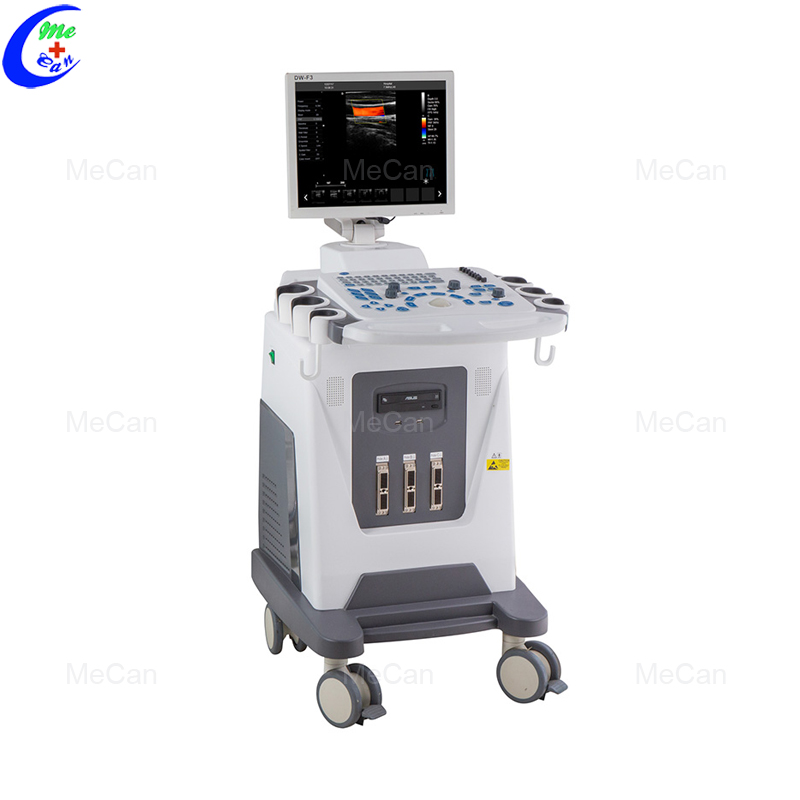

17 Inch LED Medical Display Ultrasound Machine
17 Inch LED Medical Display Ultrasound Machine
Model: MCU-CD026
What is the feature of the ultrasoune machine
1.Ultrasonic host operating system: Windows operating system
2.Applications：Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
3.Probes：Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume probe
4.Applications and report：Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
5.carotid artery intima measurement thickness(IMT）
6.Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted.
7.Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.
What is the specification of the ultrasoune machine
| Item | Value |
| Display | 17 inch LED medical display |
| Probe connector | 3 active |
| Operation interface | English (more languages as option) |
| Display mode | B、B+B、4B、B+M、M、C、PW、B/C、B/C/PW、B/PW |
| Focus | 4 segments |
| Body mark | ≥57 |
| Image processing | Up/Down, Left/Right, Angular variation, Reverse |
| Cine loop | ≥ 600 frames, continuous playback or view one by one |
| Gray scale | 256 levels |
| Blind zone | ≤4m |
| Max display depth | 320mm |
| Geometric accuracy | horizontal ≤ 5%, vertical ≤ 5% |
| Resolution | lateral ≤ 2mm, axial ≤ 1mm |

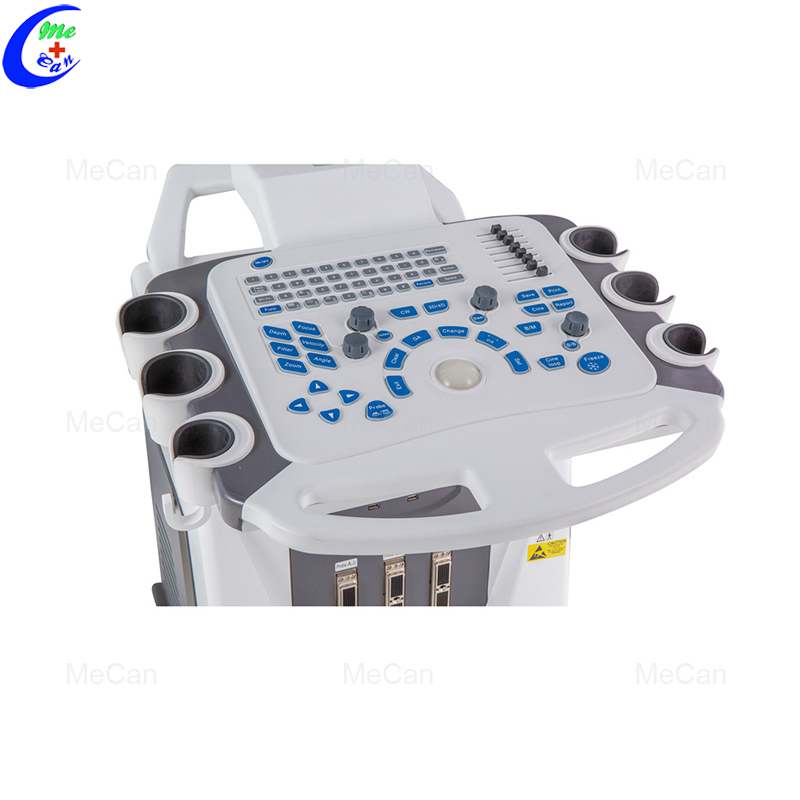

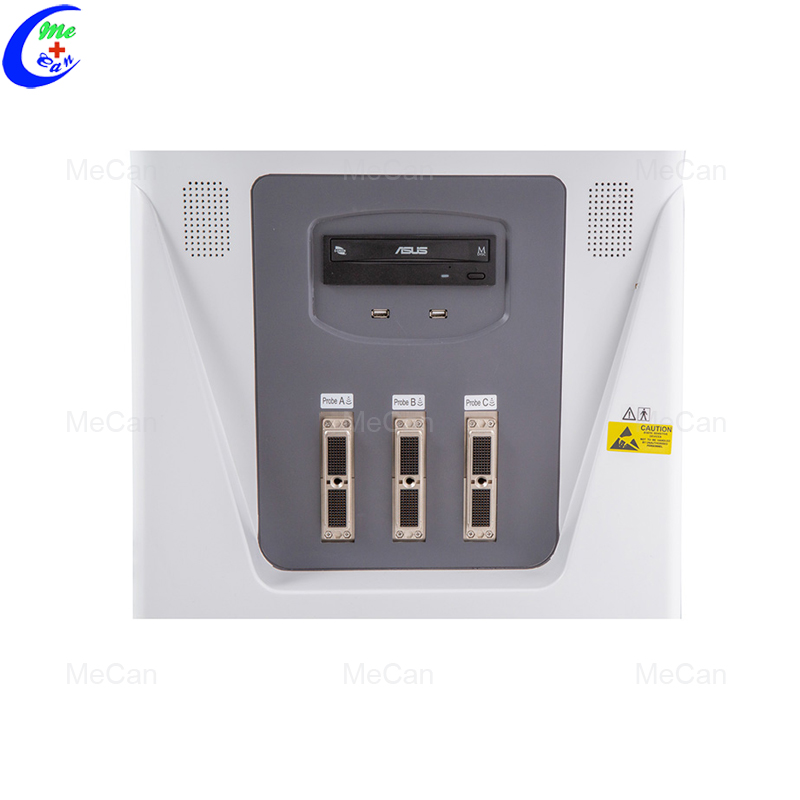

More detail of the ultrasound machine
