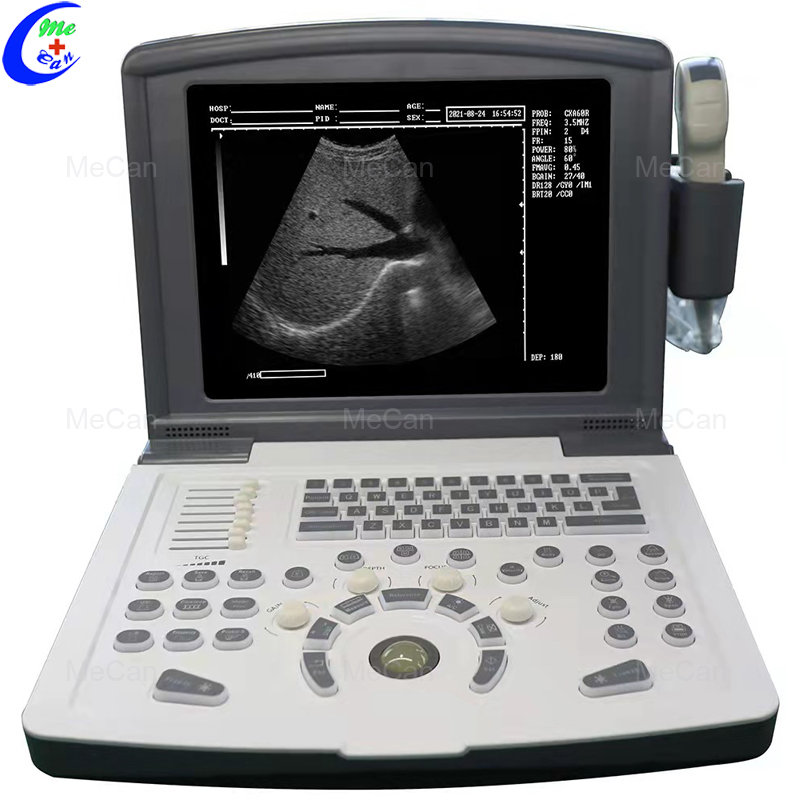

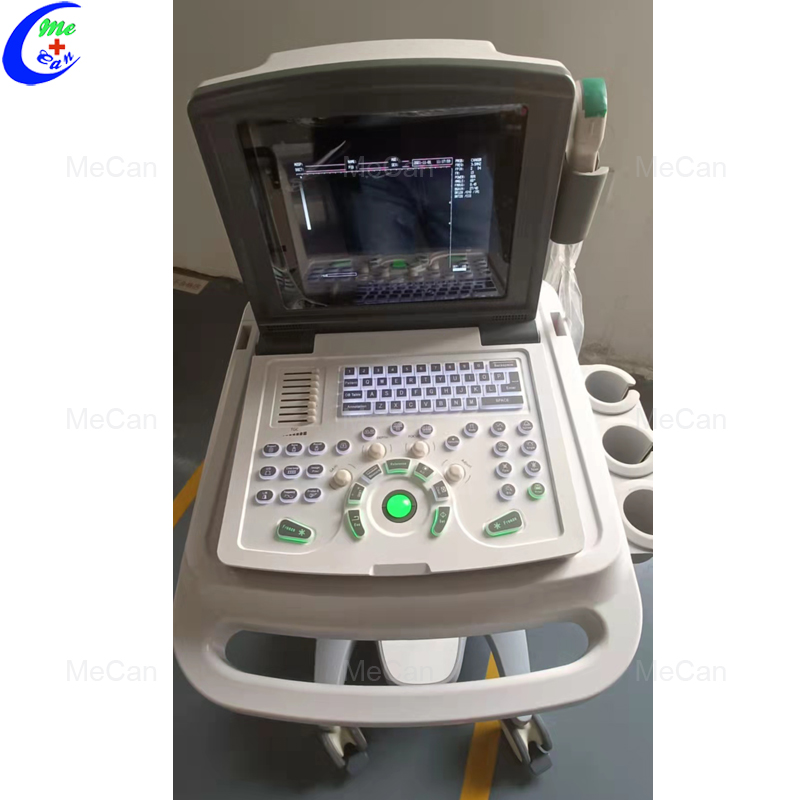

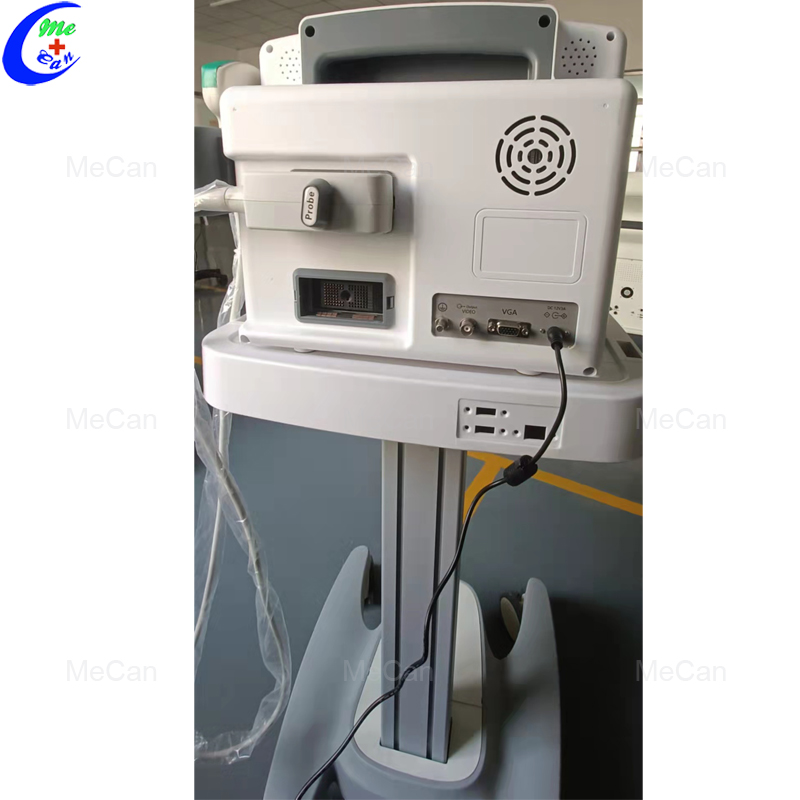

High Quality Full Digital Portable B/W Ultrasound Machine
Standard Configuration:
One Host Machine
One Convex Array Probe
OneProbe Holder
OnePower Adapter
Apecification
Image Storage | 64 Frames |
Display Depth | ≧160 |
Scanning Model | Electronic Linear Array,Electronic Convex Array |
LCD Size | 9.7 Inch |
Gray Scale | 256 Levels |
Image Flip | Up/ Down, Left/ Right, Blake/ White |
Image Processing | Image Smoothing/ Sharpening, TissueHarmonic, Histogram,DR,Gamma Correction,Pseudo-Color |
Measurement | Freehand, Ellips, Distance forPerimeter,Area Volume,Heart,G.A,EDD,BPD-FW, FL, AC, HC, CRL, AD, GS, LMP |
Character Display | Date, Clock, Name, PID, Age, Sex, Hospital Name, Doctor |
Notation | Full-screenCharacterEditor,Body Mark, Position Indication |
Report | Abdomen andgynecology, Cardiac, Obstetrics, Urology |
Display Mode | B,B+B,B+M,M,4B |
Output | VGA and PAL video outputs |
Cine Loop | ≥400 Frames |
Scanning Angle | Adjustable |
Power Consumption MAX | 100VA |
Product Size | 289×304×222mm |
Carton Size | 395×300×410mm |
N.W./ G.W. | 6kg/ 7kg |
ProbeOptional
Probe | C3-1/60R/3.5MHz ConvexProbe | L3-1/7.5MHz LinerProbe | C1-6/20R/5.0MHz MicroConvexProbe | EC1-1/13R/6.5MHz TransvaginalProbe |
| Elements | 80 | 80 | 80 | 80 |
Scan Width | R60 | L40 | R20 | R13 |
| Frequency | 2.0/3.0/3.5/4.0/5.5 MHz | 6.0/ 6.5/ 7.5/ 10/ 12 MHz | 4.5/5.0/5.5 MHz | 5.0/6.0/6.5/7.5/9.0 MHz |
| DisplayDepth | Adjustable | Adjustable | Adjustable | Adjustable |
| Scan Depth (mm) | ≧160 | ≧50 | ≧80 | ≧40 |
| Resolution Lateral | ≦3（depth≦80） ≦4（80＜depth≦130） | ≦2 （depth≦40） | ≦2 （depth≦40 | ≦2 （depth≦30） |
| Resolution Axial | ≦2（depth≦80） ≦3（80＜depth≦130） | ≦1 （depth≦40） | ≦1 （depth≦40） | ≦1 （depth ≦40） |
| BlindArea (mm) | ≦5 | ≦3 | ≦5 | ≦4 |
Geometric Position (%) Horizontal | ≦15 | ≦10 | ≦20 | ≦10 |
Geometric Position (%) Vertical | ≦10 | ≦5 | ≦10 | ≦5 |
Application
FAQ
Advantages
